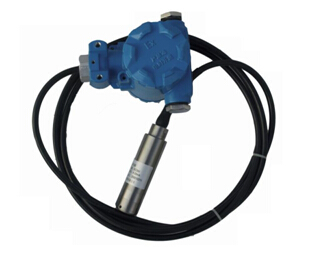

HPT-34 Submersible liquid level pressure transmitter with junction box
| Shipping: | 3-4 working days |
|---|---|
| Payment Terms: | L/C |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Standard export packing |
Quick Details
- Model Number: HPT-34
- Brand Name: Huatian
Specifications
PROFESSIONAL PRESSURE ,LEVEL,TEMPERATURE TRANSMITTER SOLUTION PROVIDER
Instruction:
HPT-34 Submersible Level Transmitters use high performance piezoresistive pressure sensor as sensing elements. It measures liquid static pressure accurately which is positive proportional to liquid depth, transmitting pressure signal into standard current/voltage output signal by amplifier circuit board. The product has high accuracy, compact size and easy operation characteristics, for it can be submersible into the liquid to measure level from transmitter bottom to liquid surface. For the liquid measure and control of petroleum, chemi-industry, power station, city water supply and drainage and hydrology, it is widely used.
Features:
Wide measuring range: 0～1～500m
High precision
Good stability
Wide working temperature: -20～85℃
Strong corrosion resistance
Guide gas calbe transmission
Convenient adjustment of zero point and the full range
Applications:
Water:drinnking water system/ground water level measurement
Level measurement in container
Sewage: water treatment plants/waste water treatment
Water recycling
Fuel storage/ tank farm
| Performance parameters | ||||
| Range(m) | 0~500 | |||
| Pressure type | Gage pressure, absolute pressure | |||
| Output signal | 4～20mA or others | |||
| Accuracy(%FS) | ≤0.1 | ≤0.25 | ≤0.5 | |
| Nonlinearity(%FS) | ≤0.1 | ≤0.25 | ≤0.5 | |
| Hysteresis (%FS) | ≤0.1 | ≤0.25 | ≤0.5 | |
| Repeatability(%FS) | ≤0.1 | ≤0.25 | ≤0.5 | |
| Zero drift(%FS/℃) | ≤0.02 | |||
| Full scale drift (%FS) | ≤0.02 | |||
| Stability(%FS/Year) | ≤0.25 | |||
| Working voltage(V) | 12~36V DC(Standard: 24V) | |||
| Working temperature(℃) | -20~85℃ | |||
| Overload capacity(%) | >200 | |||
| Life span | more than 9 million times pressure cycle | |||
| Load resistance(Ω) | 750 | |||
| Response time (ms) | ≤1 | |||
| Media | Media compatible with 316L and gas guide cable | |||
| Diaphragm material | 316L or The ceramic diaphragm | |||
| Housing material | cast aluminum | |||
| Protection grade | IP68 | |||
| Weight | 1100g | |||
