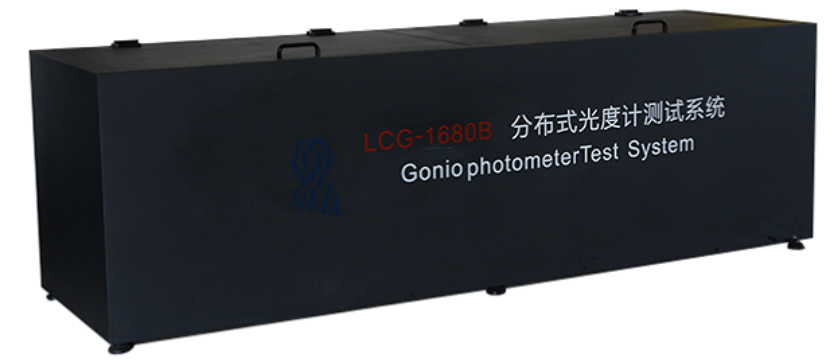

1680A 1680B Goniophotometer Test System for LED Lamp

FOB Price:	12,000.00 - 18,000.00 USD/Set
Supply Ability:	50 Set/Sets per Month
Shipping:	within 7 days receipt payment
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Standard pcaking

Quick Details

Usage: led lighting tester
Power: Electronic
Model Number: LCG-1680A/B
Brand Name: CX
Items Name: Goniophotometer test system
Max size of luminaries: 1300mm
Max weight of light: 50KG

Specifications

1680A 1680B Goniophotometer Test System for LED Lamp

1.Applications:

Design according to IEC61341, the test method of central luminous intensity and beam angle for reflecting light, this instrument can be used to test the cross section luminous intensity distribution curve, central luminous intensity and effective beam angle of LED assembled luminaries and LED lens system with diameter less than 180mm.

2.Features

a) Meets the requirements of China & IEC standards;

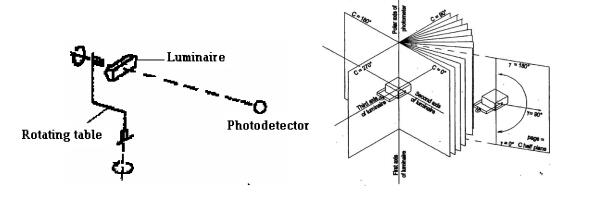

b) The system can be measurement by C-γ coordinates;

c) Measured data match international standard form and can be applied for lighting design by other lighting design software;

d) RS-232C interface, compatible with all kinds of computers; meet the international standard;

3.Technical indicators

Test box:2m;

Max test size:180mm,5Kg;

Horizontal axis:-180°~180° ;

Vertical axis:-90°~90°;

Angle accuracy: 0.02^o;

Measuring range:0.001lx-10000lx;
