Hebei I.T. (Shanghai) Co., Ltd.

China Manufacturer with main products: LED Diode, Peltier, Cooling Module, LED Holder
Home  >Products Catalog > Peltier/Cooling Module > 40*20mm Cooling Peltier Module TEC1-06315

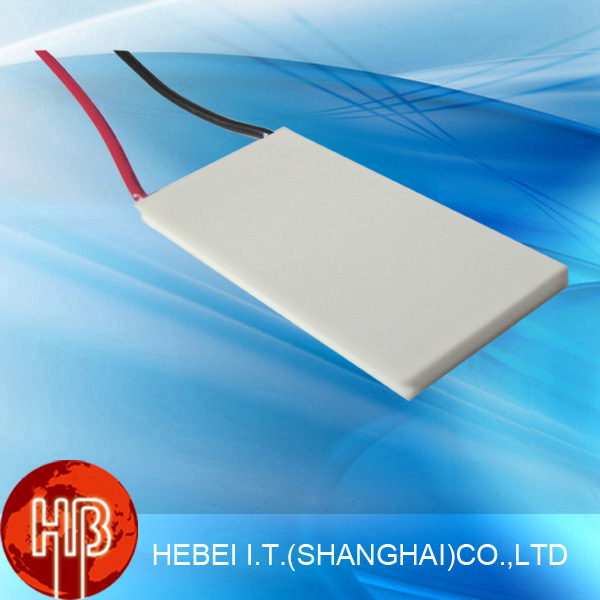

40*20mm Cooling Peltier Module TEC1-06315

FOB Price: 3.37 - 5.19 USD/Piece
Supply Ability: 1,000 Piece/Pieces per Week
Shipping: Within 1-2 week; Send by UPS/DHL/TNT/FEDEX
Payment Terms: T/T, Western Union, Other, PAYPAL; 2Checkout
In Stock
Inquiry Now Start Safebuy Order

  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Follow ECVV to get products trends and industry news
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shanghai in China
Packaging Details: export carton

Quick Details

  • Model Number: TEC1-06315
  • Brand Name: HB
  • Product Series: Peltier Cooling Module

Specifications

40*20mm Cooling Peltier Module TEC1-06315

Cooling Peltier Module TEC1-06315
1.Size: 40x20x3mm (WxDxH)
2.Vmax:7.5VDC, Imax:12+-0.5A(6VCD)
3.Qcmax:65W
4.Couples:63

Peltier Thermoelectric Cooling Modules
S = Silicon Sealed, HT = Max. Working temperature 225°C (non-HT types 138°C)
Size 15x15x3.5mm (WxDxH), weight 6g
Imax 8.5A, Umax 2.0V, R = 0.21 ohm, 17 couples
TEC1-01708 ΔT max. = 68°C, Qmax (ΔT =0) 9.5W
TEC1-01708S ΔT max. = 67°C, Qmax (ΔT =0) 9.5W
Size 20x20x3.5mm (WxDxH), weight 8g
Imax 8.5A, Umax 3.7V, R = 0.40 ohm, 31 couples
TEC1-03108 ΔT max. = 68°C, Qmax (ΔT =0) 17.6W
Size 25x25x3.5mm (WxDxH), weight 11g
Imax 8.5A, Umax 5.9V, R = 0.57 ohm, 49 couples
TEC1-04908 ΔT max. = 68°C, Qmax (ΔT =0) 27.4W
Size 30x30x4.7mm (WxDxH), weight 14g
Imax 3.3A, Umax 8.5V, R = 1.94 ohm, 71 couples
TEC1-07103 ΔT max. = 68°C, Qmax (ΔT =0) 18.0W
TEC1-07103HTS ΔT max. = 67°C, Qmax (ΔT =0) 18.0W
Size 30x30x3.5mm (WxDxH), weight 17g
Imax 8.5A, Umax 8.5V, R = 0.85 ohm, 71 couples
TEC1-07108 ΔT max. = 68°C, Qmax (ΔT =0) 40.0W
TEC1-07108S ΔT max. = 67°C, Qmax (ΔT =0) 40.0W
TEC1-07108HT ΔT max. = 68°C, Qmax (ΔT =0) 40.0W
Size 30x30x3.3mm (WxDxH), weight 14g
Imax 3.2A, Umax 15.4V, R = 3.85 ohm, 127 couples
TES1-12703 ΔT max. = 68°C, Qmax (ΔT =0) 30.0W
TES1-12703S ΔT max. = 67°C, Qmax (ΔT =0) 30.0W
Size 30x30x3.3mm (WxDxH), weight 16g
Imax 4.3A, Umax 15.4V, R = 3.10 ohm, 127 couples
TES1-12704 ΔT max. = 68°C, Qmax (ΔT =0) 40.0W
TES1-12704S ΔT max. = 67°C, Qmax (ΔT =0) 40.0W
Size 40x40x4.7mm (WxDxH), weight 31g
Imax 3.3A, Umax 15.4V, R = 3.42 ohm, 127 couples
TEC1-12703 ΔT max. = 68°C, Qmax (ΔT =0) 38.0W
TEC1-12703S ΔT max. = 67°C, Qmax (ΔT =0) 38.0W
TEC1-12703HT ΔT max. = 68°C, Qmax (ΔT =0) 38.0W
TEC1-12703HTS ΔT max. = 67°C, Qmax (ΔT =0) 38.0W
Size 40x40x4.7mm (WxDxH), weight 31g
Imax 4A, Umax 15.4V, R = 2.85-3.15 ohm, 127 couples
TEC1-12704 ΔT max. ≥ 66°C, Qmax (ΔT =0) 33.4W
Size 40x40x4.0mm (WxDxH), weight 29g
Imax 5.3A, Umax 15.4V, R = 2.20 ohm, 127 couples
TEC1-12705 ΔT max. = 68°C, Qmax (ΔT =0) 57.0W
TEC1-12705S ΔT max. = 67°C, Qmax (ΔT =0) 57.0W
TEC1-12705HT ΔT max. = 68°C, Qmax (ΔT =0) 57.0W
Size 40x40x3.9mm (WxDxH), weight 27g
Imax 6.4A, Umax 15.4V, R = 1.98 ohm, 127 couples
TEC1-12706 ΔT max. = 68°C, Qmax (ΔT =0) 63.0W
TEC1-12706S ΔT max. = 67°C, Qmax (ΔT =0) 57.0W
TEC1-12706HTS ΔT max. = 67°C, Qmax (ΔT =0) 57.0W
Size 40x40x3.5mm (WxDxH), weight 25g
Imax 7.4A, Umax 15.4V, R = 1.80 ohm, 127 couples
TEC1-12707 ΔT max. = 68°C, Qmax (ΔT =0) 75.0W
TEC1-12707HT ΔT max. = 68°C, Qmax (ΔT =0) 75.0W
TEC1-12707HTS ΔT max. = 66°C, Qmax (ΔT =0) 75.5W
Size 40x40x3.5mm (WxDxH), weight 23g
Imax 8.5A, Umax 15.4V, R = 1.55 ohm, 127 couples
TEC1-12708 ΔT max. = 68°C, Qmax (ΔT =0) 85.0W
TEC1-12708S ΔT max. = 67°C, Qmax (ΔT =0) 85.5W
TEC1-12708HTS ΔT max. = 66°C, Qmax (ΔT =0) 85.0W
Size 40x40x3.3mm (WxDxH), weight 26g
Imax 10.5A, Umax 15.4V, R = 1.08 ohm, 127 couples
TEC1-12710 ΔT max. = 68°C, Qmax (ΔT =0) 100.0W
TEC1-12710S ΔT max. = 67°C, Qmax (ΔT =0) 100.0W
TEC1-12710HT ΔT max. = 67°C, Qmax (ΔT =0) 100.0W
TEC1-12710HTS ΔT max. = 66°C, Qmax (ΔT =0) 100.0W
Size 50x50x3.9mm (WxDxH), weight 50g (Jumbo Junior)
Imax 15.6A, Umax 15.4V, R = 0.80 ohm, 127 couples
TEC1-12715 ΔT max. = 68°C, Qmax (ΔT =0) 150 W
TEC1-12715S ΔT max. = 67°C, Qmax (ΔT =0) 150 W
TEC1-12715HT ΔT max. = 68°C, Qmax (ΔT =0) 150 W
TEC1-12715HTS ΔT max. = 67°C, Qmax (ΔT =0) 150 W
Size 50x50x3.1mm (WxDxH), weight 65g (Jumbo Junior)
Imax 16.0A, Umax 31.5V, R = 1.60 ohm, 263 couples
TEC1-26316 ΔT max. = 66°C, Qmax (ΔT =0) 300 W
Size 62x62x3.9mm (WxDxH), weight 90g (Jumbo)
Imax 30.7A, Umax 15.4V, R = 0.35 ohm, 127 couples
TEC1-12730 ΔT max. = 68°C, Qmax (ΔT =0) 350 W
TEC1-12730S ΔT max. = 67°C, Qmax (ΔT =0) 350 W
TEC1-12730HT ΔT max. = 66°C, Qmax (ΔT =0) 350 W
TEC1-12730HTS ΔT max. = 65°C, Qmax (ΔT =0) 350 W
Size 40x20x3.9mm (WxDxH), weight 17g
TEC1-06306 ΔT max. ≥ 63°C, Qmax (ΔT =0) 42W
Imax 6A, Umax 7.6V, R = 0.95-1.05 ohm, 63 couples
Size 40x20x3.9mm (WxDxH), weight 17g
TEC1-06308 ΔT max. ≥ 63°C, Qmax (ΔT =0) 32W
Imax 8.5A, Umax 7.6V, R = 0.65-0.75 ohm, 63 couples
Size 40x20x3.3mm (WxDxH), weight 17g
TEC1-06310 ΔT max. ≥ 63°C, Qmax (ΔT =0) 45W
Imax 7.5A, Umax 7.5V, R = 0.55-0.65 ohm, 63 couples
Size 40x20x3.1mm (WxDxH), weight 17g
TEC1-06312 ΔT max. ≥ 63°C, Qmax (ΔT =0) 55W
Imax 9.5A, Umax 7.5V, R = 0.45-0.55 ohm, 63 couples
Size 40x20x3.1mm (WxDxH), weight 17g
TEC1-06315 ΔT max. ≥ 63°C, Qmax (ΔT =0) 65W
Imax 12.5A, Umax 7.6V, R = 0.3-0.4 ohm, 63 couples
Number explantion: TEx1-yyyzz
x = Area of section of N/P (C = >1mm2, S = <1mm2)
yyy = No. of couples
zz = max. current (A)
For high temperature module (225°C) add "HT", for sealed module add "S".
