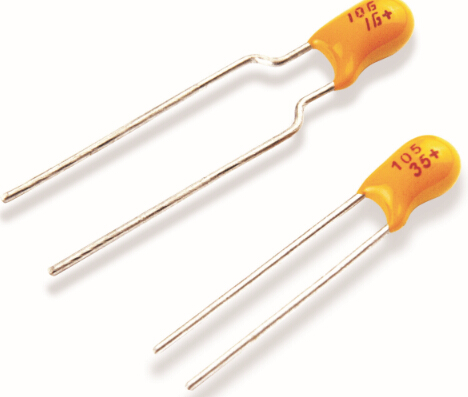

Dip tantalum capacitors radial lead

Payment Terms:	T/T

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Fan Capacitors

Price:

Min. Order:
5.5V 0.47F Super Capacitor

Price:

Min. Order:
Kt Kingtronics Radial Aluminum Electrolytic Cap...

Price:1.00-10.00 USD/Piece

Min. Order:1,000 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Specifications

General Characteristics

◆  Operating temperature: -55 ~125℃
◆  Capacitance Tolerance:±20% ,±10%,±5%(Special Order).
◆  Capacitance Range: 0.1μF～330μF
◆  DC leakage current(20℃) I₀≤0.02C_RU_Ror 1μA (whichever is greater).
◆  Dissipation factor(20℃)See table 1
◆  Temperature performance: see table 1.
◆  Climatic category: 55/125/10.
◆  Life test: 1000 hours.

Table 1

Capacitance(μF)	Capacitance Change(%)			Max D.F(%)				Max DCL(μA)
Capacitance(μF)	-55℃	+85℃	+125℃	-55℃	+20℃	+85℃	+125℃	+85℃	+125℃
≤1.0	±10	±15	±25	6	4	6	6	10 I₀	12.5 I₀
1.5~6.8				8	6	8	8
10~68				10	8	10	10
100~330				12	10	12	12
