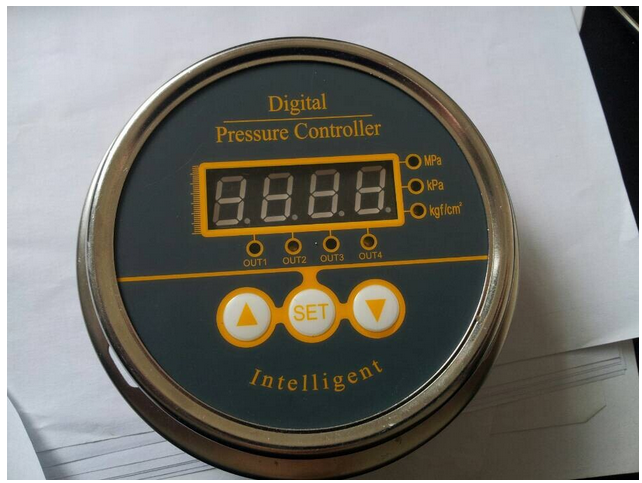

HPC-2000 Four Relays Digital Pressure Controller
| Shipping: | 3-4 working days by courier |
|---|---|
| Payment Terms: | L/C, D/A, T/T, Other, paypal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Standard exported packing |
Quick Details
- Model Number: HPC-2000
- Brand Name: Huatian
Specifications
Instruction:
HPC-2000 is the intelligent display pressure controller combining with pressure measure, display and control together. The product is full electronics construction. The front part uses piezoresistive pressure sensorwith isolated diaphragm as the sensing element, sensor output signal is amplified by high accurate and lowtemperature drift circuit, transferring into A/D convertor and transforming into digital signal. The processedsignal controls two relays and then measure and monitor pressure. The product is used flexibly and easilycalibrated, can be used for pressure measure, display and control for power station, tap water, petroleum, chemi-industry, engineer and liquid pressure, etc.
Features:
4 relays/PNP/Analog signal/RS485 optional
Φ60 orΦ100 dial diameter optional
Easy setup menu, can achieve a variety of
functions
High sensitivity, high precision
Applications:
Hydraulic/Pneumatic Control Systems
Energy and Water Management
Automation equipment
Chemical
Performance parameters:
Range
KPa
0～5, 100, 500, 800, 1000
MPa
0～2, 10, 60, 120
Pressure type
Gauge , Absolute
Output Signal
Relay, MODBUS,
Analog,Digital output optional
Display
4-digtial LCD
Accuracy
0.25
0.5
Nonlinearity(%FS)
＜0.2
＜0.5
Hysteresis(%FS)
＜0.2
＜0.5
Repeatability(%FS)
＜0.2
＜0.5
Zero Drift(%FS)
＜0.1
＜0.2
Temp Drift (%FS)
＜0.02
＜0.25
Working voltage(V)
12-30VDC
Working Temp.(℃)
-20～85℃
Overload(%)
200
Life span
more than 9 million times pressure cycle
Load resistance (Ω)
＜750
Response time(ms)
＜0.1
Media
Media compatible with 316L
Diaphragm material
316L or the ceramic diaphragm
Housing material
SUS304 or 316L
Thread connection
M20*1.5 or others
Protection grade
IP65
