Home >Products Catalog > Electric Safety Tester > High Accuracy Mini Handheld Push Pull Force Gauge Dynamometer

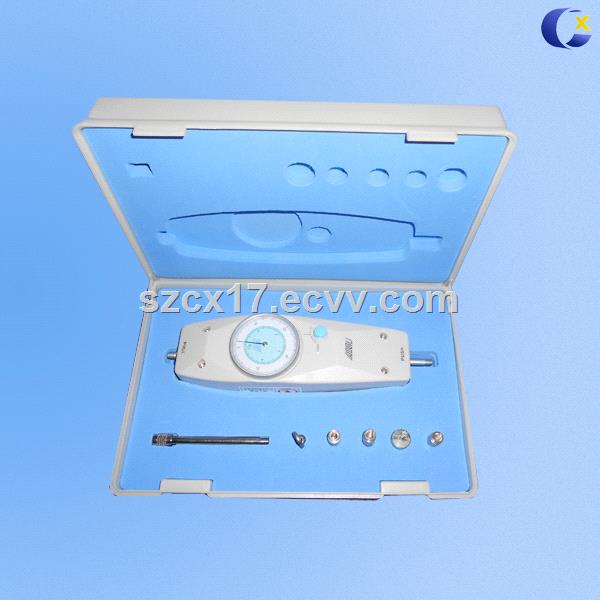

High Accuracy Mini Handheld Push Pull Force Gauge Dynamometer

Supply Ability:	1,000 Piece/Pieces per Month
Shipping:	within 3 days
Payment Terms:	T/T, Western Union

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	standard packing

Quick Details

Power: Electronic
Model Number: CX-2B
Brand Name: CX
Items Name: Push Pull Force Gauge
Capacity (N): 0-500N
Warranty: 1 year
Contact Skype: bellacxyq

Specifications

High Accuracy NK-10 Mini Handheld dynamometer

Features & Functions

*This push pull force gauge Easy to be operated and can be installed with all kinds of test stands and clamps.

*Peak holding function and continuous.

*One year free maintenance.

*Compact and artistic packing, easy to transit and stock.

*Two kind of unit dual show at the same time,

*don't need unit conversion.

*NK Series: Newton and Kilogram dual unit;

*NLB Series: Newton and Pound dual unit;

*ALB: Pound and Kilogram dual unit.

*Needle indicates, easy to read, high accuracy.

push pull force gauge Specification

Part No.

NK-10

NK-20

NK-30

NK-50

NK-100

NK-200

NK-300

NK-500

NLB-10

NLB-20

NLB-30

NLB-50

Capacity (N)

10

20

30

50

100

200

300

500

10

20

30

50

Resolution(N)

0.05

0.1

0.2

0.25

0.5

1.0

2.0

2.5

0.05

0.1

0.2

0.25

Travel

10mm

Dimension

260*66*36mm

Part No.

NLB-100

NLB-200

NLB-300

NLB-500

ALB-2

ALB-4

ALB-10

ALB-20

ALB-40

ALB-100

Capacity

100N

200N

300N

500N

2.2lb

4.5lb

11lb

22lb

45lb

110lb

Resolution

0.5N

1.0N

2.0N

2.5NB

0.01lb

0.02lb

0.05lb

0.1lb

0.2lb

0.5lb

Travel

10mm

Dimension

260*66*36mm
