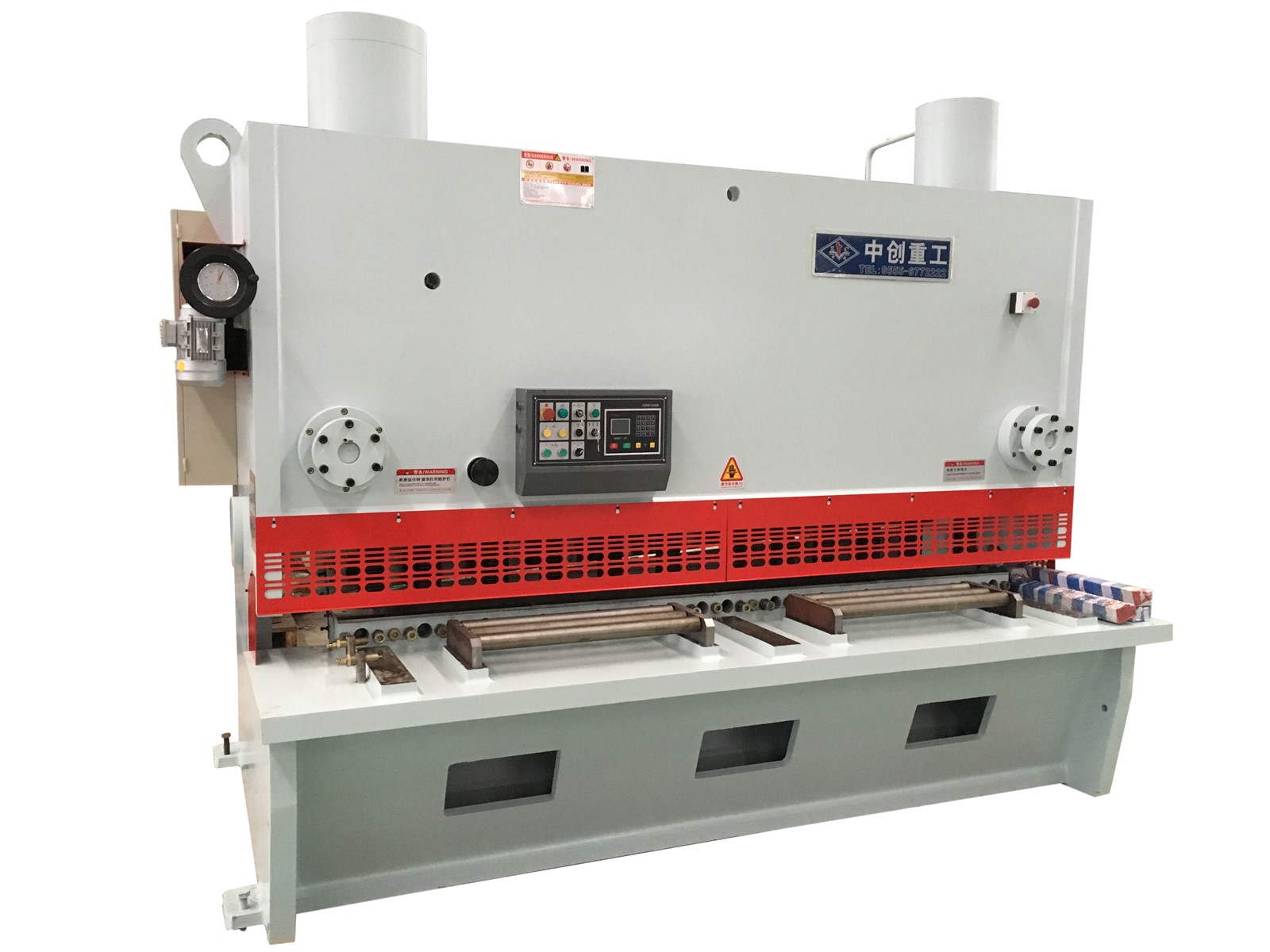

Metal sheet hydraulic shearing guillotine plate 10x2500 series shearing machine
| FOB Price: | 4,000.00 - 10,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set/Sets per Month |
| Shipping: | Shanghai within 10 days after the deposit |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Anhui in China |
| Packaging Details: | Seaworthy packaging, wooden case packing optional |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 2 years
- Certification: CE
- Weight: depends
- Dimension(L*W*H): depends
- Rated Power: 18.5kw
- Voltage: 380V 220V Optional
- Model Number: qc11k
- Brand Name: zczg
- Condition: New
Specifications
Introduction to the structure and properties of guillotine shearing machine:
■ This machine adopts steel plate welding structure ,the fuselage using the finite element analysis and design, Vibratory Stress Relief of internal stress, have high strength and good durability.
■ As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed. Shearing in sections (adjust the time displayed on liquid crystal), shadow-line cutting.
■ This machine belongs to second generation of hydraulic shear, with advanced integrated hydraulic system with an excellent reliability and easy for maintenance
■ The parallelism of the sheet to be cut off and the precision of the shear size can be ensured. The cut stroke and cut times also can be controlled.
■ The cutting times of this machining tool is displayed on a digital displayer, and the stroke of top blades is steplessly adjustable.
■ The adjustment of the gap between tools can be showed on an indicating dial.
■ Side and rear fence guard and electrical interlocking to keep operator in safety.
■ CNC system & position coder from a closed loop control system with great speed & high accuracy
■ Adopt handwheel to rapidly and accurately adjust the blade clearance
■ The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality.
■ European key electrics and Hydraulic Valves Advanced integral hydraulic system with good reliablity-Imported from Germany.
■ Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal.
■ Blades clearance, cutting angle and cutting length are automatically calculated and controlled by CNC
■ Light alignment device eases drawing line for cutting, Standard front support sheet frame,A set of standard blades
■ This forging machine is ideally suited for your metal machining requirements
■ X axis (back gauge) and Y axis (shear stroke) and blade clearance are controlled by DAC310 which ensures a higher cutting accuracy
■ Rolling plate-support of the machine, this can reduce the hurt of the plates and reduce the conflict force.
