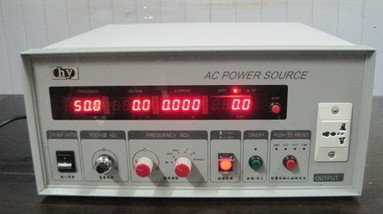

1KA 2KVA 3KVA 5KV Avariable Frequency AC power supply power source
| FOB Price: | 1.00 - 2,000.00 USD/Set |
|---|---|
| Supply Ability: | 1,000 Set/Sets per Month |
| Shipping: | within 7 days receipt payment |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | standard packing |
Quick Details
- Usage: frequency power supply
- Power: Electronic
- Model Number: CX- 9000
- Brand Name: CX
- Items Name: Avariable frequency power supply
- Warranty: 1 year
- Frequency: 47Hz - 63Hz
Specifications
1KA 2KVA 3KVA 5KV Avariable Frequency AC power supply power source
Detail Description:
CX-9000 Series AC Power source
Main technical specifications:
|
Model |
9000 |
9001 |
9002 |
5005 |
6010 |
6015 |
6020 |
6030 |
6050 |
6100 |
6150 |
||||||||||||||||
|
Power |
500VA |
1KVA |
3KVA |
5KVA |
10KVA |
15KVA |
20KVA |
30KVA |
50KVA |
100KVA |
150KVA |
||||||||||||||||
|
Working |
SPWM ( sinusoidal pulse width modulation ) |
||||||||||||||||||||||||||
|
Input |
|||||||||||||||||||||||||||
|
Phase |
1φ2W
|
3φ4W
|
|||||||||||||||||||||||||
|
Voltage |
220V ± 10% |
380V ± 10% |
|||||||||||||||||||||||||
|
Frequency |
47Hz - 63Hz |
||||||||||||||||||||||||||
|
Output |
|||||||||||||||||||||||||||
|
Phase |
1φ2W
|
||||||||||||||||||||||||||
|
Voltage |
Low = 0-144VAC High = 0-288VAC |
Low = 50-144VAC High = 100-288VAC |
|||||||||||||||||||||||||
|
Frequency |
47-63Hz , 50Hz , 60Hz ( 2F , 4F , 400Hz optional) |
||||||||||||||||||||||||||
|
Maximum current |
L = 120V |
4.2A |
8.4A |
25A |
42A |
84A |
125A |
168A |
250A |
420A |
840A |
1250A |
|||||||||||||||
|
H = 240V |
2.1A |
4.2A |
12.5A |
21A |
42A |
62.5A |
84A |
125A |
210A |
420A |
625A |
||||||||||||||||
|
Load Regulation |
1% |
||||||||||||||||||||||||||
|
T.H.D |
1% |
||||||||||||||||||||||||||
|
Frequency Regulation |
0.01% |
||||||||||||||||||||||||||
|
LED Display |
Vrms,Arms,Fre,Wattage |
||||||||||||||||||||||||||
|
Voltage Resolution |
0.1V |
||||||||||||||||||||||||||
|
Frequency Resolution |
0.1Hz |
||||||||||||||||||||||||||
|
Currentcurrent resolution |
0.001A |
0.01A |
0.1A |
1A |
|||||||||||||||||||||||
|
Protection |
Over Current, Over Temp, Over load, Short circuit |
||||||||||||||||||||||||||
|
Weight (Kg) |
15 |
20 |
30 |
50 |
80 |
120 |
150 |
250 |
400 |
600 |
800 |
||||||||||||||||
|
Volume of the W x H x D (mm) |
430 × 133 × 370 |
430 × 222 × 540 |
430 × 445 × 550 |
430 × 667 × 550 |
610 × 930 × 1050 |
700 × 1200 × 1400 |
|||||||||||||||||||||
|
Operating environment |
0-40 °C 20-80% RH |
||||||||||||||||||||||||||
