Home  >Products Catalog > EMV vending machine motor card reader

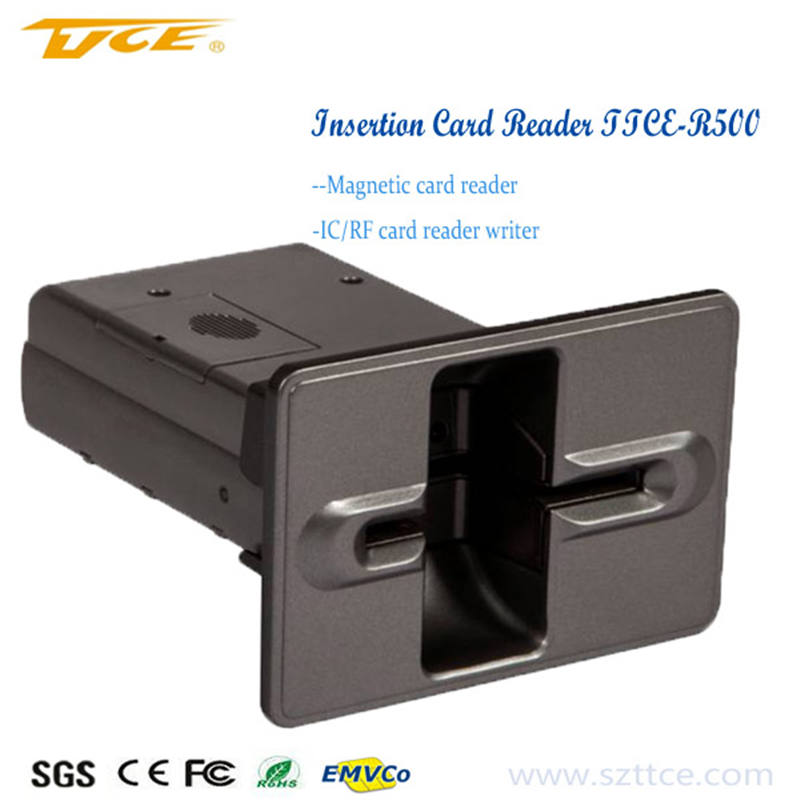

EMV vending machine motor card reader

Supply Ability: 6,000 Piece/Pieces per Month
Shipping: 3-5 working days within 500pcs
Payment Terms: T/T, Western Union

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: 1.5kg /carton

Quick Details

  • Model Number: TTCE-R500
  • Brand Name: TTCE
  • Interface: USB /RS232 option
  • Mag head life: 800,000 passes
  • IC life: 500,1000passes
  • Card material: Paper card or polyester card
  • Power supply: 5VDC _24VDC(Max current100mA,Static current 30mA)
  • Size: 111.04*61.29*

Specifications

Features:


1. IC/RF card read/write ,magnetic card reader
2. Auto lock structure

3.Dusty proof cover design, obviate eyewinkers and broken card
4. Manual /auto card ejection
5. Long life with landing contact
6. Diversified bezels ,bracket
7. Provide custom-made service

Application:


1. Multimedia kiosk

2. Multimedia kiosk

3.Access control system

4.Vending machine

5.Gaming machine

6.Refueling terminal





Functions:



(1) With power indication light and signal indication light.

(2) Smooth card guide devise:, reliable, precise, steady

(3)Read/write card type:

        Contact IC:SLE4442/SLE4428,AT45041,AT1604,AT102,CPU

        SAM,AT24Cxx (Example:AT24C01A/02/04/08/16/32/64 etc.);

 Contactless IC card:comply with ISO14443 TYPE A standard;

 Magcard:Comply with ISO7811 standard(read only)

 (4) Dual card slot design: Mutual authentication between CPU card and

 SAM card,to ensure the human, card, device and application system

 validity of the user.

 (5) RS232 /USB for optional







Item

Contents

Power supply

5VDC _24VDC(Max current100mA,Static current 30mA)

Magnetic card

Accordance with ISO7810  7811 standard card

IC card

EMV,7816

RF card

S50,S70,ID card

Operation temperature

-20 ℃ to 85 ℃

Operation Humidity

30-90%

Interface

USB /RS232 option

Mag head life

800,000 passes

IC life

500,1000passes

RFID life

500,1000passes

Insertion position

Fix position

Operation condition

Installed in the operation cabinet

Card

Wide : 54 ± 0.5 mm Length : 85 ± 0.5 mm  thickness:0.7-1.2mm

Card Material:Paper card or polyester card

 N/W

200g
