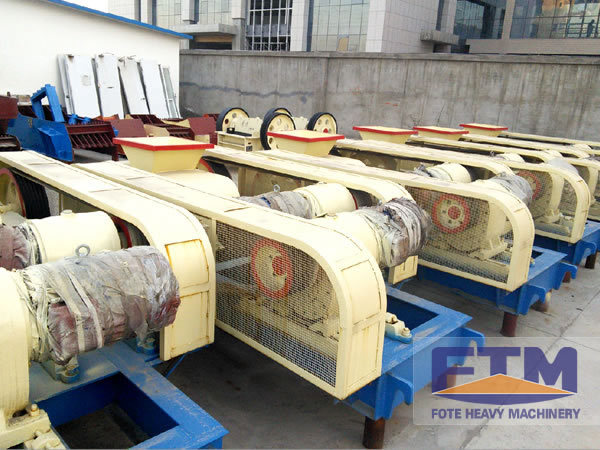

Double Roll Crusher China/Double Roll Coal Crusher

Supply Ability:	1,000 Set/Sets per Year
Shipping:	within 15 working days after received your down payment
Payment Terms:	L/C, T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	standard container, in bulk or as the client's request

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: ISO, CE
Weight: refer to specification
Dimension(L*W*H): refer to specification
Model Number: 2PG series
Brand Name: FTM
Capacity(t/h): 5-110t/h
Power(W): refer to specification
Motor Type: AC Motor
Application: crushing medium hard materials
Type: Roller Crusher
Condition: New

Specifications

Roll crusher is also called roller crusher and smooth roll crusher. It is suitable for crushing medium hard materials in cement industry, chemical industry, electric power, metallurgy, building materials industry, refractory materials industry and other industries to crush slag, coke, coal and other materials. The feeding granularity of this machine is big and the discharging granularity is adjustable, and the compression strength of the materials to be crushed should be below 160 MPa. It has characteristics of reliable performance, low repair cost, less dust and low noise. The common types of roll crushers are double roll crusher and toothed roll crusher.

Note about Double Roll Crusher China/Double Roll Coal Crusher:

1. roll crusher crushing viscous materials prone to clogging space in dealing with blockage should stop treatment, can not be stabbed mine in operation.

2. material double roll crusher gear when handling large chunk containing, pay attention to chunks of ore easily squeezed out from the broken space, to prevent injuries or damage to equipment.

3. roll crusher after running a long time, due to the larger roll surface wear, will cause the product size too small, then pay attention to adjust the port of discharge or overhaul of equipment.

4. Double Roll Crusher China/Double Roll Coal Crusher confidential strengthen work to iron ore. Non-broken (solder prime matter) would fall between the double roll crusher damage, resulting in parking accident. So before removing iron crusher should be installed.

5. roll crusher to strengthen inspection of double roll crusher equipment for lubrication equipment to refuel on time, maintain good equipment lubrication. Suitable for crushing, breaking or crushing medium hard materials as coal, limestone, cement clinker and feldspar.

Relying on absorbing world leading crushing and powder processing technology, advanced management and quality control system, as well as our full efforts, Henan Fote Heavy Machinery Co., Ltd. has been the professional mining machinery manufacturer and supplier. Fote Machinery is specialized in the research, development, and production of jaw crusher, impact crusher, cone crusher, roller crusher, ball mill, rotary dryer and so on. Welcome to contact or visit.

Parameter of Double Roll Crusher China/Double Roll Coal Crusher

Model	2PG0425	2PG0640	2PG0740	2PG0850	2PG1060	2PG1260	2PG1560
Roller Diameter(mm)	Ф400	Ф610	Ф700	Ф800	Ф1000	Ф1200	Ф1500
Roller Width(mm)	250	400	400	500	600	600	600
Feeding Size(mm)	≤25	≤25	≤25	≤25	≤30	≤30	≤30
Discharging Size(mm)	2-8	2-8	2-8	2-8	2-10	2-10	2-10
Production Capacity(t/h)	5-10	10-20	15-30	20-40	30-50	40-70	60-110
Motor Type	Y132M-6	Y180L-6	Y200L-4	Y225M-4	Y250M-4	Y315M-6	Y315L-6
Motor Power(kw)	5.5-2	15*2	30*2	45*2	55*2	75*2	110*2
