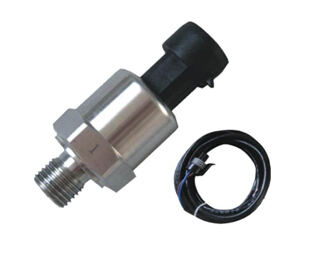

4-20ma pressure sensor,0.5-4.5V pressure transmitter ,0-5v pressure transmitter for air

Shipping:	2-3 working days
Payment Terms:	L/C, T/T, Other, paypal

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	stardand exported packaging

Quick Details

Model Number: HPT-12
Brand Name: Huatian

Specifications

PROFESSIONAL PRESSURE ,LEVEL,TEMPERATURE TRANSMITTER SOLUTION PROVIDER

Instruction:

HPT-12 series pressure sensor/transmitter applied in the refrigeration & compressor industry adopts the ceramic piezoresistive technology and the advanced circuit design to avoid influences on the product caused by the temperature, humidity, mechanical fatigue and medium, thus to improve its permanent stability in the industrial environment.

This product adopts high quality stainless steel structure, pressure core body and sensor chips are imported fromGermany.

Features:

Specifically for the mass application of special customization
Small outline,easy installation
The original German imports of core body
Specifically for the circuit design of air compressor applications
Strong applicability

Applications:

Air compressor
Hydraulic pressure system,Pneumatic system
Oil pressure
Automation equipment
Industrial process control

Sensor Type	Ceramic sensor	Operable Temp.(℃)	-20~125℃
Wetted parts	316L Stainless steel	Compensation Temp(℃)	-20~85℃
Housing	304 Stainless steel	Storage Temp(℃)	-40℃…125℃
Sealing method	O-ring	Long term stability	±0.10%FS(annual)
Power supply	12-36V DC(24V standard)	Zero error(%FS)	±0.5%
Compensated temp.	-20-85℃	Full range error(%FS)	±0.5%
Load impedance	500Ω	Thermal Zero drift(%FS)*	±1.0%
Pressure port	C3 G1/2	Thermal Span drift(%FS)*	±1.0%
Pressure port	C5 G1/4	Input Voltage / Output	See below code description
Accuracy (Combined Non-linearity, Hysteresis and Non-repeatability)%FS	0.5%(Typical)	Response time	＜1mS
	0.5%(Typical)	Insulation	Min1MΩ @250VDC&25℃
Pressure Range(psi)	0-5, …, 750	Shock	100g, 11msec
Over pressure	3XFullRange	Noise	<2mVRMS
Burst pressure	4X Full Range or 20kpsi which is less	Pressure reference	Absolute Gauge
Life	>10⁷Full Range Pressure	Weight	90g Max.
