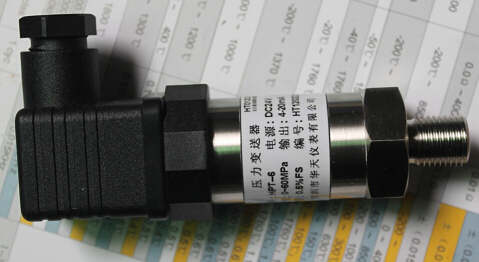

HPT-6 General Purpose presure transmitter for Marine application

FOB Price:	37.00 - 56.40 USD/Piece
Shipping:	2-3 working days after received payment
Payment Terms:	L/C, T/T, Other, paypal

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	standard exported packing

Quick Details

Model Number: HPT-6
Brand Name: Huatian

Specifications

PROFESSIONAL PRESSURE ,LEVEL,TEMPERATURE TRANSMITTER SOLUTION PROVIDER

Instruction:
HPT-6 pressure transducers are based on piezoresistive silicon pressure sensor packaged in 316L stainless
steel housing. The sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to
the sensing element.
Through strict component making, semi-finished product and all-finished product testing and aging,the transmitter is stable and reliable, having excellent flexibility, sensitivity and diversity.Various amplified output with 4~20mA,0.5~4.5V, 0~5V.Various pressure ports, both cable and connector outlets are available; For maximum meeting customer's needs, Special design will be provided if required.

Features:
Flush diaphragm, sanitation ,anti-corrosive type
are available
Piezoresistive and ceramic sensor optional
Full stainless steel design
SSI type optional
Applications:
Hydraulic/Pneumatic Control Systems
Energy and Water Management
Pressure calibration system
Process control
Ship and aircraft application

Sensor Type	Piezoresistive/ceramic	Operable Temp.(℃)	-20~85℃
Wetted parts	316L Stainless steel	Storage Temp(℃)	-20℃-85℃
Housing	304 Stainless steel	Long term stability	±0.25%FS(Typical)
Sealing method	O-ring	Zero error(%FS)	±0.5%
Power supply	12-36V DC(24V standard)	Full range error(%FS)	±0.5%
Protection grade	IP65	Thermal Zero drift(%FS)	±1.0%
Pressure port	See below code description	Thermal Span drift(%FS)	±1.0%
Accuracy (Combined Non-linearity, Hysteresis and Non-repeatability)%FS	X Customized	Input Voltage / Output	See below code description
	0.25%(Typical)	Response	1KHz
Pressure Range(Bar)	-0.1…0…600Bar	Insulation	Min1MΩ @250VDC&25℃
Pressure Range(Bar)	-0.1…0…600Bar	Shock	100g, 11msec
Over pressure	3XFullRange	Noise	<2mVRMS
Burst pressure	4X Full Range or 20kpsi which is less	Pressure reference	Absolute /Vent Gauge/ Seal Gauge
Life	>10⁷Full Range Pressure	Weight	85g Max.
