Shanghai Tianhe Pharmaceutical Machinery Co., Ltd.
China Manufacturer with main products: High Speed Rotary Tablet Press Machine, Rotary Tablet Press Machine, Mixing Machine, Dryer, Tablet Deduster, Packaging Machines, Tablet... |

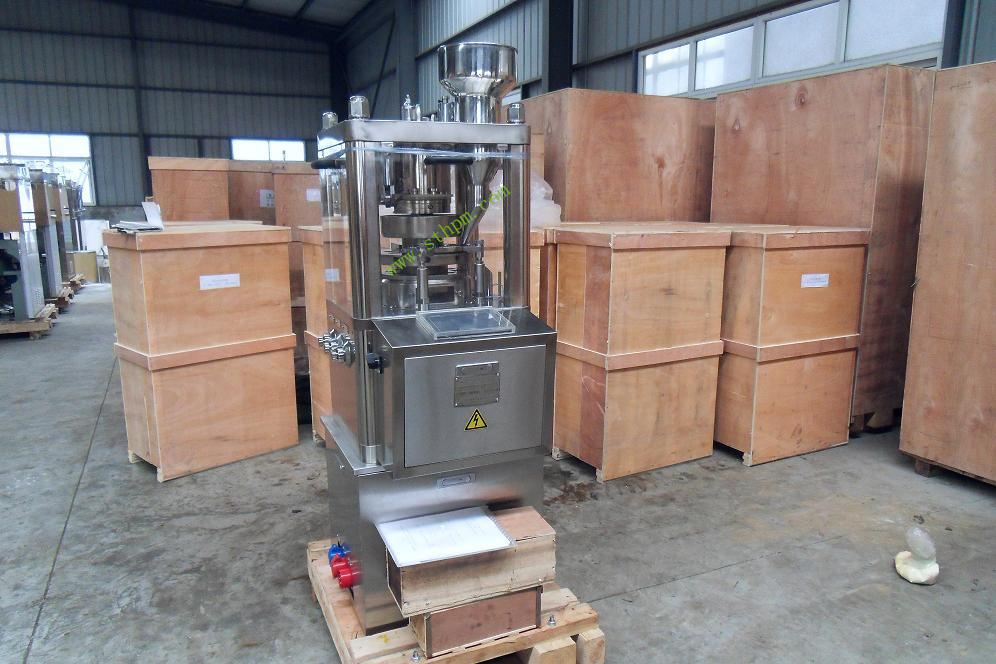

ZP198 Series Rotary Tablet Press
| Supply Ability: | 999 Unit/Units per Year |
|---|---|
| Shipping: | 30 Days |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | EXPORT STANDARD |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Dimension(L*W*H): 700*580*1630mm
- Weight: 650kg
- Power(W): 1.5kw
- Voltage: 380v
- Max. Tablet Diameter(mm): 25
- Max. Tablet Thickness(mm): 6
- Max. Pressure(KN): 60
- Type: Rotary Tablet Press
- Model Number: ZP198 series
- Brand Name: STH
- Condition: New
Specifications
Single roller, fully enclosed in compliance with GMP requirement./ Speed adjustable by frequency inverter./PLC and touch screen, friendly and easy to operate.
Digital display main pressure, tablet ejection force, tablet thickness, filling depth, rotation speed and output./With main pressure and pre-pressure
Overload protection for motor with emergency stop device./Force feeder is optional.
|
Model |
ZP8 |
ZP10 |
ZP14 |
ZP17 |
ZP21 |
ZP23 |
||||||
|
Number of Stations |
8 |
10 |
14 |
17 |
21 |
23 |
||||||
|
Tooling Standard |
D |
D |
B |
B |
BB |
BBS |
||||||
|
Max Main Pressure(KN) |
60 |
|||||||||||
|
Max Pre-pressure(KN) |
10 |
|||||||||||
|
Max Tablet Diameter(mm) |
Round tablet |
25 |
25 |
18 |
18 |
13 |
11 |
|||||
|
Irregular tablet |
25 |
25 |
19 |
19 |
16 |
13 |
||||||
|
Max Filling Depth (mm) |
16 |
|||||||||||
|
Max Tablet Thinckness (mm) |
6 |
|||||||||||
|
Max Turret Speed(r/min) |
30 |
|||||||||||
|
Max Production Capacity (pcs/h) |
14400 |
18000 |
25200 |
30600 |
37800 |
41400 |
||||||
|
Motor Power (kw) |
1.5 |
|||||||||||
|
Overall Size (mm) |
700×580×1630 |
|||||||||||
|
Machine Weight (kg) |
650 |
|||||||||||
