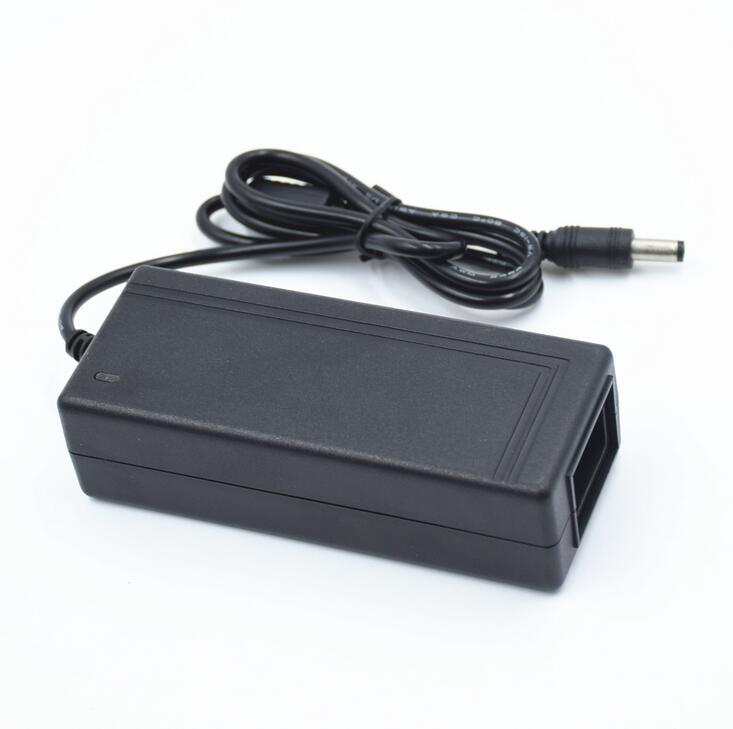

9V 2000mA Switching Power AC Adapter 9V 2A Adaptors for Digital Products
| FOB Price: | 3.56 - 4.50 USD/Piece |
|---|---|
| Supply Ability: | 150,000 Piece(s) per Month |
| Shipping: | DHLFEDEX,UPS,TNT... |
| Payment Terms: | T/T, Western Union, Other, Paypal |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Outer packing:carton box(41.5*37*17cm),100pcs per box ;Inner packing: white box+PE bags |
Quick Details
- Connection: Desktop
- Brand Name: JP
- WARRANTY: 1 year
- Color: Black
- Model Number: JYH32-0902000
- Color: Black
- DC Connector: 5.5*2.1/2.5mm
- Application: LCD monitors, LED lamps and lanterns, communication equipment,
- Input Voltage: 100-240VAC 50-60HZ
- Size: 96*44*30MM
Specifications
9V 2000mA Switching Power AC Adapter 9V 2A Adaptors for digital products Features ·Universal AC input / Full range ·Protections: Short circuit / over current / over voltage ·Cooling by free air convection ·Small and compact size ·100% full load burn-in test ·Low cost, high reliability ·Suitable for LED lighting and moving sign applications SPecification: Model JYH32-0902000 Output VOltage 9V CUrrent 2.0A Power(max.) 18W Ripple&noise(max.) 100mVp-p EFficiency 80% VOltage tolerance ±5.0% LineRegulation ±1.0% LOad regulation ±1.0% SEtup,rise time 100ms / 115VAC at full load HOld up time 30ms/115VAC at full load Input VOltage range 90 ~ 264VAC FRequency range 47 ~ 63Hz AC CUrrent(max.) 0.5A/115VAC 0.3A/230VAC INrush current(max.) COLD START 30A/115VAC 60A/230VAC PRotection OVer current 120% ~ 150% type; TYPE: cut output reset: automatic recovery OVer voltage 120% ~ 150% type; TYPE: cut output reset: automatic recovery SHort circuit TYPE: cut output reset: automatic recovery ENvironment WOrking temp. 0℃~ 40℃ WOrking humidity 20% ~ 80% R.HNon-condensing STorage temp.,humidity -20℃~ 70℃ 20% ~ 90% R.H Safety &EMC DIelectricSTrengthHi-Pot Primary to secondary:3000Vac 10mA; Primary to shell:1500Vac 10mA; shell to secondary:1500Vac 10mA INsulation resistance Primary to secondary, Primary to shell, shell to secondary;>100M Ohms / 500VDC LEaking current 0.25mA / 240VAC SAfety standard UL GS SAA KCC BSI PSE CCC EMC STandards CE EN55022B FCC GReen mode Noload Power Consumption Less Than 0.3W Others MTBF 50000hrs min. MIL-HDBK-217F (25 ) DImension 87*45*32Mm (L*W*H) Weight 140g/pcs
