Biscuit automatic packing line

FOB Price:	1.00 - 7,000.00 USD/Set
Supply Ability:	1,000 Set/Sets per Month
Shipping:	by sea or by land
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Port: Guangzhou port; Delivery time: 30 days Package:standard export package with wooden case.

Quick Details

Type: Packaging Line
After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE
Weight: 600kg
Dimension(L*W*H): 4000*950*1600mm
Model Number: ZP-380
Brand Name: Ruipuhua
Power: 4.4kw/single line
Voltage: 220v
Driven Type: Electric
Automatic Grade: Automatic
Packaging Material: Plastic
Packaging Type: Film
Application: Commodity,Food
Condition: New
Machine Model: ZP-380
Packing speed: 35-180 bags/min
Bag size: L 115-280mm W 30-160mm H 5-60mm
Film width: 90-350mm
Packing material: OPP/CPP,PT/PE,KOP/CPP,ALU-FOIL
Heat power: 2.1kw
Motor power: 0.55+0.75kw
Total power: 3.4kw
Overall weight: 600kg

Specifications

Main performance & Structure Characteristics

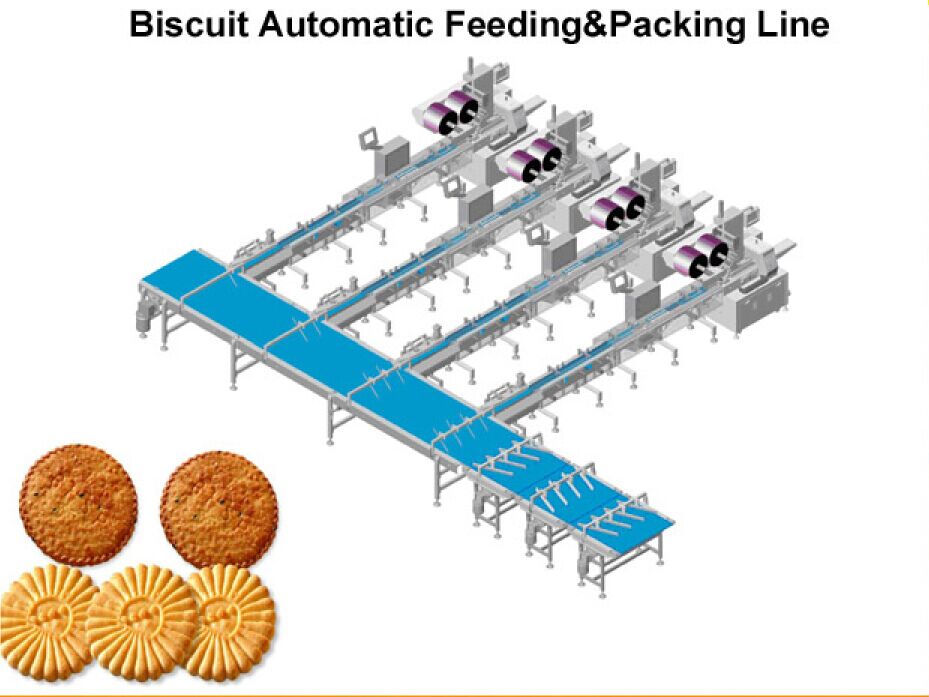

1. Biscuit feeding and packing line consist of distantiation conveyor, transition conveyor, automatic feeding unit and automatic packing machine. Biscuits and other products are spaced out and distributed, and then the products are transmitted orderly to the packing machine for packaging. The packing line can achieve the effects of continuous and orderly production, low reject rate, and beautiful appearance.

2. Packing speed of single line can achieve to 180 bags/min.

3. The whole packing line adopts power supply of 50 HZ 220v, total power of single feeding and packing line is 6.2KW (including the packing machine).

Advantages
1. By the use of multi-stage differential distantiation and multi-grade feeding belt, the products are arranged neatly, location accurate and high speed.

2. Equipped with stainless steel or nylon baffle.

3. Dismantle the belts without tools, crumble slots are installed in the connecting places and in the bottom of the belt, easy to maintain, save time and effort.

4. Simplified structure, easy operation, convenient cleaning and maintenance, it's easy and fast to change films and setting when changing products with different size.

5. Standard configuration equipped with food grade white PU belt, blue anti-microbial belt and anti-sticking belt are optionally available.

6. High quality electric components are adopted in control system; intelligent PLC, touch screen and wonderful HMI, make the operation easy and intuitive.
