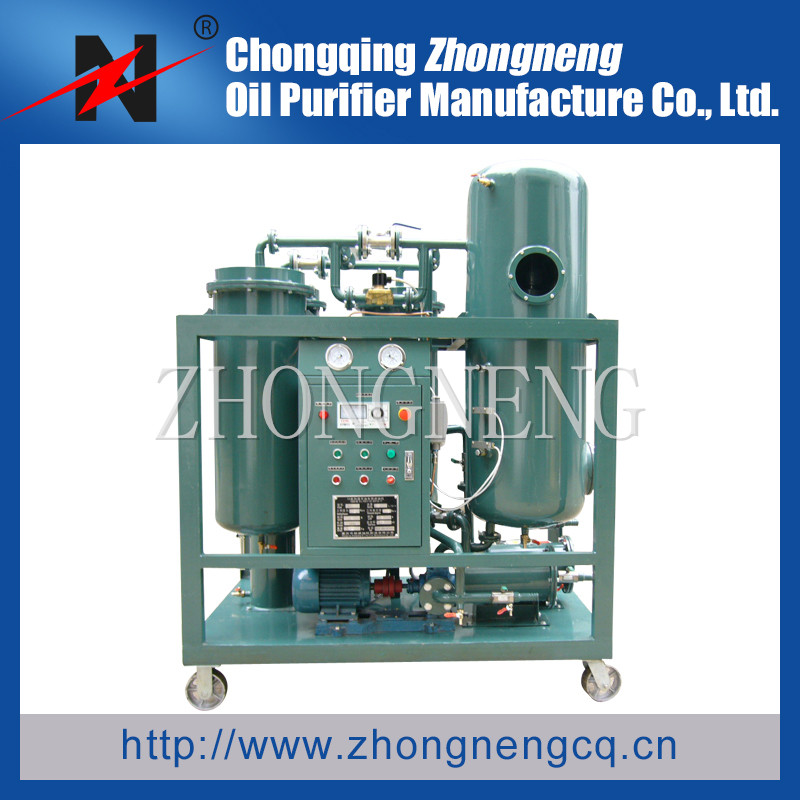

TY Vacuum Turbine Oil Filtration Plant,Turbine oil purifier

FOB Price:	7,500.00 - 38,000.00 USD/Set
Supply Ability:	500 Set/Sets per Year
Shipping:	20 days
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Chongqing in China
Packaging Details:	wooden case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE, ISO9001,CCC
Weight: 900KG
Dimension(L*W*H): 1500*1200*1800mm
Power(W): 60KW
Voltage: 380V,50Hz
Usage: Lubricant Oil
Model Number: TYC
Brand Name: Zhongneng
Working Pressure: 0.4MPa
Flow: 150L/min
Condition: New
Type: Return Filter
Structure: Vacuum
Warranty: 1 Year
Color: Green
Demulsification Value: 15 (GB/F 7305)
Vacuum Degree: -0.06~-0.095MPa
Temperature Range: 40~70
Water Content: 80PPM
Cleanliness: NAS Grade 6

Specifications

TY Vacuum Turbine Oil Filtration Plant,Turbine oil purifier

Why choose us?

1. We are one of the largest manufacturers & exporters of oil purifier in China

2. We have more than 10 years export experience

3. We offer our customers high quality products at competitive price

4. We offer our customers excellent after-sales service

5. We are not satisfied until our customers are satisfied!

What can this machine do for you?

Series TY vacuum turbine oil purifier mainly be used for purifying unqualified turbine oil, especially for serious emulsion turbine oil, it can quickly and efficiently break emulsification, separate water, gas, particles from oil. So that makes sure quality of treated oil to achieve new oil's standard, ensure whole turbine system work safely. This equipment use a special polymer materials as filter medium combined with vacuum separating technology to break emulsification, dewater, degas, remove acid and particles, make the badly turbid turbine oil becomes clear transparent. Series TY is a perfect turbine oil purifier for live line work; also it can purify low viscosity hydraulic oil and lube oil.

Features:

1. Special polymer materials as filter medium with the functions of broken emulsion, dewatering, removing particles

2. Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.

3. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technology.

4. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

5. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.

6. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

7. Work online with stream turbine, hydraulic turbine.

Note:

1. The warranty period is 12 months.

2. We supply repairing parts for product's life time long and technical instruction.( free within the warranty period and charge beyond warranty period).

3. Each of our equipment has been tested and are in 100% good working condition before shgipment, the customer only need to operate as per the operation manual.

Please note: the operation and repair is easy.

Technical Parameters

Item		Unit	TY-10	TY-20	TY-30	TY-50	TY-100	TY-150	TY-200	TY-300
Flow rate		L/H	600	1200	1800	3000	6000	9000	12000	18000
Vacuum Degree		MPa	-0.06 ~ -0.095
Working Pressure		MPa	≤0.3
Temperature Range		℃	40 ~ 70
Water Content		PPM	≤100
Cleanness		NAS	≤6 grade (NAS1638)
Demulsification Value		min	≤15 (GB/F 7305)
Heating Power		kW	12	15	18	24	45	60	72	84
Total Power		kW	14	17	20	27	48	66	81	97
Inlet/outlet Caliber		mm	25	25	25	32	42	50	50	60
Weight		kg	400	450	500	600	700	900	1050	1550
Dimension	Length	mm	1280	1350	1350	1400	1500	1500	1600	1800
	Width	mm	750	900	950	950	1000	1200	1350	1400
	Height	mm	1450	1450	1500	1600	1650	1800	1800	1850

The dimension and weight will be changed with changing the technical specification.
