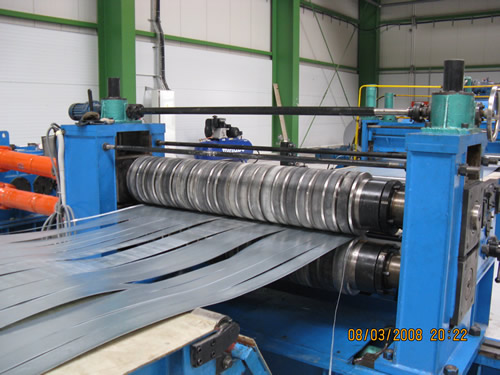

Steel strip slitting line, slitter line

Specifications

Ⅰ. Technological Capability:

1.1 Raw material: carbon steel strip, fine steel strip, and low alloy steel strip

(σs≤350MPa,b≤500MPa )

1.2 Specification of raw material:

Thickness of steel strip                     0.25 -  2.0mm

Width of steel strip                             700 - 1300mm

Inner diameter of strip coil                508mm

Max Outer diameter of strip coil      1800mm

Max weight of strip coil                     10 tons

1.3  Finished Product

Inner diameter of strip coil                 610mm

Outer diameter of strip coil                Max1800mm

1.4 Slitting capacity

      quantity of srip                               8 -  15 strips

1.5  Max Line Speed                          100m/min

1.6 Input Power:                                  380Volt, 3 phase, 4 lines, 50Hz.

1.7 Feeding Direction:                         Left side or right

II Technical flow:

Coil loader → Uncoiler → shovel board device → Feed Flattener → end shear → Centering device→ Slitter→ scrap winder → Accumulator →tension stand→ Recoiler→ Movable support→ Separating Presser → coil unloader

• Teneng is an professional Manufacturer of Pipe mill line, API, ASTM,  have  20 design engineers , all of them have more than15 years of experience in the tube mill industry.
• Mill have already export to USA, Saudi,Iran, India, Sweden, Uzbekistan, Kazakhstan, Ukraine, Syria, Sudan, Vietnam, and so on.
• Choose us, trust us, we can do better thin you think.

Professional Team

We are Manufactuer, have nearly Teneng have 15 design engineers and 20 commission engineer, all of them have more than15 years of experience in the tube mill industry.

Professional Training Service

?We shall provide the professional training service for the operation, maintenance and repairing.

?We also would send our engineers to our customers' factory for installation and testing.

?We shall provide the products absolutely fulfill your requirements and it would be a full turnkey service.

 After Sale Service

We also would send our engineers to our customers' factory for installation and testing.

 Reputable Products

we have exported our products to many countries and regions all over the world, especially Russia, Ukraine, Kazakhstan, Uzbekistan, ...
