Dongying Lake Petroleum Technology Co., Ltd.
China Manufacturer with main products: Bop/Blowout Preventer, Mud Pump, Downhole Tools, Casing/Tubing, Drill Collar/Drill Pipe/Stabilizer, Handling Tools, Cementing Tools, Rig... |

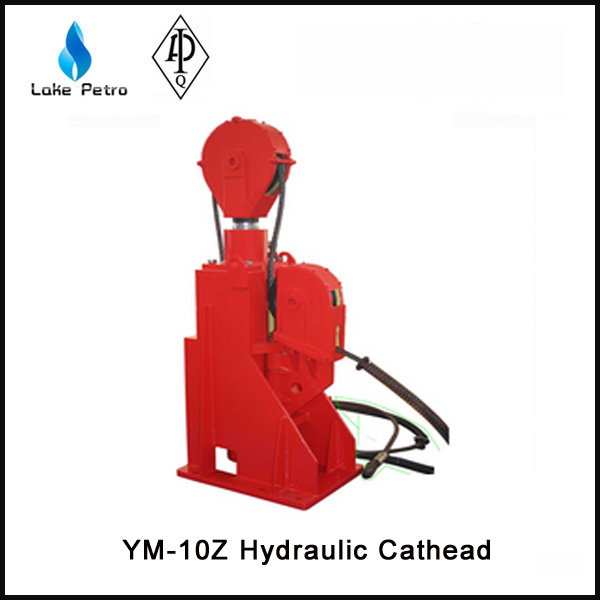

High quality YM-10 10tons hydraulic cathead in oil field
| FOB Price: | 10,000.00 - 30,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set/Sets per Month |
| Shipping: | 30 days,Chinese port by sea |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Standard export package |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 12months
- Certification: API
- Dimension(L*W*H): 2232*1172*650mm
- Weight: 360kg
- Model Number: YM-10
- Brand Name: LAKE
- Condition: New
- Pressure rating: 16Mpa
- Flow rating: 120L/min
- Coulor: as request
Specifications
Descriptions:
The YM hydraulic
cathead is suitable to make up and break out by accompanying with Rotary Tong.
Operation is stable and pull may be adjusted whenever necessary. It has its
series with four specifications of 5t, 8t, 10t, 16t by pull to select.
Technical information:
|
Model |
YM-5 |
YM-8 |
YM-10 |
YM-10LX |
YM-10C |
YM-10Z |
YM-16 |
YM-16LX |
YM-16C |
YM-16Z |
|
|
Pressure rating |
MPa |
16 |
16 |
16 |
16 |
16.6 |
16.6 |
16 |
16 |
16.6 |
16.6 |
|
psi |
2320 |
2320 |
2320 |
2320 |
2400 |
2400 |
2320 |
2320 |
2400 |
2400 |
|
|
Flow rating |
L/min |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
|
gpm |
31.7 |
31.7 |
31.7 |
31.7 |
31.7 |
31.7 |
31.7 |
31.7 |
31.7 |
31.7 |
|
|
Nominal stroke |
mm |
1700 |
1400 |
1650 |
1650 |
1500 |
1500 |
1620 |
1620 |
1500 |
1500 |
|
in |
67 |
55 |
65 |
65 |
59 |
59 |
64 |
64 |
59 |
59 |
|
|
Pull rating |
kN |
50 |
80 |
100 |
100 |
100 |
100 |
160 |
160 |
160 |
160 |
|
US ton |
5.5 |
8.8 |
11 |
11 |
11 |
11 |
17.6 |
17.6 |
17.6 |
17.6 |
|
|
Wire Rope Diameter |
mm |
16 |
20 |
22 |
22 |
20 |
20 |
24 |
24 |
26 |
26 |
|
in |
5/8 |
3/4 |
7/8 |
7/8 |
3/4 |
3/4 |
15/16 |
15/16 |
11/32 |
11/32 |
|
|
Size |
mm |
2232×1172×650 |
2280×1280×650 |
2342×1280×650 |
1973×710×430 |
2137×725×260 |
1588×600×520 |
2450×1590×650 |
2025×700×430 |
2314×740×400 |
1592×650×520 |
|
in |
88×46×26 |
90×50×26 |
92×50×26 |
76×28×17 |
91×29×10 |
63×24×20 |
96×63×26 |
80×28×17 |
91×29×16 |
63×26×21 |
|
|
Weight |
kg |
288 |
305 |
345 |
530 |
360 |
450 |
420 |
760 |
400 |
520 |
|
lb |
635 |
673 |
761 |
1168 |
794 |
993 |
926 |
|
|
|
|
