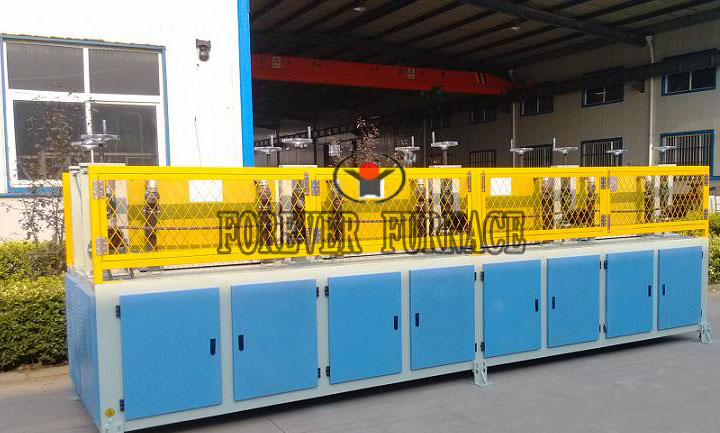

Shaft Induction Hardening & Tempering System

Supply Ability:	100 Set(s) per Year
Shipping:	10-15 days after your down payment

Inquiry Now Start Order

Related products from verified members

Product Details

Place of Origin:	Hebei in China
Packaging Details:	As per your requirement

Quick Details

Brand Name: FOREVER
Length: 6m
Coatings: Nickel
Material: Stainless Steel
Structure: Flexible
Model Number: HYDL-031
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 24 months
Certification: ISO9001:2008
Power(W): 500kw
Usage: Heat Treatment Furnace
Type: Induction Furnace
Condition: New
Application: Shaft heat treatment
Heating method: Induction heating

Specifications

Forever Furnace is specialized in manufacturing Shaft induction hardening and tempering system.with the features of High automatic and high heating rate,your work can be more valuable.

High heating efficiency of Forever Shaft induction hardening and tempering system

in this system,we use thyristor medium frequency induction heating power supply for the low temperature range and the IGBT super-audio frequency power will work when the heating temperature reaches to the curie temperature.that make sure the heating efficiency is over 80%.

Shaft induction hardening and tempering system

the configurations and features of Shaft induction hardening and tempering system

1.IF power supply:

this line is equipped with thyristor IF power supply and IGBT super-audio frequency power supply. the equipment has reasonable wiring, strict assembly process and the perfect protection system.the power factor is high and easy operation and maintenance.

2.Feeding System:

this system consists of feeding frame,variable frequency motor,air cylinder,steel roller and so on.There is high temperature insulation material between steel roller and inner sleeve.The inner sleeve connects with shaft key.It is more convenient to disassemble and protect the steel bar from surface burning by contacting with steel roller during transmitting.

3.Induction heater:

Induction heater has four sets of inductors.the length is 1m each one.

4.the fast switch of induction heaters:

a)Four sets of inductors switch:Lifting, sliding type positioning installation as a whole.Quick change connector for water supply device and stainless steel king-bolt connection for electricity.

b)Single inductor switch:Quick change connector for water supply device and stainless steel king-bolt connection for electricity.

c)Inductor copper pipe:Electrolytic copper(T2 red copper) as per the international standard

5.Water cooling system

6.Steel bar hardening and tempering line can meet the requirement of three shifts for 24 hours with stable running.

7.There is no spark during bar transmission.

Forever Furnace Service Commitment:

1.the service mode of " 1+2",that is one sales person and one after-sales person will serve you once you buy our steel bar induction heating equipment.

2.Provide local installment instruction and adjustment free of charge.Responsible for the training for the technician and operator.

3.the whole technical document including the ELectricity Schematic Diagram Will be provided.

4.One year guarantee period,long term technical service and spare parts support.

5.for the new equipment,we will make a call every 15 days to know the equipment quality status.

6.If the customer equipment fault need to be solved in customer's factory,we will send technician to solve problem within 24-48 hours.

Forever Business Principle:Customer satisfaction is our unremitting pursuit,try our best to reduce production cost and increase the production efficiency for our customers.Make you more competitive.
