Zhengli Group Company Limited
China Manufacturer with main products: Zinc Oxide Varistor, Ntc Thermistor, Capacitor Y1/X1, Capacitor Y2/X1, MKP-X2 Capacitor, High Voltage Ceramic Capacitor, Film Capacitor,... |

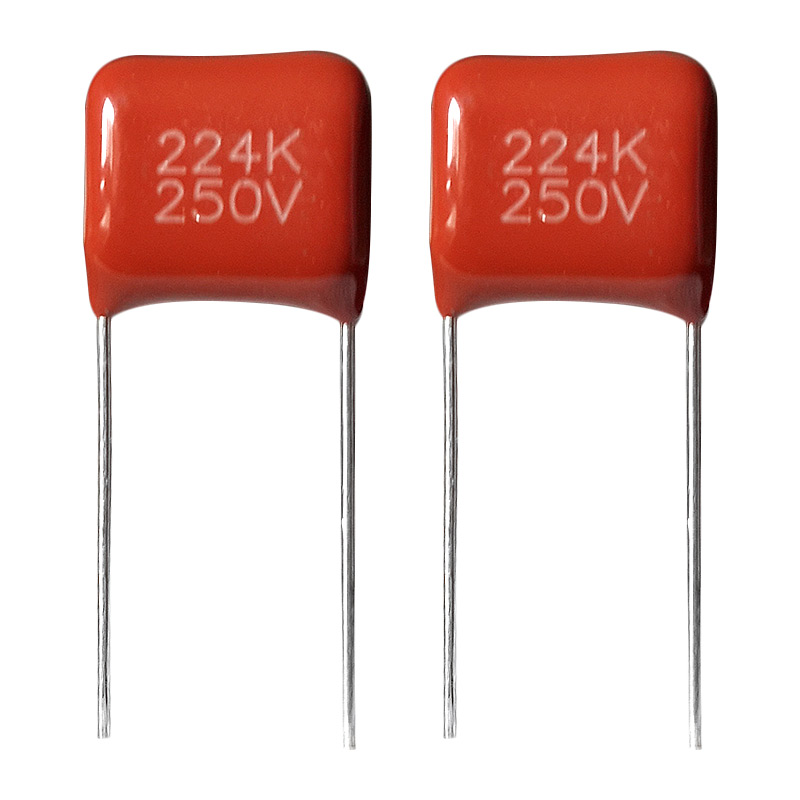

mpp capacitor metallized polypropylene film capacitor
| FOB Price: | 0.03 - 0.20 USD/Piece |
|---|---|
| Supply Ability: | 5,000,000 Piece/Pieces per Month |
| Shipping: | lead time : 3 weeks |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | bulk : 500 pieces a bag |
Quick Details
- Operating Temperature: -40 ~ +85
- Rated Voltage: 250,400,630VDC
- Capacitance: 0.0047 ~ 3.3uf
- Package Type: Through Hole
- Application: Lighting
- Type: Polypropylene Film Capacitor
- Model Number: CBB21
- Brand Name: zhengli
Specifications
Metallized polypropylene film capacitor CBB21(MPP)
1.Features and uses
Flame retardant epoxy resin coating , high insulation resistance , good self-healing effect , very small inherent temperature rise ,very low loss at high frequency ,widely used in DC ,pulse ,high frequency and high current circuits.
2.specificaions
|
Reference standard |
GB10190(IEC60384-16) |
|
Climate category |
40/85/21 |
|
Rated voltage(Ur) |
250,400,630VDC |
|
Voltage proof |
1.6Ur(5S) |
|
Capacitance range |
0.01~3.3uF |
|
Capacitance tolerance |
J:±5% K:±10% M:±20% |
|
Dissipation factor |
≤0.01(1KHz , 20℃) |
|
Insulation resistance(IR) |
Cr ≤0.33uF ≥25000MΩ |
|
Cr > 0.33uF ≥7500S(20℃, 1min) |
3.Dimensions(unit: mm)
|
Capacitance (uf) |
250V |
400V |
630V |
||||||||||||
|
Wmax |
Hmax |
Tmax |
P±1 |
d±0.05 |
Wmax |
Hmax |
Tmax |
P±1 |
d±0.05 |
Wmax |
Hmax |
Tmax |
P±1 |
d±0.05 |
|
|
0.01 |
|
|
|
|
|
12.5 |
10.5 |
6 |
7.5 |
0.6 |
15.5 |
12 |
6.5 |
10 |
0.6 |
|
0.012 |
|
|
|
|
|
12.5 |
11 |
6.5 |
7.5 |
0.6 |
15.5 |
12.5 |
7 |
10 |
0.6 |
|
0.015 |
|
|
|
|
|
12.5 |
11.5 |
7 |
7.5 |
0.6 |
15.5 |
13 |
7.5 |
10 |
0.6 |
|
0.018 |
|
|
|
|
|
12.5 |
12 |
7 |
7.5 |
0.6 |
15.5 |
13.5 |
8 |
10 |
0.6 |
|
0.022 |
12.5 |
10 |
5.5 |
7.5 |
0.6 |
12.5 |
12 |
7.5 |
7.5 |
0.6 |
15.5 |
14 |
8.5 |
10 |
0.6 |
|
0.027 |
12.5 |
10.5 |
6 |
7.5 |
0.6 |
15.5 |
12.5 |
7 |
10 |
0.6 |
15.5 |
14.5 |
9 |
10 |
0.6 |
|
0.033 |
12.5 |
11 |
6.5 |
7.5 |
0.6 |
15.5 |
13 |
7 |
10 |
0.6 |
21 |
13.5 |
7 |
15 |
0.8 |
|
0.039 |
12.5 |
11.5 |
7 |
7.5 |
0.6 |
15.5 |
13.5 |
7.5 |
10 |
0.6 |
21 |
14 |
7.5 |
15 |
0.8 |
|
0.047 |
12.5 |
12 |
7.5 |
7.5 |
0.6 |
15.5 |
13.5 |
8 |
10 |
0.6 |
21 |
14.5 |
8 |
15 |
0.8 |
|
0.056 |
15.5 |
13 |
6.5 |
10 |
0.6 |
15.5 |
14 |
8.5 |
10 |
0.6 |
21 |
15 |
8.5 |
15 |
0.8 |
|
0.068 |
15.5 |
14 |
7 |
10 |
0.6 |
15.5 |
14.5 |
9.5 |
10 |
0.6 |
21 |
15.5 |
9 |
15 |
0.8 |
|
0.082 |
15.5 |
14.5 |
7.5 |
10 |
0.6 |
21 |
14.5 |
8 |
15 |
0.8 |
21 |
16.5 |
10 |
15 |
0.8 |
|
0.1 |
15.5 |
13.5 |
7.5 |
10 |
0.6 |
21 |
15 |
8.5 |
15 |
0.8 |
21 |
17.5 |
11 |
15 |
0.8 |
|
0.12 |
15.5 |
14.5 |
8 |
10 |
0.6 |
21 |
15.5 |
9 |
15 |
0.8 |
26 |
17 |
10 |
20 |
0.8 |
|
0.15 |
21 |
13.5 |
7 |
15 |
0.8 |
21 |
16 |
10 |
15 |
0.8 |
26 |
18 |
11 |
20 |
0.8 |
|
0.18 |
21 |
14.5 |
7.5 |
15 |
0.8 |
21 |
17 |
10.5 |
15 |
0.8 |
26 |
19 |
12 |
20 |
0.8 |
|
0.22 |
21 |
16 |
7.5 |
15 |
0.8 |
26 |
16.5 |
10 |
20 |
0.8 |
26 |
20 |
13 |
20 |
0.8 |
|
0.27 |
21 |
17 |
8.5 |
15 |
0.8 |
26 |
17 |
11 |
20 |
0.8 |
31 |
21.5 |
11.5 |
25 |
0.8 |
|
0.33 |
21 |
17.5 |
9 |
15 |
0.8 |
26 |
18 |
12 |
20 |
0.8 |
31 |
22.5 |
12.5 |
25 |
0.8 |
|
0.39 |
26 |
18 |
8 |
20 |
0.8 |
26 |
19 |
12.5 |
20 |
0.8 |
31 |
23.5 |
13.5 |
25 |
0.8 |
|
0.47 |
26 |
19 |
9 |
20 |
0.8 |
31 |
21 |
11 |
25 |
0.8 |
31 |
25 |
15 |
25 |
0.8 |
|
0.56 |
26 |
19 |
10 |
20 |
0.8 |
31 |
22 |
12 |
25 |
0.8 |
|
|
|
|
|
|
0.68 |
26 |
19 |
10.5 |
20 |
0.8 |
31 |
23 |
13 |
25 |
0.8 |
|
|
|
|
|
|
0.82 |
26 |
20 |
11.5 |
20 |
0.8 |
31 |
24 |
14 |
25 |
0.8 |
|
|
|
|
|
|
1.0 |
31 |
20.5 |
10.5 |
25 |
0.8 |
31 |
25 |
15 |
25 |
0.8 |
|
|
|
|
|
|
1.2 |
31 |
21.5 |
11.5 |
25 |
0.8 |
|
|
|
|
|
|
|
|
|
|
|
1.5 |
31 |
22.5 |
12.5 |
25 |
0.8 |
|
|
|
|
|
|
|
|
|
|
|
1.8 |
31 |
24 |
14 |
25 |
0.8 |
|
|
|
|
|
|
|
|
|
|
|
2.2 |
36 |
25 |
13.5 |
30 |
0.8 |
|
|
|
|
|
|
|
|
|
|
|
2.7 |
36 |
27 |
15.5 |
30 |
0.8 |
|
|
|
|
|
|
|
|
|
|
|
3.3 |
36 |
28 |
17 |
30 |
0.8 |
|
|
|
|
|
|
|
|
|
|
