JIS Marine Valve- Bronze Rising Stem Type Gate Valve 5k 10k

FOB Price:	1.00 - 2.00 USD/Piece
Supply Ability:	5,000 Piece(s) per Month
Shipping:	30 Days
Payment Terms:	T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	wooden box

Quick Details

Brand Name: VG
Temperature of Media: Medium Temperature
Material: Brass
Pressure: Medium Pressure
Standard or Nonstandard: Standard
Model Number: F7367/ F7368
Media: Water
Power: Manual
Structure: Stop

Specifications

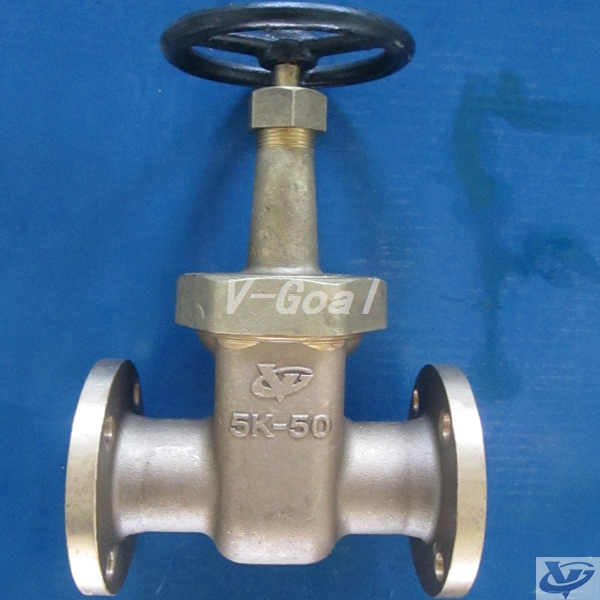

JIS Marine valve Bronze Rising Stem Type Gate valve

Description;

1)F7367-Marine Bronze 5K Rising Stem Type Gate valve

Nominal pressure; 5K(0.49Mpa)

DN15, 20, 25, 32, 40, 50, 65, 80, 100

2)F7368-Marine Bronze 10K Rising Stem Type Gate valve

Nominal pressure; 10K(0.98Mpa)

DN15, 20, 25, 32, 40, 50, 65

1.End Type; Flange

2. Gate valve

3. Main material;

Body/Bonnet/ Disc; BC 6 or Brass;

Stem; Brass C3771BD;

Gasket; Non-asbestos;

Hand-wheel; FC200

4.Application;Sea water piping, fresh water piping, oil piping and steam piping.

5.Function:the products are used for controlling the flow rate for the pipe line.
