Home >Products Catalog > IP camera and NVR > LS Vision 3MP 2048*1536/20fps Varifocal Lens IP66 Vandalproof IR Night Vision Dome Camera P2P

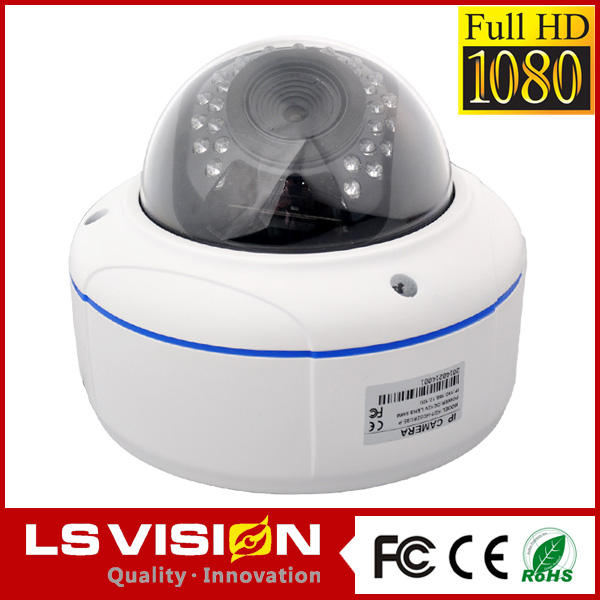

LS Vision 3MP 2048*1536/20fps Varifocal Lens IP66 Vandalproof IR Night Vision Dome Camera P2P

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Special Features: Vandal-proof
Technology: NetWork
Sensor: CMOS
Style: Dome Camera
Type: Digital Camera
Model Number: LS-VHP302DVIR
Brand Name: LS VISION

Specifications

Key Features

Up to 3 megapixel resolution(2048 × 1536)

Max 20fps 3MP(2048 × 1536); 60Hz:20fps 3MP(2048 × 1536)

H.264&MJPEG dual-stream encoding

208-12mm varifocal lens

Advanced H.264 High Profile Level@4 compression

Day/Night(ICR)&3D DNR&AWB&AGC&BLC

Support mobile phone monitoring and P2P function

Digital WDR

IP66 rating

Power supply (DC12V)

Bracket optional(Wall mounting/Lifting)

POE function (Optional)

Full function (Optional): SD card; Audio in/out; Alarm in/out; RS485; Secondanalog video; reset;

Model NO.		LS-VHP302DVIR(-F)
Media Processor		High-performance TI DaVinci DSP
Image Sensor		1/3" 3MP progressive scan CMOS
Shuttle time		1/5s to 1/50,000s
Lens		2.8~12mm optional
IR Range		≤20m
Day&Night		IR cut filter with auto switch
Compression
Video Compression		H.264/MJPEG
H.264 coding standard		H.264 Baseline/MainProfile/HighProfile
Audio Compression		G.711a/G.711u/RAW_PCM
Audio Bit Rate		G.711a(8kbps)/G.711u(8kbps)/RAW_PCM(16kbps)
Max Image Size		2048(H)×1536(V)
Stream		Dual-stream
Frame Rate		Main Stream : 50Hz:20fps (2048 × 1536),25fps (1920 × 1080), 60Hz:20fps (2048 × 1536),30fps (1920 × 1080), 30fps (1920 080), Sub-stream : 50Hz: 25fps(640 × 480); 60Hz: 30fps (640 × 480)
Network
Alarm Trigger		Motion detection, tampering alarm, network disconnect, storage exception
Protocols		IPv4/IPv6, RTSP/RTP/RTCP, TCP/UDP, HTTP, DHCP, DNS, FTP, DDNS, PPPoE, SMTP, Onvif V2.4
Onvif		V2.4 Version
