External Wedge Wire Rotating Drum Screen

Supply Ability:	10 Piece(s) per Day
Shipping:	BY SEA
Payment Terms:	L/C, D/A, T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	WOODEN

Quick Details

Width: 350mm
Material: Metal
Type: Filter Cylinder
Usage: Liquid Filter
Brand Name: Guangxing
Length: 6000mm
Thickness: 8mm

Specifications

this is Joanna from guangxing wedge wire company.We are a manufacturer of rotary drum screen in china.Rotary drum screen cylinders are manufactured in various diameters from 1/2" pipe size to 36" diameter. Screen cylinders can be fabricated into much larger sizes. Each intersection of wedge wire and support rod is welded for strength and durability. Variou wedge wire and support rod combinations can be used to produce the best screen design.Wedge Wire screen cylinders can be designed with slot openings and wires running radially on the outside surface of the screen cylinder or they can be positioned axially on the inside of the cylinder.Rotary Screens typically use wedgewire for the screening media.The externally fed unit has a spiral wound wedgewire screen drum 36" OD x 120" long.Please tell us your demand and then we design,manufacture for you.Yours faithfully Joanna.

External Rotary Screens / technical information

Types Modular
Media: Liquids Grey Water, Industrial Effluents, Process Water, Sewage & Storm Water
Media: Solids TSS Reduction, Industrial and Municipal Process Screenings
Screen Types Rotating screens, Coarse and Fine Separation
Materials Stainless Steel, Stainless Steel (304) and Stainless Steel (316)
Features Self cleaning, Mechanical Spring Loaded Scraper
Maximum aperture size (mm) 2.5
Minimum aperture size 0.25

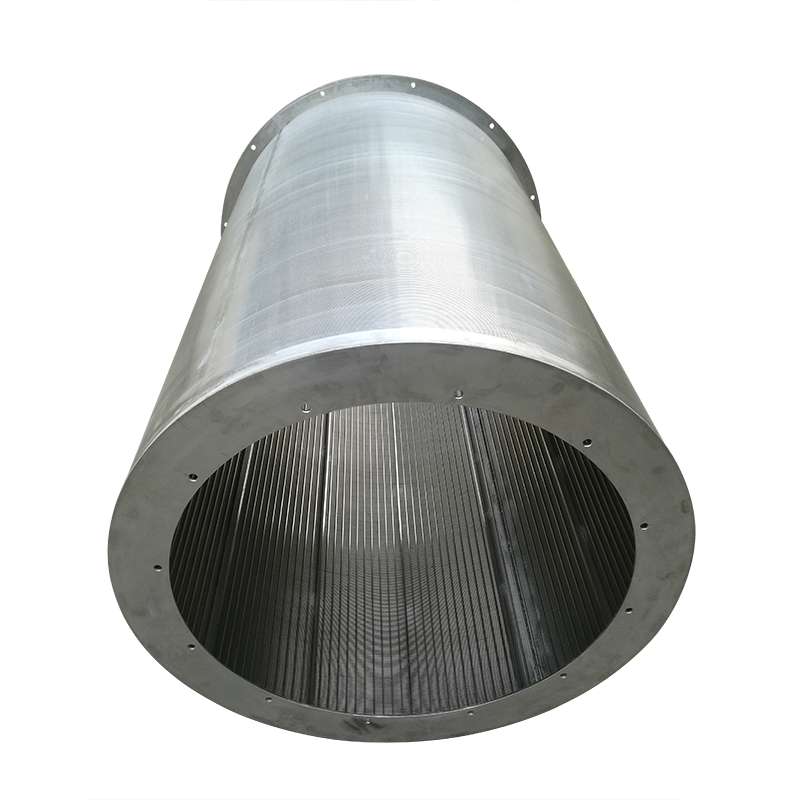

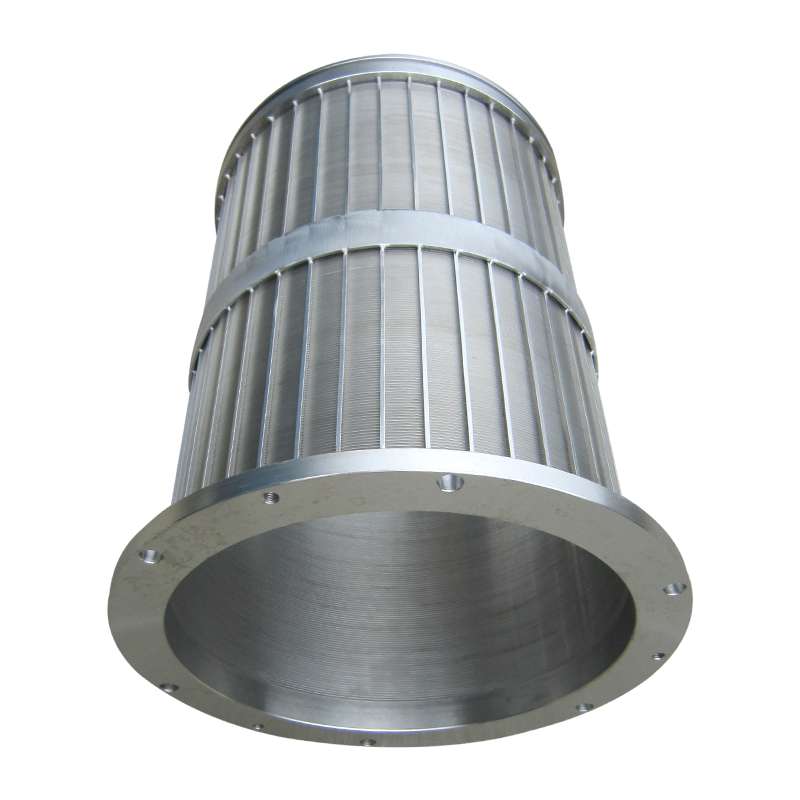

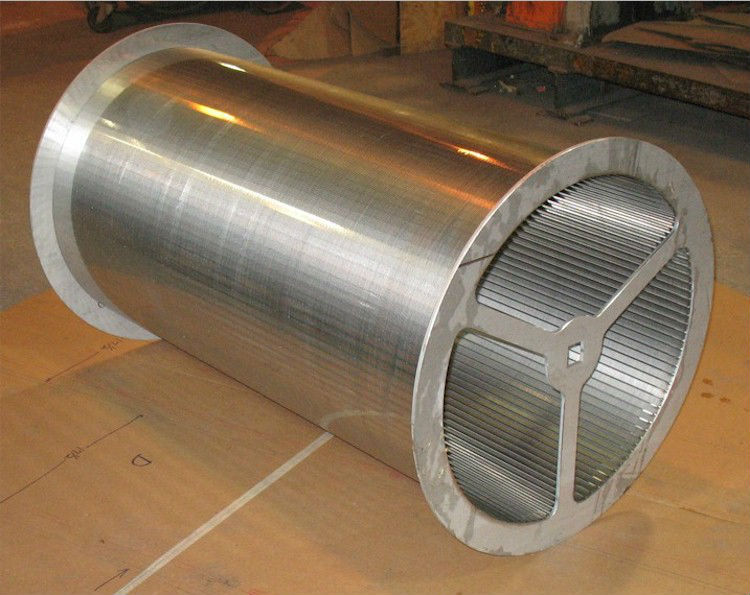

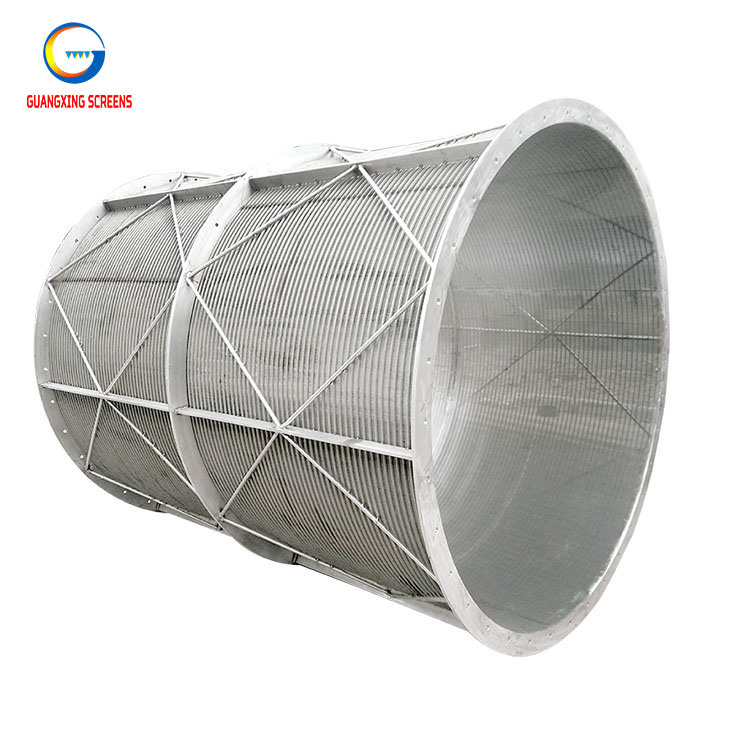

External wedge wire rotating drum screen
