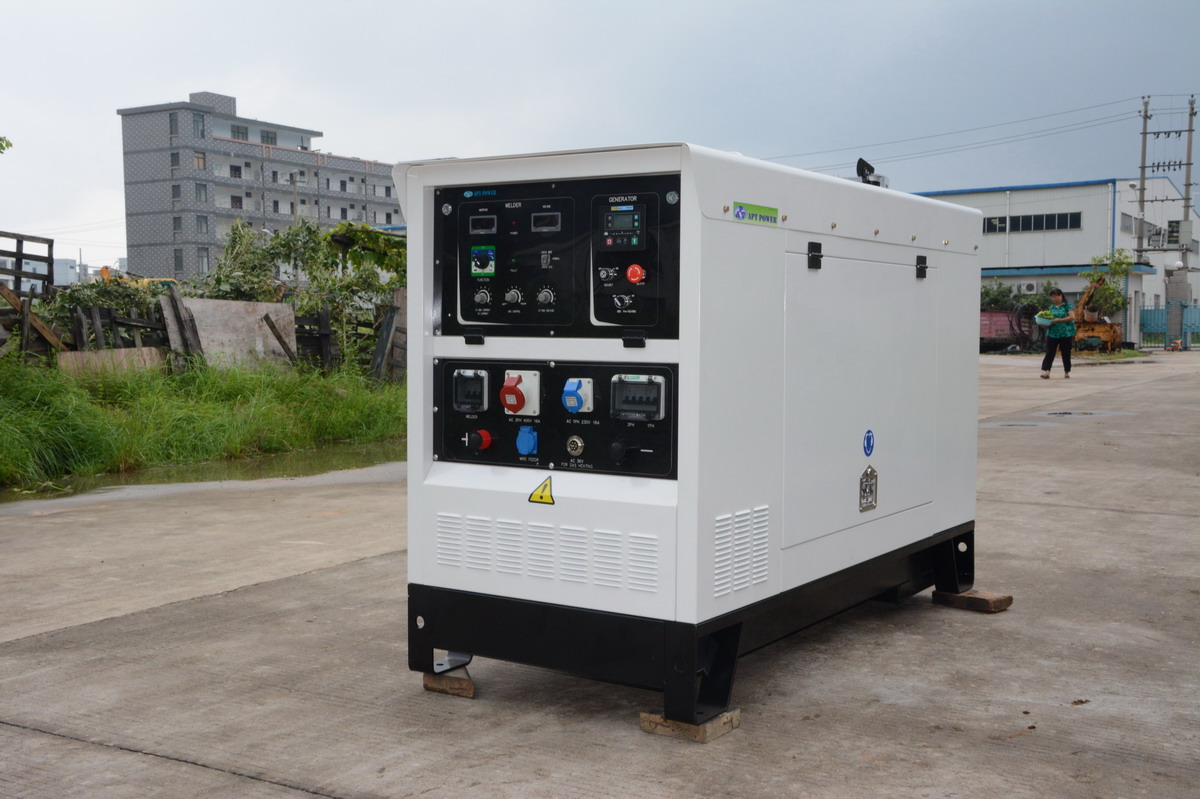

Welding Generator Cutting Tools Powered by Perkins Diesel Engine Running at 1500rpm 50Hz

Specifications

Products features:
Welding current: 270A
Output no-load voltage for CV: 51
Output no-load voltage for CC: 9
Welding processes: Manual Welding(MMA)/Gas Metal Arc Welding(GMAW including MAG and MIG)/Argon Arc Welding(TIG)
Engine brand: Perkins
Engine model: 404D-22G/20.3kW
Alternator brand: APT power
Cooling method: water-cooled
Rated output: 3.8kVA/1-Ph, 12.5kVA/3-Ph
Frequency: 50Hz
Rated speed: 1,500rpm
Control system: automatic
Gen-set IP protection: IP34
Fuel tank: for generator set 6-8 hours continue run
Engine: Fawde, Deutz (China) Air-cooled, Cummins, Deutz Air-cooled, Changchai for choice
Welding currents: 300, 350 and 500, 700 and 1000 for your choice
Welding function: MIG, MMA and TIG in one welding generator setNote:Special alternator with advanced and particular design: whenyou are welding, can supply AC electricity with three phase and single phase for the equipment in the working side, the independence output of single phase to ensure balance of output of three phase
When not welding, it can complete supplying electricity with three phase and single phase
Sound-proof and weatherproof design: suitable for working outdoor
Generator output: with 50Hz or 60Hz and difference voltage to meet the requirements of difference countries
Optional: can supply trailer for welding generator set, easy to move in working place
