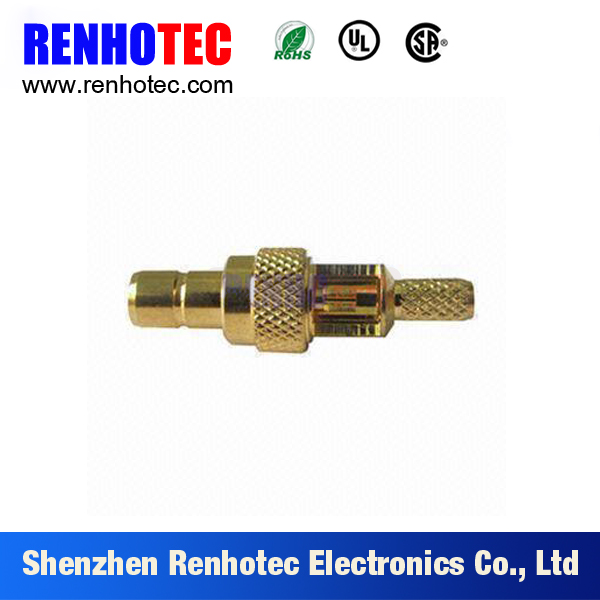

high quality Automotive SMB connector rf coaxial connector for rg147 cable wire assembly
| FOB Price: | 0.30 - 1.30 USD/Piece |
|---|---|
| Supply Ability: | 3,000,000 Piece/Pieces per Month |
| Shipping: | 7-10 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | carton |
Quick Details
- Gender: Female
- Application: Audio & Video
- Type: SMB
Specifications
SMB Connector Features and Benefits:
| Broadband performance with low reflection DC to 4 GHz provides low cost connector combined with high quality. |
| Quick connect/disconnect snap-on mating reduces installation time. |
| Various plating options in nickel, gold, and tin lead. Selective plating provides corrosion resistance finish as well as good solderability characteristics. |
| SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force. This is ideal for mating a high number of connectors on a pair of PCB's. |
SMB Connector 50 Ω Specifications:
| Electrical | |
| Impedance | 50 Ω |
| Frequency Range | 0-4 GHz with low reflection; usable to 10.0 GHz |
| Voltage Rating for RG-188/U Cable | 335 volts at sea level and 85 volts at 70,000 feet |
| Dielectric Withstanding Voltage | RG-196: 750 VRMS; RG-188: 1,000 VRMS |
| VSWR |
Straight connector, RG-196/U: 1.30 + .04 f (GHz) Right angle connector, RG-196/U: 1.45 + .06 f (GHz) Straight connector, RG-188/U: 1.25 + .04 f (GHz) Right angle connector, RG-188/U: 1.35 + .04 f (GHz) |
| Contact Resistance |
Center contact: 6.0 mΩ initial, 8.0 after environmental; Outer contact: 1.0 mΩ initial, 1.5 after environmental Braid to body: 1.0 mΩ initial, after environmental N/A |
| Insulation Resistance | 1,000 MΩ minimum |
| Insertion Loss |
Straight connector: 0.30 dB @ 1.5 GHz Right angle connector: 0.60 dB @ 1.5 GHz |
| RF Leakage | -55 dB minimum @ 2-3 GHz |
| Mechanical | |
| Mating | Snap-on coupling per MIL-STD-348 |
| Braid/Jacket Cable Affixment | Hex crimp |
| Center Conductor Cable Affixment | Solder |
| Contact Captivation | All types unless noted otherwise |
| Cable Retention | Equal to breaking strength of cable employed |
| Engagement Forces |
Engagement: 14 lbs maximum Disengagement: 2 lbs minimum After 500 matings, 14 lbs maximum engagement and disengagement |
| Connector Durability | 500 mating cycles minimum |
| Material | |
| Center Contact |
Female: beryllium copper, gold-plated Male: brass or beryllium copper, gold-plated |
| Outer Contact Plating | Nickel or gold plating as indicated |
| Body | Brass per QQB-626, or zinc per ASTM B86-71 |
| Body Plating | Nickel or gold plating as indicated |
| Insulator | TFE |
| Crimp Ferrule | Annealed copper alloy |
| Environmental | |
| Temperature Range | - 65°C to +165°C |
| Thermal Shock | MIL-STD-202 method 107, test condition B (except high temperatures @ 200°C |
| Shock | MIL-STD-202 method 202, method 13, snap-on, test condition B; 75 G's @ 6 milliseconds ? sine |
| Vibration | MIL-STD-202 method 204, snap-on, test condition B; (15 G's) |
| Corrosion |
MIL-STD-202 method 101, test condition B. 5% salt solution |
