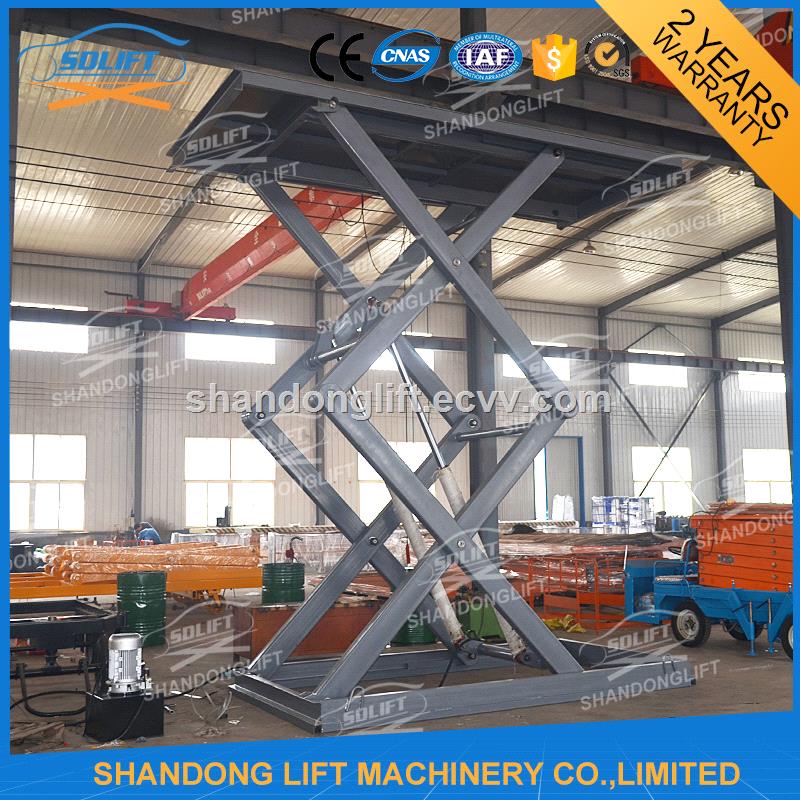

2.5m Automatic Hydraulic Scissor Type Garage Car Lift with CE

FOB Price: 4,000.00 - 5,800.00 USD/Set
Supply Ability: 5,000 Set(s) per Year
Shipping: FOB Qingdao
Payment Terms: L/C, T/T
Update Time: 2019/2/18
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details: Iron case or plywood case package

Quick Details

  • Warranty: 24Months
  • Model Number: SJG2-2.5
  • Brand Name: SDLIFT
  • Overall Width(mm): 2600mm
  • Lifting Height(mm): 2500mm
  • Lifting Capacity: 2000kgs
  • Type: One Cylinder Hydraulic Lift
  • Design: Scissor
  • power: 3.0kw
  • install: underground
  • Type of Products: hydraulic scissor car lift
  • Color: optional
  • Motor: customer required brand or Chinese famous brand
  • Safety device: explosion proof lock valve, emergency
  • Package: Iron case or plywood case package

Specifications


2.5m automatic hydraulic scissor type garage car lift with CE



Application:

-the Scissor Car Lift can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.
- Operation is easy. There are 2 sets control system installed on the Scissor Car Lift, 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.

 25m automatic hydraulic scissor type garage car lift with CE

Configuration:

1) Platform Material: rectangular tube +checkered iron

2) Scissor material: high strength Manganese Steel.

3) Hydraulic system: 380V/4.0Kw

4) High Precision Hydraulic Cylinder

5) Piston Rod: hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform

the models we supplied for clients:



MODEL

LOAD CAPACITY

PLATFORM SIZE

LIFT HEIGHT

PIT DEPTH

POWER

SJG2.5-3

2.5T

5.2m x 2.6m

3m

700mm

220V, 240V, 380V or 400V

SJG2-6.5

2T

5.2m x 2.8m

6.5m

750mm

220V, 240V, 380V or 400V

SJG2.5-3.5

2.5T

5.2m x 2.6m

3.5m

800mm

220V, 240V, 380V or 400V

SJG2.5-5

2.5T

5.6m x 3m

5m

750mm

220V, 240V, 380V or 400V

SJG3-2.5

3T

5m x 2.3m

2.5m

750mm

220V, 240V, 380V or 400V

SJG3-3

3T

5.2m x 2.6m

3m

800mm

220V, 240V, 380V or 400V

SJG3-3.5

3T

5.6m x 2.7m

3.5m

800mm

220V, 240V, 380V or 400V

SJG5-10

5T

4.5m x 2.5m

10m

1150mm

220V, 240V, 380V or 400V

SJG8-2.5

8T

6.5m x 4.5m

2.5m

850mm

220V, 240V, 380V or 400V

SJG12-3

12T

5.5m x 2.8m

3m

950mm

220V, 240V, 380V or 400V

SJG15-4.5

15T

8m x 2.2m

4.5m

1050mm

220V, 240V, 380V or 400V

SJG20-5

20T

6m x 3m

5m

950mm

220V, 240V, 380V or 400V

the Scissor Car Lift car can be customized as your detailed size.

Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) the safety guard rails to guarantee safety of the car above platform
3) the limit switch system helps the Car Lift for sale Hydraulic Car Scissor Lift to stop at accurate position
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the Car Lift for sale Hydraulic Car Scissor Lifts are passed 1.2 times loading test before leaving factory.

Packaging & Shipping:

25m automatic hydraulic scissor type garage car lift with CE

the Certificates:

25m automatic hydraulic scissor type garage car lift with CE

Our services:

1) the Scissor Car Lift can be done as your request

2) Shipment can be arranged from our port to your destination port.

3) Operation video can be sent to you if needed.

4) English manual for car lift installation, using and maintenance.

5) 2 years warranty for whole machine without man-made faults.
6) We will send you parts for free with non-human factor faults during warranty time.
7) Supply 24-hours technical assistance by email, telephone or skype.
8) Engineers are available to your country if necessary.

 25m automatic hydraulic scissor type garage car lift with CE
