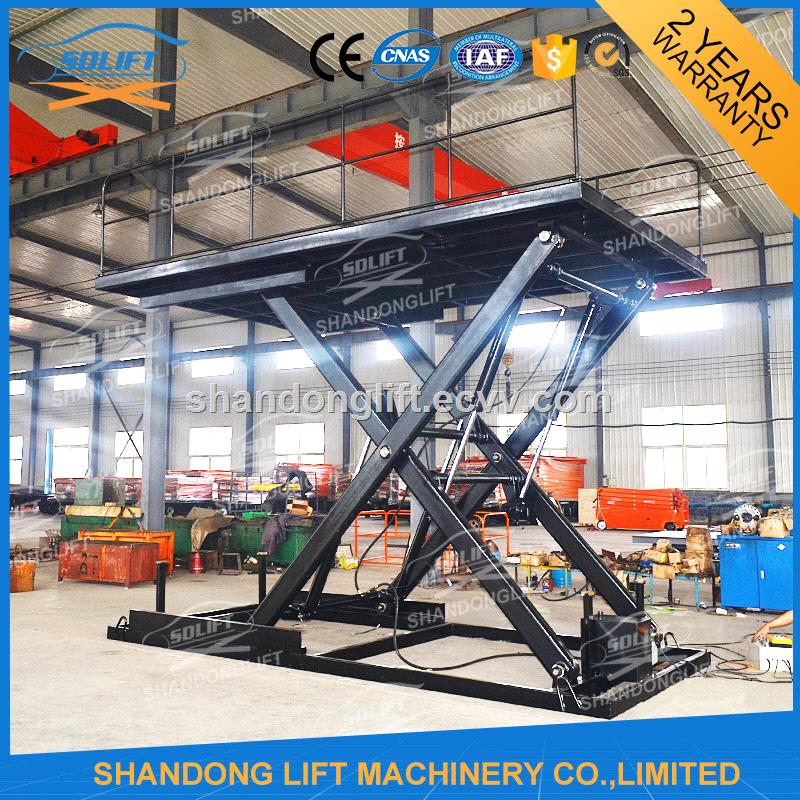

3m Electrical Scissor Hydraulic Car Lift for Home Garages

FOB Price:	2,000.00 - 4,800.00 USD/Set
Supply Ability:	5,000 Set(s) per Year
Shipping:	FOB Qingdao
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Iron case or plywood case package

Quick Details

Warranty: 24Months
Model Number: SJG2.5-3
Brand Name: SDLIFT
Overall Width(mm): 2800mm
Lifting Height(mm): 3000mm
Lifting Capacity: 2500kgs
Type: Double Cylinder Hydraulic Lift
Design: Scissor
power: 3.0kw
install: underground
Type of Products: hydraulic scissor car lift
Color: optional
Motor: customer required brand or Chinese famous brand
Safety device: explosion proof lock valve, emergency
Package: Iron case or plywood case package

Specifications

3m electrical scissor hydraulic car lift for home garages

Application:

- the car lift platform can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.

- Operation is easy. There are 2 sets control system installed on the car lift platform, 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.

the frequent models we supplied for our clients:

MODEL	LOAD CAPACITY	PLATFORM SIZE	LIFT HEIGHT	PIT DEPTH	POWER
SJG2.5-3	2.5T	5.2m x 2.6m	3m	750mm	220V, 240V, 380V or 400V
SJG2-6.5	2T	5.2m x 2.8m	6.5m	800mm	220V, 240V, 380V or 400V
SJG2.5-3.5	2.5T	5.2m x 2.6m	3.5m	800mm	220V, 240V, 380V or 400V
SJG2.5-5	2.5T	5.6m x 3m	5m	800mm	220V, 240V, 380V or 400V
SJG3-2.5	3T	5m x 2.3m	2.5m	750mm	220V, 240V, 380V or 400V
SJG3-3	3T	5.2m x 2.6m	3m	800mm	220V, 240V, 380V or 400V
SJG3-3.5	3T	5.6m x 2.7m	3.5m	800mm	220V, 240V, 380V or 400V
SJG5-10	5T	4.5m x 2.5m	10m	1150mm	220V, 240V, 380V or 400V
SJG8-2.5	8T	6.5m x 4.5m	2.5m	850mm	220V, 240V, 380V or 400V
SJG12-3	12T	5.5m x 2.8m	3m	950mm	220V, 240V, 380V or 400V
SJG15-4.5	15T	8m x 2.2m	4.5m	1150mm	220V, 240V, 380V or 400V
SJG20-5	20T	6m x 3m	5m	1200mm	220V, 240V, 380V or 400V
the car lift platform can be customized as your detailed size.

Configuration:

1) Platform Material: rectangular tube + checkered iron

2) Scissor material: high strength Manganese Steel.

3) Hydraulic system: 220v, 380v, or other.

4) High Precision Hydraulic Cylinder
5) Piston Rod:hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform

Parts showing:

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.

2) the safety rails to guarantee safety of the cars above the platform.

3) the limit switch system helps car lift platform to stop at accurate position.

4) Electricity leakage protection device is equipped on, all electric components are CE certified.

5) All the car lift platform Are passed 1.2 times loading test before leaving factory.

the cUstomers visiting:

the Certificates:

3m electrical scissor hydraulic car lift for home garages

Our services:

1) We can design the customerized car lift platform as per your requirement.

2) the most suitable car lift platform will be recommended to you once we got your requirement.

3) Shipment can be arranged from our port to your destination port.

4) Operation video can be sent to you if needed.

5) User-friendly English manual for machine installation using and maintenance.

6) Two year warranty for whole machine without man-made faults.

7) We will send you parts for free if there are any non-human factors faults during warranty time.

8) Supply 24-hours technical assistance by email, telephone or other communication online.

9)We could reply you in 2 hours after received your any questions even on weekend and holiday.

Engineers are available to your country if necessary.
