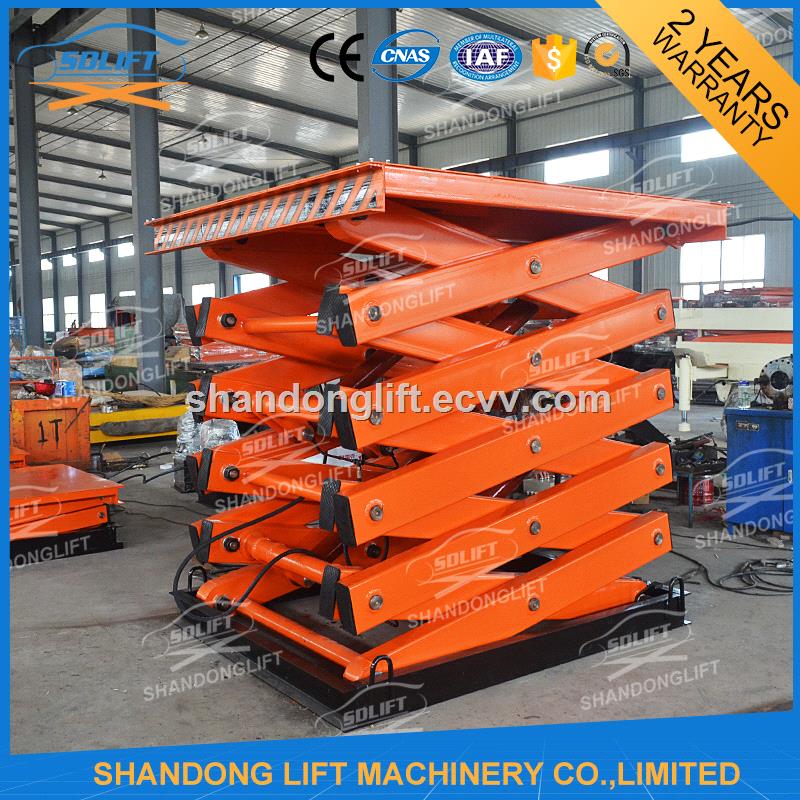

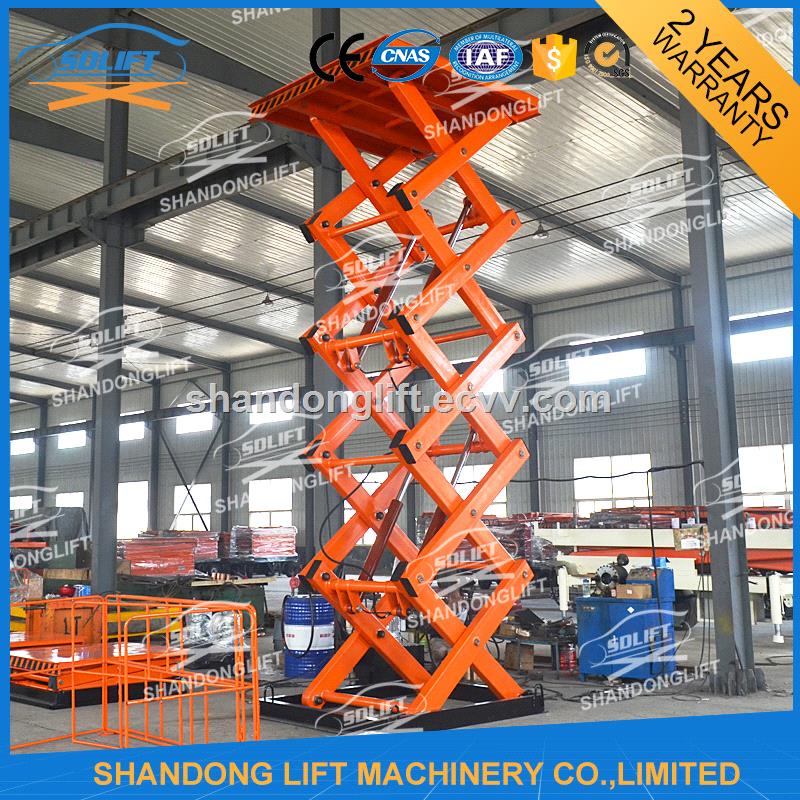

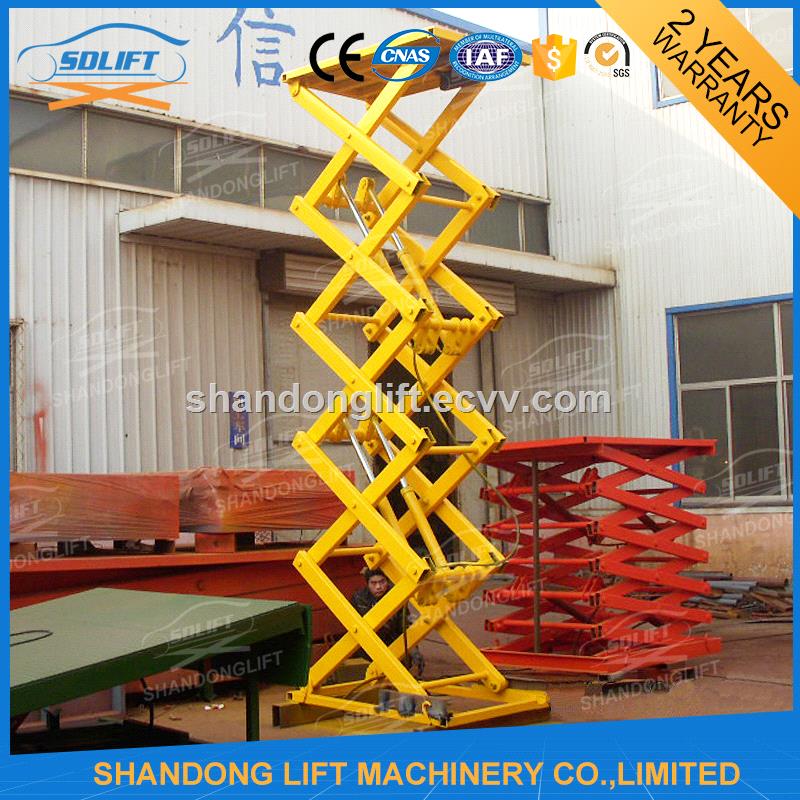

6m Stationary Electric Hydraulic Scissors Lifting Platform
| FOB Price: | 4,000.00 - 8,000.00 USD/Set |
|---|---|
| Supply Ability: | 1,000 Set(s) per Year |
| Shipping: | FOB Qingdao |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Iron case or plywood case package |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 24monthes
- Certification: CE , SGS
- Weight: 2000kgs
- Overall Dimensions: 4000mm*3000mm*400mm
- Table Size: 4000mm*3000mm
- Max. Lifting Height: 6000mm
- Min. Lifting Height: 500mm
- Rated Loading Capacity: 2000kgs
- Power: 3.0kw
- Lift Drive / Actuation: Hydraulic
- Lift Mechanism: Scissor Lift
- Model Number: SJG2-6
- Brand Name: SDLIFT
- handrail: 4 sides
- installation: underground
- Safety device: explosion proof lock valve, emergency
- Stationary Hydraulic Scissor Lift: scissor lift
- Motor: customer required brand or Chinese famous brand
- Color: optional
- Package: Iron case or plywood case package
Specifications
6m stationary electric hydraulic scissors lifting platform:
Product description:
MODEL |
LOAD CAPACITY |
PLATFORM SIZE |
LIFT HEIGHT |
PIT DEPTH |
POWER |
SJG2.5-3 |
2.5T |
5.2m x 2.6m |
3m |
750mm |
220V, 240V, 380V or 400V |
SJG2-6.5 |
2T |
5.2m x 2.8m |
6.5m |
800mm |
220V, 240V, 380V or 400V |
SJG2.5-3.5 |
2.5T |
5.2m x 2.6m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
SJG2.5-5 |
2.5T |
5.6m x 3m |
5m |
800mm |
220V, 240V, 380V or 400V |
SJG3-2.5 |
3T |
5m x 2.3m |
2.5m |
750mm |
220V, 240V, 380V or 400V |
SJG3-3 |
3T |
5.2m x 2.6m |
3m |
800mm |
220V, 240V, 380V or 400V |
SJG3-3.5 |
3T |
5.6m x 2.7m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
SJG5-10 |
5T |
4.5m x 2.5m |
10m |
1150mm |
220V, 240V, 380V or 400V |
SJG8-2.5 |
8T |
6.5m x 4.5m |
2.5m |
850mm |
220V, 240V, 380V or 400V |
SJG12-3 |
12T |
5.5m x 2.8m |
3m |
950mm |
220V, 240V, 380V or 400V |
SJG15-4.5 |
15T |
8m x 2.2m |
4.5m |
1150mm |
220V, 240V, 380V or 400V |
SJG20-5 |
20T |
6m x 3m |
5m |
1200mm |
220V, 240V, 380V or 400V |
the stationary electric scissor lift platform can be customized as your detailed size. | |||||
Configuration:
1) Platform Material: rectangular tube + checkered iron
2) Scissor material: high strength Manganese Steel.
3) Hydraulic system: 380V/5.5Kw
4) High Precision Hydraulic Cylinder
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 45#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) the safety rails to guarantee safety of the goods above lift platform.
3) Equipped 4 guide rails, to ensure the stationary electric scissor lift platform runs more smoothly and steadily.
4) the limit switch system helps stationary electric scissor lift platform to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric components are CE certified.
6) All the stationary electric scissor lift platform are passed 1.2 times loading test before.
Our services:
1) We can design the customerized stationary electric scissor lift platform as per your requirement.
2) the most suitable stationary electric scissor lift platform will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) the guarantee is 12 months. Two set spare parts is free for you together with product.
6) 24 Hours technical support, email, telephone or Skype.
Company information:
We are a specialized manufacture in the production of all kinds of lift tables. Includes stationary scissor lift table, hydraulic scissor car lift, double car park lift, guide rail cargo lift, wheelchair lift, trailing scissor lift, trailing aluminum alloy mast lift, trailing articulated boom lift, self-propelled scissor lift table, and mobile and fixed dock rampWe are a specialized manufacture in the production of all kinds of lift tables. Includes stationary scissor lift table, hydraulic scissor car lift, double car park lift, guide rail cargo lift, wheelchair lift, trailing scissor lift, trailing aluminum alloy mast lift, trailing articulated boom lift, self-propelled scissor lift table, and mobile and fixed dock ramp.
