Hydraulic Electric Scissor Lift Platform / Table with CE
| FOB Price: | 2,000.00 - 4,800.00 USD/Set |
|---|---|
| Supply Ability: | 5,000 Set(s) per Year |
| Shipping: | FOB Qingdao |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Iron case or plywood case package |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 24months
- Certification: CE
- Weight: 3900Kgs
- Overall Dimensions: 3700mm*2000mm*3030mm
- Table Size: 3230mm*1600mm
- Max. Lifting Height: 10,000mm
- Min. Lifting Height: 450mm
- Rated Loading Capacity: 300Kgs
- Power: 3.0kw
- Lift Drive / Actuation: Hydraulic
- Lift Mechanism: Scissor Lift
- Model Number: SJY0.3-10
- Brand Name: SDLIFT
- safety device: explosion-proof lock valve
- mobile: 4 wheels
- power: electric and hyraulic
- style: scissor aerial work platform
- lift system: hydraulic system
Specifications
Application:
the work platform is widely used for aerial work, decoration, street lamp maintenance and building cleaning etc.
Product List:
Model |
Capacity |
Table size |
Max height |
Work height |
Total dimension |
Net weight |
SJY0.3-4 |
300Kgs |
1500×750mm |
4m |
5.7m |
1850×900×1900mm |
400Kgs |
SJY0.3-6 |
300Kgs |
1500×750mm |
6m |
7.7m |
1850×900×1970mm |
650Kgs |
SJY0.3-8 |
300Kgs |
1650×1000mm |
8m |
9.7m |
2100×1200×2460mm |
1200Kgs |
SJY0.5-8 |
500Kgs |
1980×1220mm |
8m |
9.7m |
2500×1550×2380mm |
1400Kgs |
SJY0.8-8 |
800Kgs |
2000×1220mm |
8m |
9.7m |
2600×1550×2640mm |
1700Kgs |
SJY0.3-10 |
300Kgs |
2100×1220mm |
10m |
11.7m |
2700×1550×2380mm |
1500Kgs |
SJY0.5-10 |
500Kgs |
2100×1220mm |
10m |
11.7m |
2700×1550×2380mm |
1600Kgs |
SJY1.0-10 |
1000Kgs |
2220×1220mm |
10m |
11.7m |
2820×1720×2850mm |
2380Kgs |
SIY0.3-12 |
300Kgs |
2550×1500mm |
12m |
13.7m |
3150×1860×2850mm |
2580Kgs |
SIY0.5-12 |
500Kgs |
2550×1500mm |
12m |
13.7m |
3150×1860×2850mm |
2780Kgs |
SJY1.0-12 |
1000Kgs |
2600×1500mm |
12m |
13.7m |
3200×2015×3090mm |
3580Kgs |
SJY0.3-14 |
300Kgs |
2990×1600mm |
14m |
15.7m |
3600×2000×2850mm |
3000Kgs |
SJY0.5-14 |
500Kgs |
2990×1600mm |
14m |
15.7m |
3600×2000×2850mm |
3200Kgs |
SJY0.3-16 |
300Kgs |
3230×1600mm |
16m |
17.7m |
3700×2000×3030mm |
3900Kgs |
SJY0.3-18 |
300Kgs |
3230×1600mm |
18m |
19.7m |
3700×2000×3250mm |
4500Kgs |
SJY0.3-20 |
300Kgs |
3230×1600mm |
20m |
21.7m |
3700×2000×3450mm |
5100Kgs |

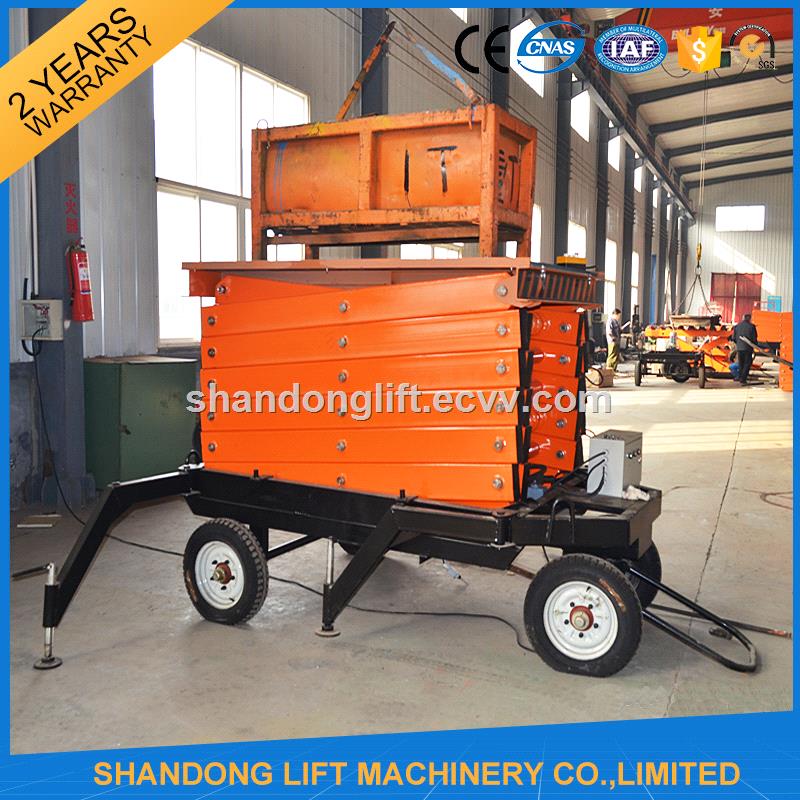

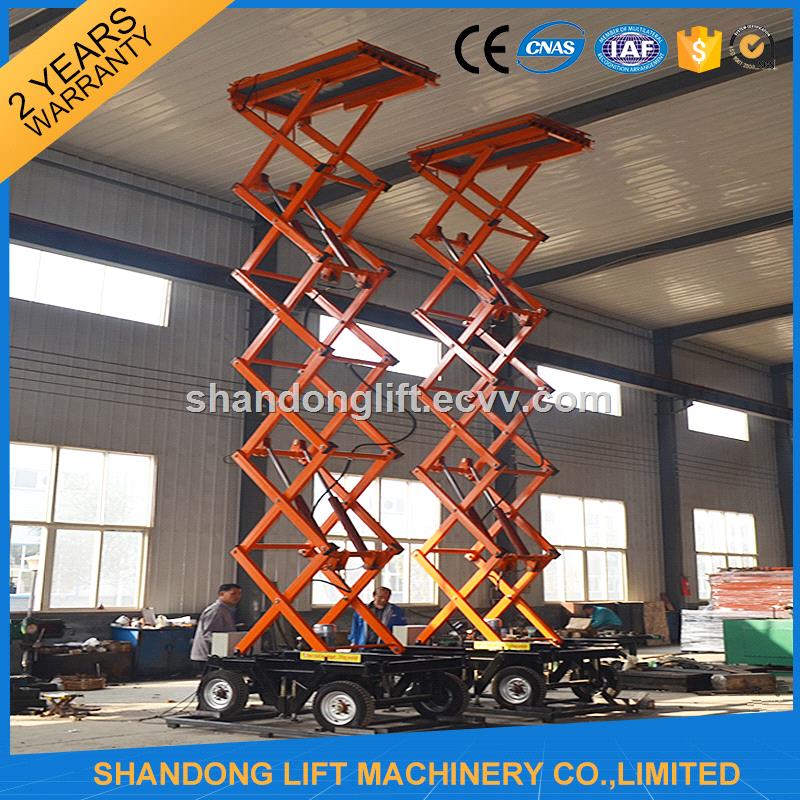

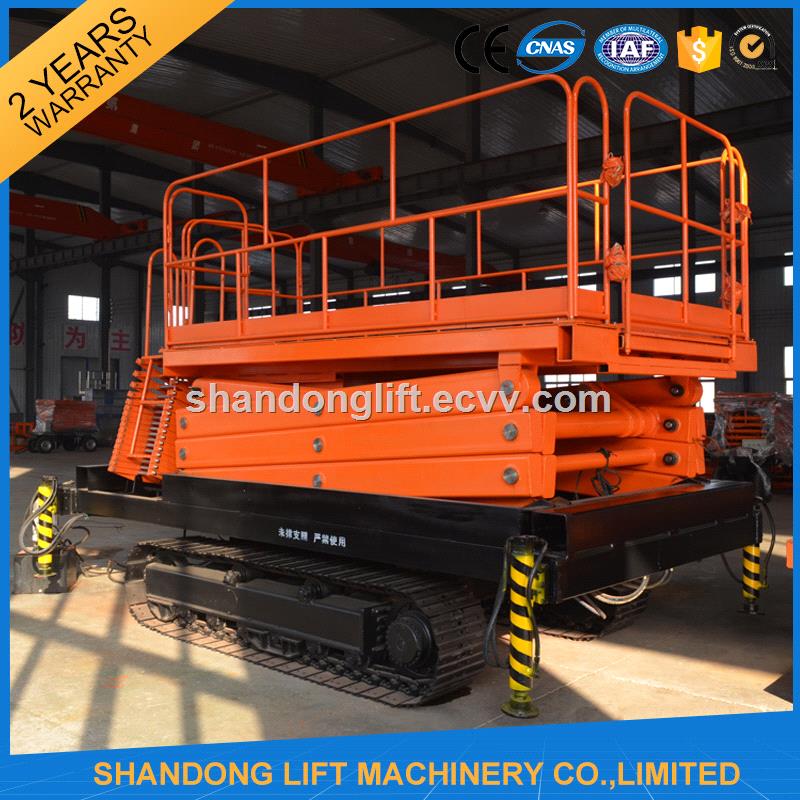

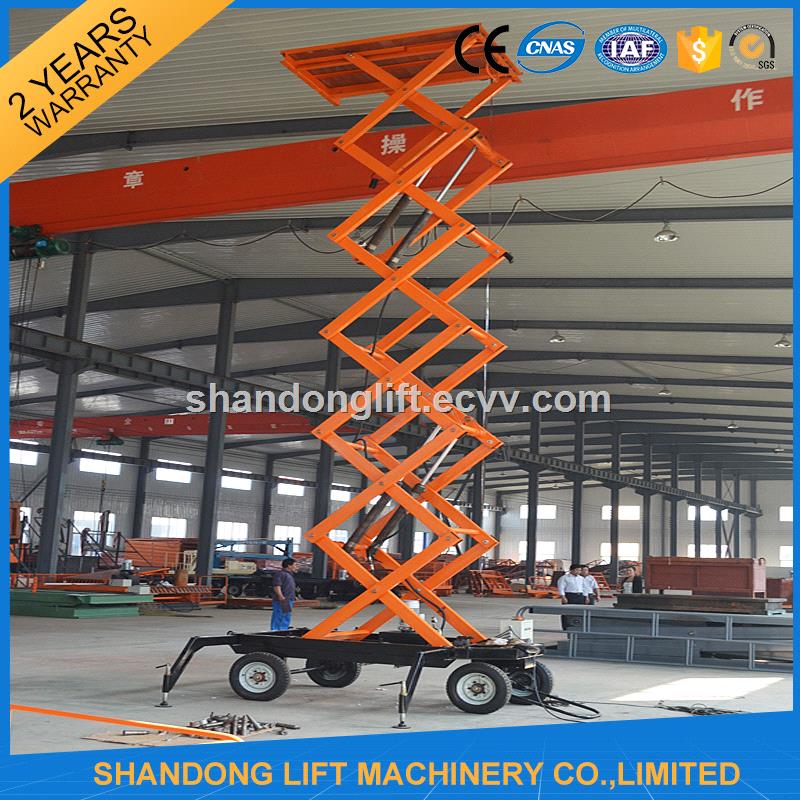

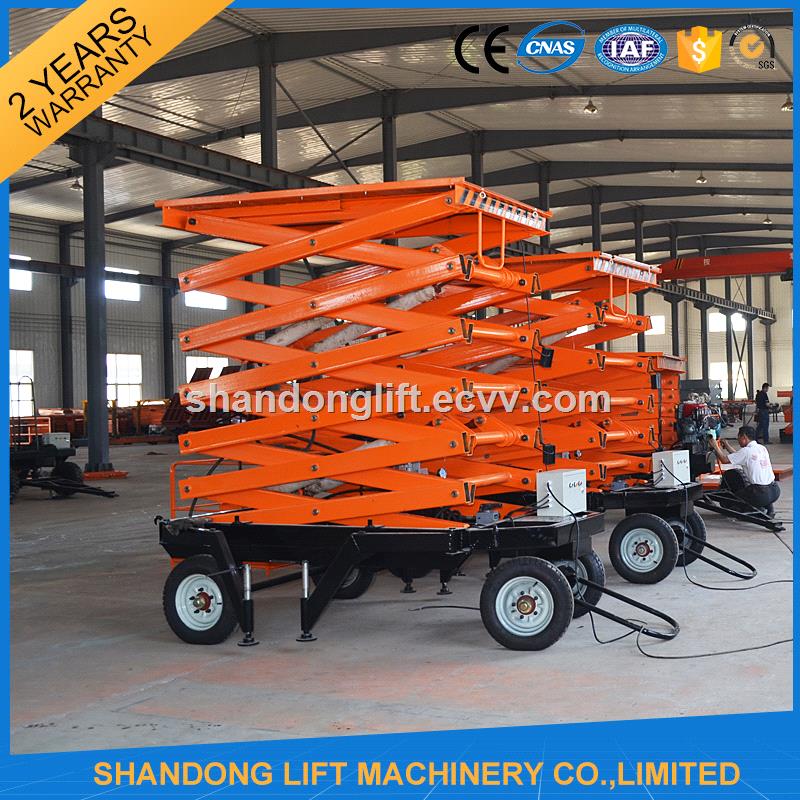

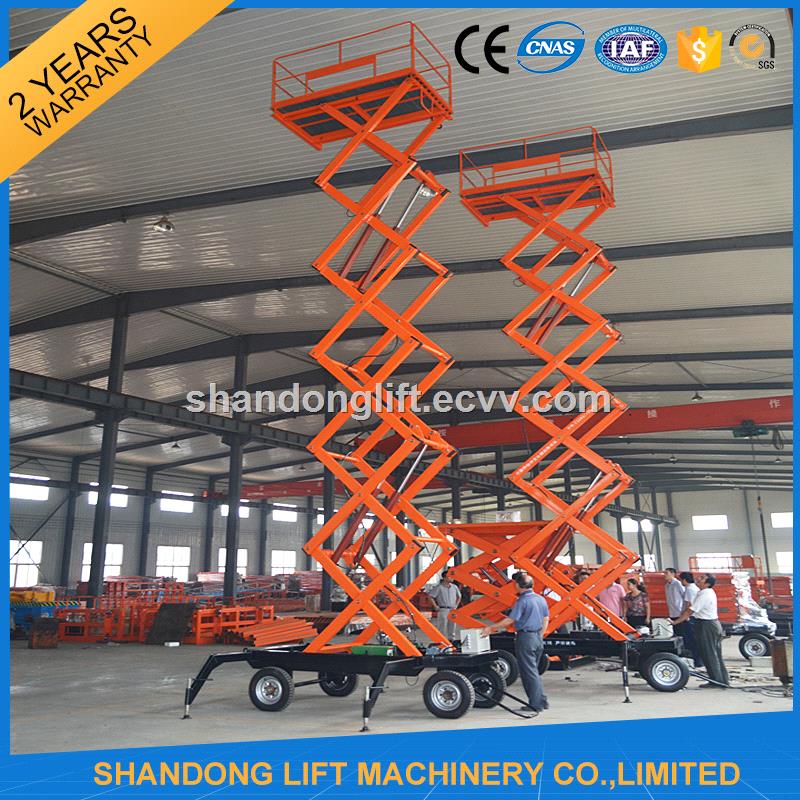

Parts Showing:
Configuration:
1) Platform Material: rectangular tube + checkered iron
2) Scissor material: high strength Manganese Steel.
3) Hydraulic system: 380V/3.0Kw
4) High Precision Hydraulic Cylinder
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) the safety rails to guarantee safety of the people above work platform.
3) the limit switch system helps the work platform to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the work platform are passed 1.2 times loading test before leaving factory.
Our Services
1) We can design the customerized work platform as per your requirement.
2) the most suitable work platform will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) We could reply you in 2 hours after received your any questions even on weekend and holiday.
Engineers are available to your country if necessary.
