Zhengzhou Lead Equipment Co., Ltd.
China Manufacturer with main products: Shotcrete/Gunite Machine, Hose/Peristaltic Pump, Grout Pump, Concrete Pump, Foam Concrete Machine, Mud Pump, Mortar Pump |

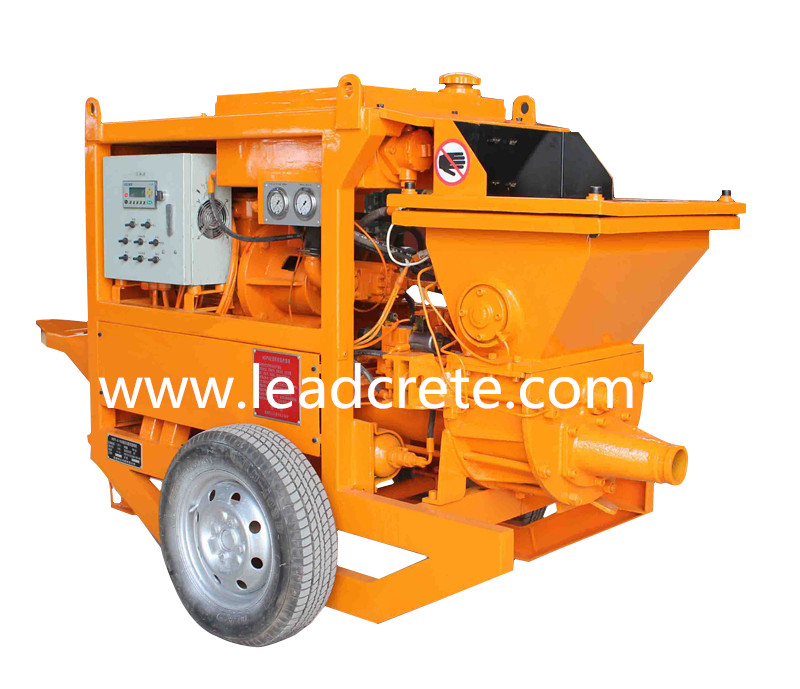

LPS-7 Wet Concrete Spraying Machine
| Supply Ability: | 1,000 Set(s) per Month |
|---|---|
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Brand Name: LPS-7
- COLOR: customize
- name: wet concrete spraying machine
- Weight: 960kg
- Model Number: 1year
- product type: wet concrete spraying machine
- Productivity: 7m3/h
- Max. particle size: 15mm
- Fineness modulus of aggregate: 2.5
- Dosage of liquid accelerator: 3.5%
- Hose diameter: 51mm
- Systematic wind pressure: 0.5MPa
- Pump outlet pressure: 6MPa
- Wind consumption: 6m3/min
- Dust alongside machine: 6mg/m3
Specifications
LPS-7 multi-function wet concrete spraying machine
Mainly used for wet spraying for roads, railways, mining and tunnel, spraying
Mixed vegetation for slope of road and railway, grouting for wall, pumping fine
Aggregate concrete and so on. It's adopted internationally hydraulically driven
Wet spray technology, thus transmission distance and height increased 3-5 times
Than the rotor wet spray machine.
Application:
It's mainly used for wet spraying for Roads, railways, mining and tunnel, spraying mixed vegetation for slope of road and railway, grouting for wall, pumping fine aggregate concrete and so on.
LPS-7 wet concrete spraying machine data:
Parameter |
Unit |
Data | |
Productivity |
M3/h |
7 | |
Max. Particle size |
mm |
15 | |
Fineness modulus of aggregate |
|
2.5 | |
Dosage of liquid accelerator |
% |
3.5 | |
Hose diameter |
mm |
51 (2) | |
Concrete slump |
cm |
815 | |
Systematic wind pressure |
MPa |
0.5 | |
Pump outlet pressure |
MPa |
6 | |
Wind consumption |
M3/min |
6 | |
Max. Conveying distance |
Horizontal |
m |
300 |
Vertical |
m |
80 | |
Dust alongside machine |
Mg/m3 |
<6 | |
Rebound(under standard technology) |
% |
Average15 | |
Motor power |
kW |
11/15 | |
Gauge |
mm |
600.762.900 | |
Overall dimension(Tyre type)(LWH) |
mm |
250010101450 | |
Weight |
kg |
960 | |
Note: It's optional for tyre type and track Type walking structure.
LPS-7 wet concrete spraying machine features:
1, Wet spraying machine has stepless speed change. the conveying output is
0-7 cubic meters / hour.
2, the machine has hydraulic power. the
Export is connected with high pressure hose. the nozzle is connected with a
Small 10 cubic meters of air compressors to achieve wet spraying. this changed
the traditional use of large 20 cubic meters of air compressor.
3, Compared with rotary pneumatic wet spraying machine, this machine has a
Smaller size, superior performance, lower maintenance costs, easier to
Operation, better flexibility, and widely range of applications
A complete set of wet shotcrete machine
No. |
Name |
Model |
Unit |
Qty. |
1 |
High pressure conveying hose |
215M |
|
1 |
2 |
Reducer |
3-2 |
pcs |
1 |
3 |
High pressure conveying elbow |
390 |
pcs |
2 |
4 |
|
3 |
pcs |
3 |
5 |
High pressure conveying pipe clamp |
2 |
pcs |
2 |
6 |
Nozzle assy. |
2 |
set |
1 |
7 |
Air hose |
125M |
pcs |
1 |
8 |
Hose for additive |
20M |
pcs |
1 |
