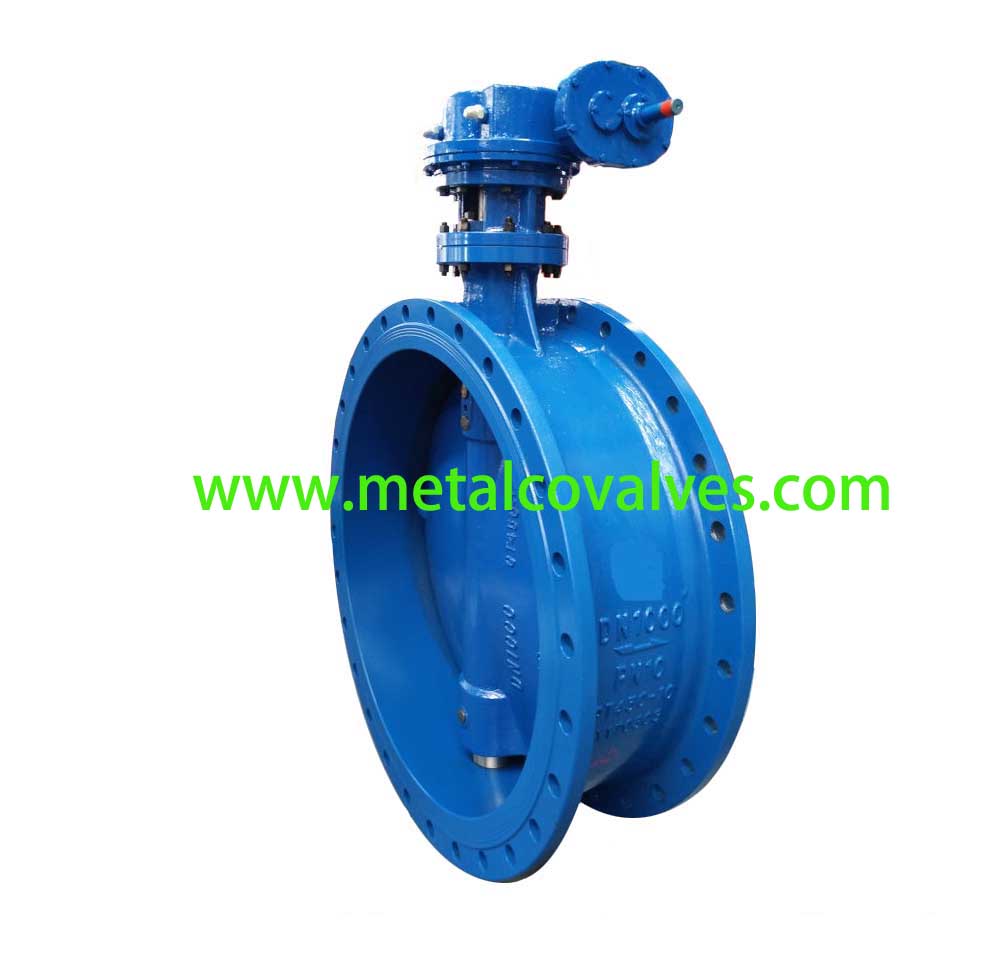

Double Eccentrice Double Flange Butterfly Valve PN10/16/25/40 BS DIN ANSI China

Payment Terms: L/C, D/A, T/T
Inquiry Now Start Order
Follow ECVV to get products trends and industry news

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

  • Brand Name: METALCO
  • Temperature of Media: Medium Temperature
  • Material: Casting
  • Pressure: Low Pressure
  • Standard or Nonstandard: Standard
  • Media: Water
  • Power: Manual
  • Structure: Butterfly

Specifications

double eccentrice double flange butterfly valve PN10162540 BS DIN ANSI China

No. Parts Name Material No Parts Name Material
1 Cover Carbon Steel 7 Disc Ductile Iron
2 Body Ductile Iron 8 Retainer Q235
3 Bushing PTFE 9 Packing  Graphite
4 Sealing Seat SS304 10 Gland Carbon Steel
5 Seal Ring EPDM 11 Yoke Carbon Steel
6 Stem SS420 12 Gear Box Ductile Iron


DN PN Series 13 Series 14 D D0 D1 n-d f b H # H1 #
200 10 152 230 340 266 295 8-23 3 20 326 188
16 340 266 295 12-23 20 326 188
250 10 165 250 395 319 350 12-23 3 22 354 214
16 405 319 355 12-28 22 370 225
300 10 178 270 445 370 400 12-23 4 24.5 418 258
16 460 370 410 12-28 24.5 440 275
350 10 190 290 505 429 460 16-23 4 24.5 453 285
16 520 429 470 16-28 26.5 460 290
400 10 216 310 565 480 515 16-28 4 24.5 512 308
16 580 480 525 16-31 28 540 315
450 10 222 330 615 530 565 20-28 4 25.5 536 334
16 640 548 585 20-31 30 565 361
500 10 229 350 670 582 620 20-28 4 26.5 590 360
16 715 609 650 20-34 31.5 632 365
DN PN Series 13 Series 14 D D0 D1 n-d f b H # H1 #
600 10 267 390 780 682 725 20-31 5 30 660 425
16 840 720 770 20-37 36 695 425
700 10 292 430 895 794 840 24-31 5 32.5 730 485
16 910 794 840 24-37 39.5 745 490
800 10 318 470 1015 901 950 24-34 5 35 824 545
16 1025 901 950 24-41 43 836 575
900 10 330 510 1115 1001 1050 28-34 5 37.5 900 610
16 1125 1001 1050 28-41 46.5 930 610
1000 10 410 550 1230 1112 1160 28-37 5 40 1005 658
16 1255 1112 1170 28-44 50 1005 658
1200 10 470 630 1455 1328 1380 32-41 5 45 1130 785
16 1485 1328 1390 32-50 57 1130 785
1400 10 530 710 1675 1530 1590 36-44 5 46 1295 915
16 1685 1530 1590 36-50 60 1295 915
1500 10 600 760 1785 1640 1700 36-44 5 47 1375 1015
16 1820 1640 1710 36-57 62.5 1375 1015
1600 10 600 790 1915 1750 1820 40-50 5 49 1455 1035
16 1930 1750 1820 40-57 65 1455 1035
1800 10 670 870 2115 1950 2020 44-50 5 52 1656 1150
16 2130 1950 2020 44-57 70 1656 1150
2000 10 760 950 2325 2150 2230 48-50 5 55 1842 1328
16 2345 2150 2230 48-62 75 1842 1328
