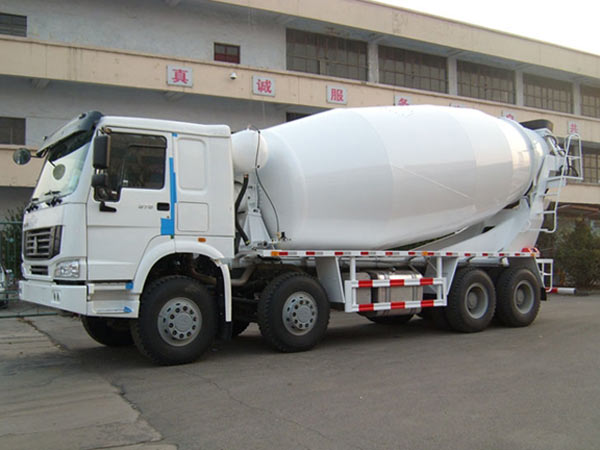

14 M3 SINOTRUK HOWO Concrete Mixer Truck 8X4 371HP

Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Concrete Pump Mounted on Truck / Concrete Truck

Price:

Min. Order:1 Set
HJC5270THB Truck Mounted Concrete Boom Pump / C...

Price:

Min. Order:
Sinotruk SWZ Concrete Mixer Truck 10-16cbm 8x4

Price:30000.00 USD/Unit

Min. Order:1 Unit

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China

Quick Details

Gross Vehicle Weight: 31000
Model Number: ZZ1317N3261W
Brand Name: howo

Specifications

12 M3 SINOTRUK HOWO Concrete Mixer Truck 6X4 371HP

Model: ZZ1317N3261W,EUROII
Drive type: 8x4
Cab: HW76 flat roof cab with one sleeper bed, with A/C
Engine model: SINOTRUK WD615.87, EUROⅡ
Engine power: 371hp
Tires: 12.00R20,10+1
Body drum capacity: 12 m3
With EATON hydraulic pump and motor, Italy decelerator
Other technical details according to CNHTC factory standard

12M3 SINOTRUK HOWO Concrete Mixer Truck 371HP
Cab	Model	HW76
	Driving type	Left hand drive(RHD optional)
	Type	HW76 flat roof cab with one sleeper bed, with A/C
Engine	Model	WD615.47
	Max. output	273KW/2200rpm(371hp)
	Max torque	1460Nm/1300-1600rpm
	Displacement	9.726 L
	Type	Inline 6 cylinder with water cooling supercharged inter cooling .
Clutch	Φ430 diaphragm spring clutch, hydraulic control air power assisted . Standard 430A for WD615.47
Transmission	HW19710, 10 speeds
Front axle	HF9 drum type, 9 tons
Driving axle	HC16 double reduction,2*16 tons
Suspension	Front and rear suspension are leaf springs. Front suspension has shock absorbers and horizontal stabilizer, and rear suspension type is the suspension with lateral stabilizer
Steering	ZF8098
Brakes	Service brake : dual-circuit pneumatic brake ; Parking brake : energy storage spring cutoff brake ; Auxiliary brake : engine exhaust brake; EVB,ABS and automatic slack adjuster optional
Wheel & tires	12.00R20 (11.00R20 is optional),10+1 spare
Fuel tank	300 L
Weight in kg	Curb weight		14600
	Gross vehicle weight		31000
	Rated loading capacity		16270
Dimension in mm	Overall dimension		10150 X 2496 X 3900
	Wheel base		1800+3200+1350
	Front/rear wheel track		2022/1850
	Front/rear overhang		1500/2300
	Approach/departure angle		16 / 18(°)
	Min. ground clearance		314
Performance	Max. speed		75 km/h
	Max. grade ability		50 %
	Min. turning diameter		23.7 m
Mixer Drum Body	Tank body size(mm)		12 M3
	Rotating speed		0-18 r/min
	Discharged remain ratio		<0.2%
	Water Tank		400L
	Hydraulic pump and motor		EATON089 (America)
	Decelerator		P68 (Italy)
