Shandong Sunbright Auto Sales Co., Ltd.
China Manufacturer with main products: Howo Trucks, Semi-Trailer, Tractor Trucks, Dump Trucks, Tipper Trucks, Heavy Trucks, Tanker Trucks, Concrete Mixer Trucks |

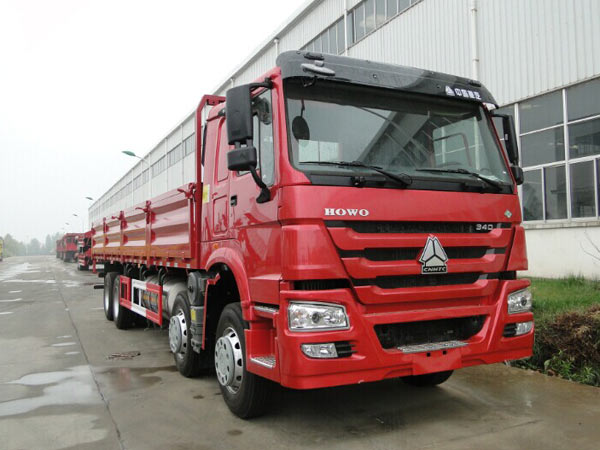

SINOTRUK HOWO 8x4 Series Cargo Truck Capacity 15.7M3 371Hp
| FOB Price: | 30,000.00 - 50,000.00 USD/Unit |
|---|---|
| Supply Ability: | 1,000 Unit/Units per Month |
| Shipping: | Tianjin/ Shanghai |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
Quick Details
- Model Number: ZZ1317N3867A
- Brand Name: SINOTRUK HOWO 8x4 Series Cargo Truck Capacity 15.7M3 371Hp
- Engine Capacity: > 8L
- Fuel Type: Diesel
- Emission Standard: Euro 2
- Transmission Type: Automatic
- Horsepower: 351 - 450hp
- Drive Wheel: 8x4
- Condition: New
Specifications
Model: ZZ1317N3867A, EUROII
Driving Mode: Left Hand Drive (RHD is optional)
Cab: HW79 high roof cab with 2 bed, with A/C
Engine: SINOTRUK WD615.47, 371HP
Transmission: HW19710, 10 speeds
Front axle: HF7 drum type, 7 tons
Driving axles: ST16 single reduction axles, 16 tons
Steering: ZF8098, German advanced technology
Tires: 12.00R20 (11.00R20), 12+1 spare
Fuel tank: 400L
Cargo body capacity: 11.8(15.7 is optional) CBM
Thickness of cargo body (mm): floor 3, side & back 1.5
Other technical details according to CNHTC factory standard
Detail parameters:
|
Model |
SINOTRUK HOWO 8x4 SERIES CARGO TRUCK 371HP |
||
|
Engine |
Engine model |
WD615.47, Euro II emission standard |
|
|
Maximum output(kw/rpm) |
273/2200(371hp) |
||
|
Maximum torque(nm/rpm) |
1350/1300-1600 |
||
|
Displacement (L) |
9.726 |
||
|
Pattern (Type) |
6-cylinder in-line with water inter cooling, two valve & the supercharger in the back |
||
|
Cab |
Driving type |
Left Hand Drive (RHD is optional) |
|
|
Cab type |
HW79 high roof cab with 2 bed, with A/C. Up and down, front and back, adjustable steering wheel, VDO instrumentation and control module, double locking structure belt, sun shade |
||
|
Clutch |
Single-plate dry diaphragm spring clutch, diameter 430mm, hydraulically operating with air assistance, standard 430A type |
||
|
Transmission |
HW19710; 10 speeds; main & vice structure |
||
|
Steering |
ZF8098, German advanced technology |
||
|
Front axle |
HF7 drum type, 7 tons |
||
|
Rear axle |
ST16 single reduction axles; ratio=3.73 (standard) (4.22 is optional) |
||
|
Fuel tank |
400L |
||
|
Electrics |
Operating voltage (single wire system): 24V; Generator: 1540W; |
||
|
Starter: 24V, 7.5Kw; Battery: 2X12V, 165Ah, 2 batteries |
|||
|
Brakes |
Service brake; Parking brake; Auxiliary brake & ABS/EVB ( is optional) |
||
|
Tires/ Wheel |
12.00R20 (11.00R20 is optional), 12 + 1 spare |
||
|
Chassis |
Front/rear suspension semi-elliptic reinforced leaf springs & Shock absorber & The horizontal stabilizer |
||
|
Other optional |
All lights device: Cigar-lighter, horn, headlamps, fog lights, brake lights |
||
|
Optional: Recorder & Traveling data etc |
|||
|
Weight Parameters |
Kerb. Mass |
13070kg |
|
|
Total mass |
31000kg |
||
|
Rated loading capacity |
17800kg |
||
|
performance parameters |
Max. speed |
102km/h |
|
|
Max. gradeability |
50% |
||
|
Approach/departure angle |
16/15(degree) |
||
|
Dimension Parameters |
Overall dimension |
11182×2496×3630 (mm) |
|
|
Wheel base |
1800+3775+1400 (mm) |
||
|
Front/rear overhang |
1500/2732(mm) |
||
|
Front /rear wheel track |
2022/ 1850(mm) |
||
|
Min. ground clearance |
267mm |
||
|
Min. diameter of turning circle |
24m |
||
|
Cargo Body |
Cargo body size |
8480×2326×600 (800) (mm) |
|
|
Capacity |
11.8(15.7) (cubic meter) |
||
|
Thickness of cargo body |
floor 3, side & back 1.5(mm) |
||
