High Precision LCR Meter Digital Electric Bridge Tester

FOB Price:	1.00 - 2.00 USD/Set
Supply Ability:	1,000 Set/Sets per Month
Shipping:	within 7 days receipt payment
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	standard packing

Quick Details

Usage: LCR Meter
Power: Electronic
Model Number: 2819
Brand Name: CX
Items Name: LCR Meter
Warranty: 1 year
Basic accuracy: 0.1%
Average time: 1-255

Specifications

High Precision LCR Meter digital electric bridge tester

Introduction

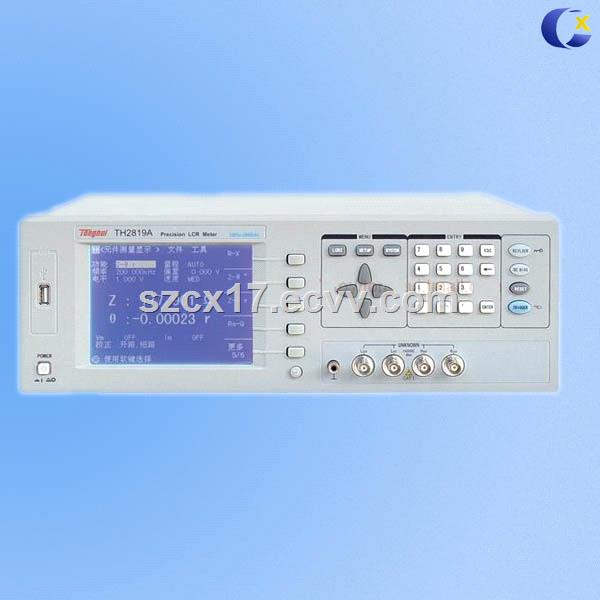

TH2819A digital LCR Meter is an updated product of TH2819 LCR meter with the features of TH2819, including easy operation, accurate and stable reading. It has smaller size than TH2819, nice appearance, and low cost.

With test frequency from 20Hz to 200kHz, frequency resolution of 10mHz, wide test signal level range from 5mV to 2V, measurement speed up to 32ms/time, TH2819A can be used to inspect electronic components, not only for measurement parameters TH2819 has, but DCR measurement. The meter has 1.5V/2V internal bias voltage, optional ±10V (±100mA) and 1A internal DC bias source and external inductance bias sources to inspect inductive components.

With high speed, wide test range, and 6-digit resolution, TH2819A can be used in quality control on production line, incoming inspection and lab measurement.

Measurement function
Measurement parameters		\|Z\|, \|Y\|, C, L, X, B, R, G, D, Q, θ , DCR
Basic accuracy		0.1%
Equivalents circuit		Serial, Parallel
Math function		Absolute value deviation, percentage deviation
Range mode		Auto, Hold, Manual
Trigger mode		Internal, Manual, External
Measurement time (≥1kHz)		Fast: 32ms, Medium: 90ms, Slow: 650ms
Average time		1—255
Delay time		0—60s, with the step of 1ms
Correction		Open, Short, Load
Measurement terminal		5-terminal
Display mode		Direct, Δ, Δ%, V/I (voltage/current monitor)
Display		320×240 dot matrix graphic LCD display with 6-digit resolution
Test signal
Test signal frequency		20 Hz-200 kHz
Frequency min. Resolution		10mHz
Output impedance		30 Ω, 100 Ω
Test signal level		Normal: 5 mV-2 V Accuracy: 10% Constant level: 10 mV-1 V Accuracy: 5%
Level min. Resolution		1mV
DC bias source	Internal	0V, 1.5V, 2V, accuracy: 1%
	Optional	TH1902A 0-10V DC bias voltage, 0-100mA DC bias current
		TH1902B 0-1A DC bias current
Measurement display range
\|Z\|, R, X		0.00001 Ω — 99.9999 MΩ
DCR		0.001 Ω — 99.9999 MΩ
\|Y\|, G, B		0.00001μS — 99.9999 S
C		0.00001 pF — 9.9999 F
L		0.00001 μH — 9999.99 H
D		0.00001 — 9.9999
Q		0.00001 — 9999.9
θ (DEG)		-179.999o — 179.999 o
θ (RAD)		-3.14159 — 3.14159
Δ%		-999.999% — 999.999%
Others
Comparator		10-bin sorting, bin counter
Storage		20 sets of LCRZ measurement settings saved
Interface		RS232C, HANDLER, GPIB (optional), USB HOST (optional)
