Hengshui Guangxing Screens Co., Ltd.
China Manufacturer with main products: Water Well Screen, Johnson Well Screen, Bridge Slotted Well Screen |

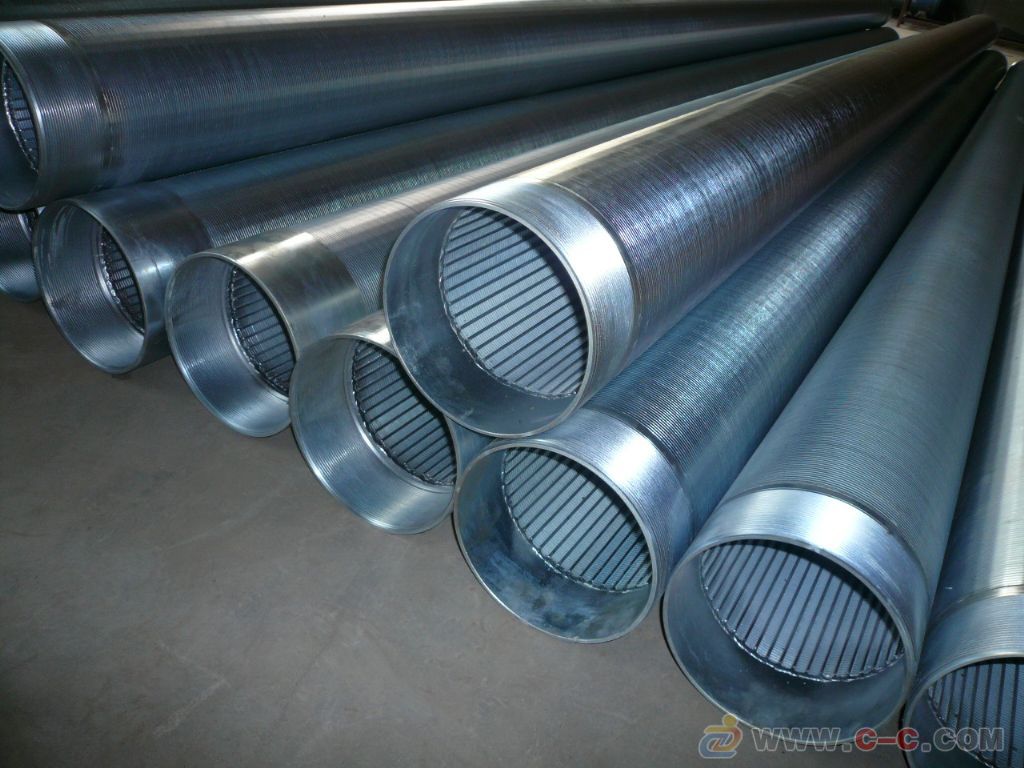

JOHNSON VEE-WIRE SCREENS for WATER WELLS
| Supply Ability: | 100 Piece(s) per Day |
|---|---|
| Shipping: | by sea |
| Payment Terms: | L/C, D/A, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | wooden |
Quick Details
- Width: 2
- Material: Glass Fiber
- Type: Black Wire Mesh
- Usage: Liquid Filter
- Brand Name: guangxing screens
- Length: 6000mm
- Thickness: 3.5
- Hole Shape: Diamond
- Alloy Or Not: Non-alloy
- Special Pipe: API Pipe
- Surface Treatment: Galvanized
- Certification: API
- Technique: EFW
- Application: Drill Pipe
- Secondary Or Not: Non-secondary
- Section Shape: Round
- Outer Diameter: inch
- Grade: 10#-45#,API J55-API P110,ST35-ST52
Specifications
Hengshui guangxing screens company is a specialized manufacturer of China. We export a diverse selection of industrial screen products including Wedge Wire Cylindrical Filter Screen for Water Well and Oil Well Drilling Application and Slotted Casing Tubes. Major products are Stainless Steel Water Well Screen, Pipe Based Well Screen, Sand Control Screen, Laser Cut Slotted Screen Pipes for Oil and Gas Well Screen, Pre-packed Screen, Casing Pipes, Dewatering Screen Panels, and series wedgewire filter elements. We can help you with solutions to your needs.
Material: stainless steel (304,316 etc.)
1.Profile wire:Width(mm): 1.0 1.5 according to your requirement.
Height(mm): 2.0, 2.5,according to your requirement
2.Support rods:Width(mm): 2.0 according to your requirement
Height(mm): 3.0mm, 2.3mm, according to your requirement
3.Slot size: 0.015mm(15micron) 0.02,0.03,0.035,0.04,0.05,
0.06,0.075,0.08,0.1,0.2 also achieved upon request.
Open area up to 60%.
4.Length: max length 2.3 meters.
5.Diameter:from 25mm to 190 mm.
Moreover, we can also fit the srew joint, flange, lifting handle and other parts according to your requirement.
1 A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
2 A "V"shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3 A uniform and efficient well development due to the continuous slot opening.
4 Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5 Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.
