32m3 Back Dump Semi-trailer with HYVA lifting 3 Axles

Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Air casters is perfectly for moving works

Price:10.00-1,500.00 USD/Set

Min. Order:1 Set
box trailer

Price:

Min. Order:
China Supply Flatbed Semi Trailer With Lowest P...

Price:10,000.00-13,000.00 USD/Set

Min. Order:1 Set
Used Hino Cement Tanker

Price:4,000.00-6,000.00 USD/Set

Min. Order:1 Set
Trailer

Price:56.00-59.00 USD/Piece

Min. Order:100 Pieces
Chemical Liquid Tanker Semi-Trailer

Price:5000.00-15000.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China

Quick Details

Use: Truck Trailer
Max Payload: 60
Type: Semi-Trailer

Specifications

The dump semi-trailer is a kind of semi-trailer which is connected with the tractor truck through the kingpin and saddle. Our products have stable and reliable structure, strong bearing capacity, superior power and stable performance.

We can supply all kinds of semi-trailer, such as 30t-40t skeleton container semi-trailer,40-50t flatbed container semi-trailer,40-80t platform cargo semi-trailer,30-80t low bed semi-trailer ,20-40m3 tipper semi-trailer,30-60m3 fuel tanker semi-trailer ,etc.

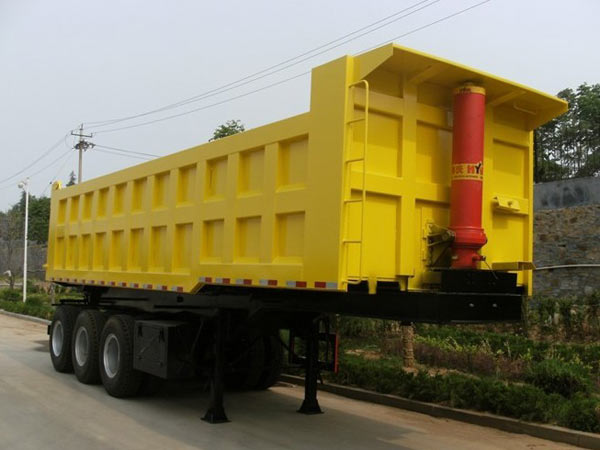

32m3 Back Dump Semi-trailer with HYVA lifting 3 Axles

Overall dimension(mm): 10100*2500*3450
Inside body dimension(mm): 9500*2300*1500
Volume of the body: about 32cbm
Rated payload(kg): 60000
Axles: 3 FUWA 15T axles
Tires: 11.00R20, 12
With HYVA front lifting cylinder
Other technical details according to factory standard

32m3 front lifting tipper semi-trailer
Main description	Overall dimension(mm)	10100 x 2500 x 3450
	Inside body dimension(mm)	9500 x 2300 x1500
	Inside volume	About 32 CBM
	Thickness of dump body	Floor 8mm,side and back 6mm
	Payload(KG)	60000
	Lifting type	HYVA front lifting cylinder
Running Gear	Axles	3 FUWA 15T axles
	Suspension	Mechanical suspension
	Landing gears	30t single action type
	Kingpin	2`` or 3.5``(90#)
	Tires	11.00R20, 12
Frame	Main beam height	500 mm
	Upper and lower wing plates	16mm/16mm
	Ventral plate	6mm/6mm
Other components	Spare tire racks	2
	Tool box	1
	Brake	Domestic brake system
	Others	ABS
