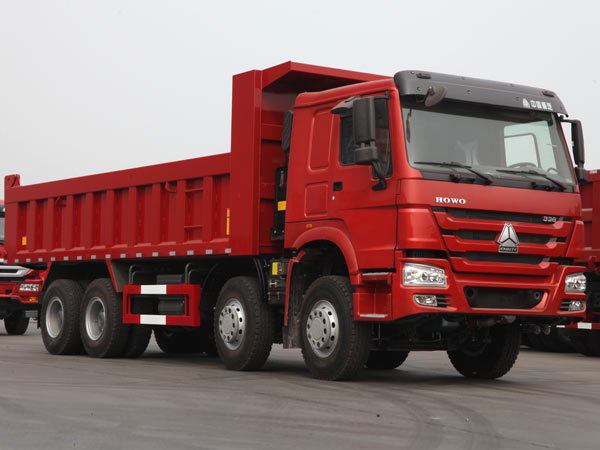

HOWO 8X4 Dump Truck with Day Cab 371 HP

HOWO 8X4 Dump Truck with Day Cab 371 HP

Cab

Model

HW70

Driving type

Left hand drive(RHD optional)

Type

Standard day cab without sleeper bed, with A/C

Engine

Model

WD615.47

Max. output

271KW/2200rpm(371hp)

Max torque

1460Nm/1300-1600rpm

Displacement

9.726 L

Type

Inline 6 cylinder with water cooling supercharged inter cooling .

Clutch

Φ430 diaphragm spring clutch, hydraulic control air power assisted . Standard 430A for WD615.47

Transmission

HW19710, 10 speeds

Front axle

HF9 drum type, 9 tons

Driving axle

HC16 double reduction,2*16 tons

Suspension

Front and rear suspension are leaf springs. Front suspension has shock absorbers and horizontal stabilizer, and rear suspension type is the suspension with lateral stabilizer

Steering

ZF8098

Brakes

Service brake : dual-circuit pneumatic brake ;

Parking brake : energy storage spring cutoff brake ;

Auxiliary brake : engine exhaust brake;

EVB,ABS and automatic slack adjuster optional

Wheel & tires

12.00R20 (11.00R20 is optional),12+1 spare

Fuel tank

300 L

Weight in kg

Curb weight

14350

Gross vehicle weight

31000

Rated loading capacity

16520

Dimension in mm

Overall dimension

9077 X 2496 X 3237

Wheel base

1800+3000+1350

Front/rear wheel track

2022/1850

Front/rear overhang

1500/1627

Approach/departure angle

19 / 28(°)

Min. ground clearance

314

Performance

Max. speed

75 km/h

Max. grade ability

52 %

Min. turning diameter

22.6 m

Dump body

Dump body size(mm)

6500x2300x1500

Capacity

22.4CBM

Thickness of dump body(mm)

Floor 8mm,side and back 6mm

Lifting type

Reinforced "T" type middle lifting
