Shandong Sunbright Auto Sales Co., Ltd.
China Manufacturer with main products: Dump Truck, Cargo Truck, Tipper Truck, Semi-Trailer Truck, Oil Tank Truck, Water Tank Truck, Mixer Truck, Refrigerated Truck |

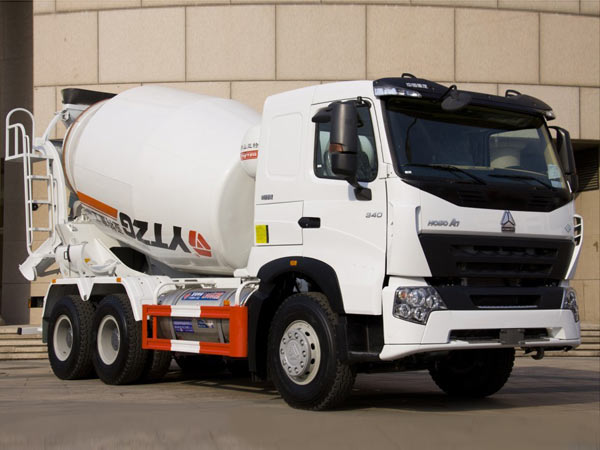

8CBM SINOTRUK HOWO A7 6x4 Concrete Mixer Truck, 340HP
| FOB Price: | 40,000.00 - 50,000.00 USD/Set |
|---|
Related products from verified members
| Export Markets: | South America, Southeast Asia, Africa, Mid East |
|---|---|
| Place of Origin: | Shandong in China |
Quick Details
- Gross Vehicle Weight: 25000
- Model Number: ZZ1257N3647N1
- Brand Name: SINOTRUK
Specifications
8CBM SINOTRUK HOWO A7 6x4 Concrete Mixer Truck, 340HP
Chassis model: ZZ1257N3647N1
Cab: A7-W low floor, long flat roof luxury cab with one sleeper bed, with A/C
Engine model: SINOTRUK D10.34, EUROIII
Engine power: 340hp
Tires: 12.00R20, 10+1spare
Mixer drum capacity: 8000L
With EATON hydraulic pump and motor, Italy decelerator
Other technical details according to CNHTC factory standard
|
SINOTRUK HOWO A7 6X4 CONCRETE MIXER TRUCK 8000L CAPACITY |
||
|
Model |
8CBM HOWO A7 6x4 CONCRETE MIXER TRUCK |
|
|
Cab |
Cap type |
A7-W low floor, long flat roof luxury cab with one sleeper bed, with A/C |
|
Drive type |
Left Hand Drive(RHD is optional) |
|
|
Engine |
Engine model |
SINOTRUK D10.34,340hp |
|
Type |
6 cylinder in-line with water cooling, turbo-charging & inter cooling, rear supercharger, mid turbocharger, high pressure common rail electronic control |
|
|
Engine output |
340hp(249kw)/2000 rpm |
|
|
Maximum torque |
1490NM /1200-1500rpm |
|
|
Displacement |
9.726L |
|
|
Clutch |
430 diaphragm spring clutch, hydraulically operating with air assistance |
|
|
Transmission |
HW15710, 10 speed transmission |
|
|
Steering |
ZF8098, Germany ZF technology |
|
|
Front axles |
HF9 drum type,9 tons |
|
|
Rear axles |
HC16 double reduction axles, 2x16 tons |
|
|
Brakes |
Service brake, parking brake, auxiliary brake, ABS,EVB is optional |
|
|
Tires |
12.00R20, 10+1 spare |
|
|
Fuel tank |
300L |
|
|
Electrics |
Operating voltage:24V Starter:24V, 7.5kw Batteries:2x12V/165Ah Alternator:1540W |
|
|
Weight in kg |
Curb weight |
13360kg |
|
Total weight |
25000kg |
|
|
Rated payload |
11510kg |
|
|
Dimensions in mm |
Overall dimension(mm) |
8965×2496×3800 |
|
Wheel base(mm) |
3625+1350 |
|
|
Front/rear overhang(mm) |
1540/2450 |
|
|
Front/rear wheel track(mm) |
2022/1850 |
|
|
Minimum ground clearance(mm) |
314 |
|
|
Minimum turning diameter(m) |
15 |
|
|
Performance |
Approach/departure angle |
20/13 degree |
|
Max. driving speed(km/h) |
78 |
|
|
Max gradeability(%) |
≥50 |
|
|
Mixer drum body |
Tank body size(mm) |
8CBM |
|
Rotating speed |
0-18r/min |
|
|
Discharged remain ratio |
<0.2% |
|
|
Water tank |
400L |
|
|
Hydraulic pump and motor |
EATON089 (America) |
|
|
Decelerator |
P68(Italy) |
|
