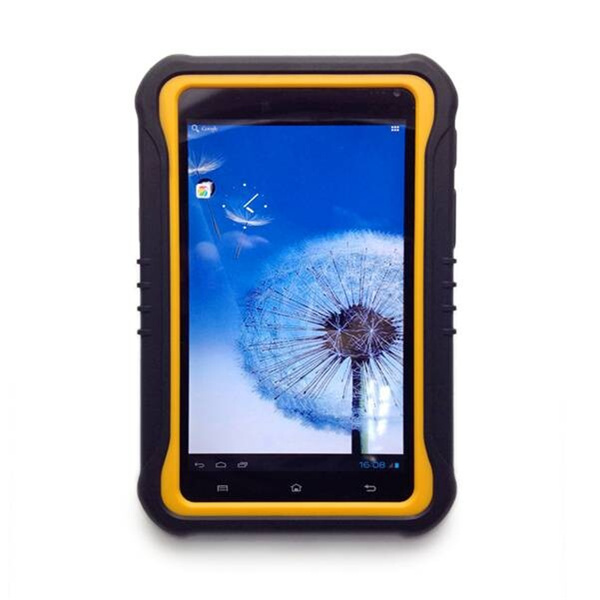

7 Inch Rugged Three Anti-Industrial-Grade RFID Tablet PC
| Payment Terms: | T/T |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Place of Origin: | Guangdong in China |
|---|---|
| Packaging Details: | standard packing/ neutral packing/ customized packing as required. Standard packing: Inner Box: 235 |
Quick Details
- Model Number: CSP-708M
- Brand Name: CETC7
- Weight: 720GSM
- Screen Size: 7 inch
- Memory Capacity: 64MB
- Style: handheld tablet PC
- Processor Type: Samsung
- Operating System: Android 4.4 OS
- Products Status: Stock
Specifications
Industry Application Cases
CSP-708M Three Anti-Industrial-Grade Tablet has been applied to many industry fields, such as electric power, petrochemical, government supervision, asset management, etc.
u Electric Power Industry Mobile Application
By using RFID, mobile internet technology, realize mobile intellectual inspection in transmission, substation, and distribution segment, thereby reach the aim of lean management and closed loop management.
Product DescriptionCSP-708M 7.0" Three Anti-Industrial-Grade Tablet is a leading rugged tablet product developed independently in mobile information acquisition and processing application field.
The tablet is loaded with the mainstream Android 4.4 OS, and optionally integrated with LF/HF/UHF RFID reader, 3G mobile communication, GPS/ Beidou positioning, front and rear camera, WiFi/Bluetooth, NFC, Barcode Scanner, PSAM card encryption, etc. These functions make it very suitable for electric power industry, petrochemical, logistics and other industry applications.
Product Featurel Superior Platform Processing Capabilities
Samsung Exynos 4412 Cortex A9 Quad Core 1.4GHz Processor, 1GB DDR3 RAM+16GB EMCP, Android 4.4 OS, resolution 1280×800.
l Abundant function configuration
? Wireless Communication: Support short distance wireless data transmission, such as 3G/4G network communication, WiFi/ Bluetooth, Zigbee, etc.
? Smart Identification: Support UHF RFID (≥3m), HF RFID, LF RFID, NFC, Barcode Scanning, etc.
? High-precision Positioning: Built-in GPS/GNSS Navigation module, satisfy fast and high-precision positioning demand (support sub-meter positioning if equipped with external antenna).
? Extended Function: Such as USB/RS232 interface customization, PSAM Card Encryption module, Infrared communication, fingerprint identification, external camera is available according to users demand.
l High Protective Ability: achieve IP67 industry protective class, drop-proof from 1.2m, adopt Corning Gorilla Glass3 G+G 5 points high strength capacitive touch screen.
l Strong Battery Endurance Ability: Up to 9500mAh battery capacity, assure long working time operation.
https://>
The tablet is qualified with 3C guarantee, type approval test, and network access license, as well as the third party inspection, such as IP67 protective class, drop-proof test from 1.2m, quality inspection by State Grid Power Research Institute, etc.
Product Specification|
Model |
CSP-708M |
|
||
|
Brief Introduction |
|
|||
|
Package |
High quality jamproof shielded USB cable×1/ Charger 5V/2A×1/ User Manual×1/ Package box×1 |
|
||
|
Size(mm) |
206×140×21mm(L×W×H) |
|
||
|
Net Weight(g) |
720g |
|
||
|
Hardware |
|
|||
|
Chipset |
Samsung Exynos 4412 Cortex-A9 Quad Core 1.4GHz Processor Mali-400 MP GPU |
|
||
|
Frequency |
WCDMA 850/2100 (850/1900 optional) & GSM850/900/1800/1900 Public Network LTE or Exclusive LTE |
|
||
|
SIM card |
Yes, support 1.8/3.3V SIM card |
|
||
|
OS |
Android 4.4 |
|
||
|
GPS |
Satellite Navigation GPS/GLONASS chip built-in, high-precision positioning within 5m accuracy |
|
||
|
RFID(Optional) |
LF RFID(125KHz) 3-5cm HF RFID(13.56MHz) ≥5cm UHF RFID(920-925MHz) ≥3m |
|
||
|
NFC |
Support |
|
||
|
Bluetooth |
BT4.0 (A2DP+EDR) |
|
||
|
Gravity Sensor |
Support |
|
||
|
Magnetic Field Sensor |
Support |
|
||
|
Gyroscope Sensor |
Support |
|
||
|
Light Sensation |
Support |
|
||
|
Speaker |
With loudspeaker sound cavity |
|
||
|
Network |
|
|||
|
3G |
WCDMA 3.75G (HSDPA + 42.2Mbps, HSUPA + 11.5Mbps), support WIFI AP; EVDO |
|
||
|
EDGE |
Support |
|
||
|
GPRS |
Support |
|
||
|
WAP |
Support |
|
||
|
WI-FI |
Support 802.11 B/G/N |
|
||
|
Display |
|
|||
|
Main Display |
7.0'' HD IPS LCD 1280*800 16.7M color 400cd/m2 Highlight, Sunlight Readable |
|
||
|
Touch Panel |
Corning Gorilla Glass3 G+G 5 points high strength capacitive touch screen |
|
||
|
Camera |
|
|||
|
Rear Camera |
8.0MP(AF) with flash led |
|
||
|
Front Camera |
2.0MP |
|
||
|
Memory |
|
|||
|
Internal Memory |
1GB DDR3 RAM + 16GB EMCP |
|
||
|
External Memory |
Micro SD card (T-FLASH card), up to 64GB(Customizable) |
|
||
|
Batteries & IO |
|
|||
|
Capacity(mAh) |
9500mAh |
|
||
|
USB (HOST) |
USB Micro 5Pin |
|
||
|
USB (DEVICE) |
USB Micro 5Pin |
|
||
|
Earphone |
3.5mm |
|
||
|
Other Special Design |
|
|||
|
Serial port |
RS232/TTL×1; GPIO 3.3V×2; USB(Device)×1 Controllable Power Source: 200mA×1; Battery Power×1 |
|||
|
PSAM Card Encryption Built-in |
Optional |
|||
|
Environmental test |
Shake-proof |
1-19Hz/1.0mm; 19-200Hz/1.0g |
||
|
Shock-proof |
MIL-STD-810G certified/ Method516.6/Procedure IV |
|||
|
Drop-proof |
Drop from 1.2m/ 3.937ft(Six Sides & Four Angles) |
|||
|
Dust-proof |
Class 6 |
|||
|
Water-proof |
Class 7 |
|||
|
Soundness |
MTBF>50000h; MTTR<0.5h |
|||
|
Operating Temp |
-20°C to 65°C |
|||
|
Non-operating |
-40°C to 80°C |
|||
|
Relative Humidity |
· 5% to 95% non-condensing |
|||
|
Operating Altitude |
Maximum operating altitude: 4,500m(15,000 feet) |
|||
|
Accessories |
||||
|
(Optional) |
Capacitive stylus/ Satchel/ Wrist Strap/ Hand Strap/ USB Keyboard |
|||
