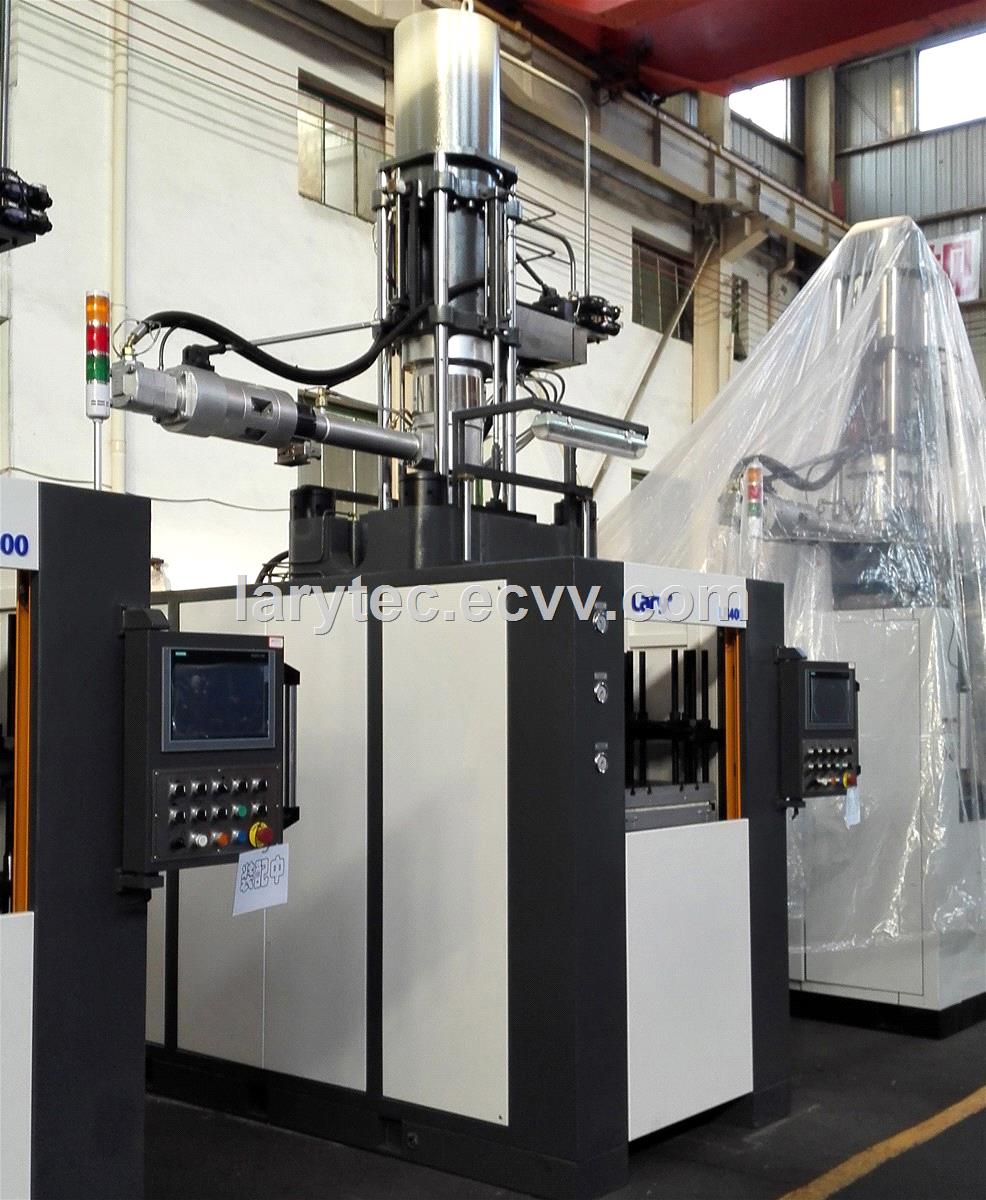

High quality Rubber injection molding machine LR400-4000cc
| FOB Price: | 10,000.00 - 100,000.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set/Sets per Year |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | export packing |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: One Year
- Certification: CE
- Weight: 12.5 tons
- Dimension(L*W*H): 3700*2800*4830
- Power(W): 70KW
- Model Number: LR400-4000cc
- Brand Name: Lary
- Condition: New
Specifications
| No. | Item | Unit | Specification |
| 1 | Injection volume | cc | 4000 |
| 2 | Injection pressure | MPa | 196 |
| 3 | Max. feeding rubber strip width | mm | 60 |
| 4 | Max. feeding rubber strip thickness | mm | 8 |
| 5 | Clamping force | KN | 4000 |
| 6 | Opening stroke | mm | 500 |
| 7 | Max. distance between heating platens | mm | 500-600 |
| 8 | Min. mold thickness | mm | 100 |
| 9 | Heating platen Dim. | mm | 700×700 |
| 10 | Max. temperature for heating platen | oC | 250 |
| 11 | Max. temperature for barrel | oC | 80 |
| 12 | Oil pump and motor power | KW | 30 |
| 13 | Total power | KW | 70 |
| 14 | Oil tank capacity | Liter | 550 |
| 15 | Machine dimensions(L×W×H) | mm | 3700×2800×4830 |
| 16 | Machine weight | Tons | 12.5 |
