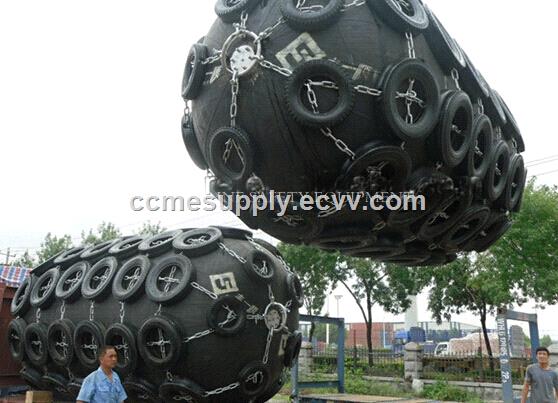

CCS certification Marine pneumatic boat rubber fender

FOB Price:	100.00 - 5,900.00 USD/Piece
Supply Ability:	1,000 Piece/Pieces per Month
Shipping:	by sea shiping
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	per to your needs

Quick Details

Part: Marine pneumatic boat rubber fender
Model Number: CCME
Brand Name: CCME
application: protect the dock and body of vessel
Type: round pneumatic rubber fender
Diameter: optional 0.5~4.5
length: optional 1.0~9.0

Specifications

Application

Pneumatic yokohama rubber fendersare suitable for many applications including:
*Tankers, gas carriers and bulk cargo ships;
*Fast ferries and aluminum hulled vessels;
*Temporary of permanent installations;
*Rapid response and emergency fendering;
*As stand-off fenders to realign ships with shore facilities.
Performance

Performance

Pneumatic FenderTechnical Performance Table

Specifications (mm)		At 60% compression; initial pressure is 0.05MPa		Weight of sphere ±10%
Diameter	Length	Energy Absorption (KJ)	Reaction Force (KN)	KG
200	500
300	500
500	1000	6	64	25
600	1200	10	86	35
700	1500	17	137	50
1000	1500	32	181	80
1000	2000	45	257	100
1200	2000	63	297	120
1350	2500	100	426	170
1500	3000	153	579	320
1700	3000	190	637	400
2000	3500	308	875	590
2500	4000	663	1380	1000
2500	5500	932	2010	1400
3000	5000	1050	2030	1800
3000	6000	1315	2488	2200
3300	6500	1814	3015	2700
3500	6000	2018	3286	2800
3500	6500	2325	3656	3200
3500	7000	2650	4018	3600
3600	7200	3180	4821	4320

Notes:

1. Guaranteed energy absorption represents the guaranteed energy absorption at 60% deflection.

2. Tolerance of reaction fore and deflection are as follows: Reaction:10%, Deflection:5%.

3. Each reaction and energy absorption is measured under static conditions.

4. Testing pressure rate indicates the testing pressure at the factory.

5. Weight of fender body and net may vary 10%.

6. Special sizes are available upon request.

7. Different levels of performance according to internal air pressure levels specified this fenders.
