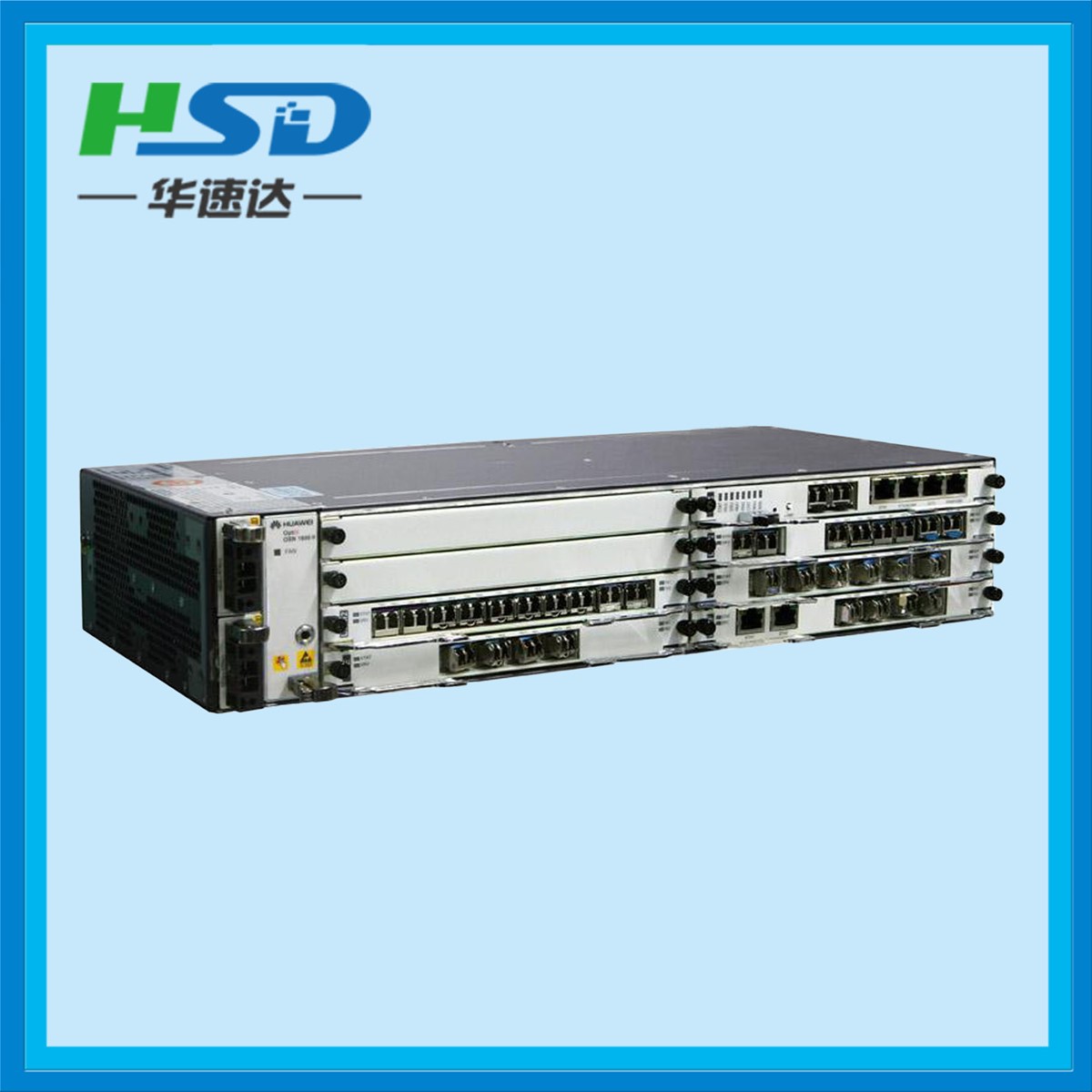

HUAWEI OptiX OSN 1800

FOB Price:	30,000.00 - 80,000.00 USD/Unit
Supply Ability:	200 Unit/Units per Month
Shipping:	3-7 days after payment
Payment Terms:	L/C, T/T, Other, paypal

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Anhui in China
Packaging Details:	Original Huawei OSN1800 Sealed Package

Quick Details

Model Number: OSN1800
Brand Name: HUAWEI
Dimensions (H x W x D): 88 mm x 435 mm x 220 mm
Number of Service Slots: 8 slots per cabinet (DC) 6 slots per cabinet (AC)
Number of Wavelengths (maximum): CWDM: 8 wavelengths; DWDM: 40 wavelengths
Installation Rack: 19-inch to 23-inch rack, ETSI 300 mm or 600 mm rack
Power Supply: 110V AC to 220V AC, -48V DC to -60V DC
Rate per Wavelength (maximum): 100 GE (OTU-4)

Specifications

HUAWEI OptiX OSN 1800 Compact Multi-Service Edge Optical Transport Platform huawei OSN1800

Product Description

Compact broadband backbone transmission and switching platforms bring high-performance Optical Transport Network (OTN) capabilities to the enterprise. Huawei's OptiX 1800 WDM transport systems support both Dense and Course Wavelength Division Multiplexing (DWDM and CWDM), providing ample bandwidth for video surveillance, data backup, and server-based multimedia applications.

Available in 1U and 2U rackmount models, offering 4 or 8 line cards supporting up to 10 GE transmission speeds, Optix 1800s are ideal for cross-connections between data centers, between Storage Area Networks (SANs), and as an edge transport system in metropolitan networks.

Leverage broadband WDM communications for video, SAN, and data center backups with high-availability OptiX OTN transmission and switching platforms

Configurable with up to 8 CWDM channels or 40 DWDM channels
Supports E1/E3/T3/FE/GE/STM-x/10 GE/SAN in terminal access, data center interconnections, and long-distance transmission applications
Available with AC or DC power
1U and 2U chassis provide embedded 1+1 optical line protection and can be installed in cabinets or mounted on walls or poles

Specifications

Specifications	OptiX OSN 1800 I	OptiX OSN 1800 II
Dimensions (H x W x D)	44 mm x 435 mm x 220 mm	88 mm x 435 mm x 220 mm
Number of Service Slots	4 slots per cabinet (DC) 2 slots per cabinet (AC)	8 slots per cabinet (DC) 6 slots per cabinet (AC)
Switching Capability	N/A	Packet: 60 GE SDH: 40 GE (high-order), 5 GE (low-order)
Number of Wavelengths (maximum)	CWDM: 8 wavelengths; DWDM: 40 wavelengths
Rate per Wavelength (maximum)	100 GE (OTU-4)
Installation Rack	19-inch to 23-inch rack, ETSI 300 mm or 600 mm rack
Power Supply	110V AC to 220V AC, -48V DC to -60V DC
