High Torque Zero Backlash Harmonic Strain Wave Gearing Reduction Gearbox (LCSG-I)
| FOB Price: | 590.00 - 1,500.00 USD/Set |
|---|---|
| Supply Ability: | 45,000 Set/Sets per Year |
| Shipping: | 35 Days for production, FOB Shanghai Port, EXW, CFR,CIF. |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | LeaderDrive Harmonic Drive Reducer Utilize 4-layers packages, one carton inside and vacuum package. |
Quick Details
- Brand Name: LeaderDrive
- Model Number: LCSG-32-50-C-I
- Output Speed: 14-280rpm
- Input Speed: 2000~8000 rpm
- Rated Power: 0.06-15KW
- Output Torque: 12000Nm
- Gearing Arrangement: Harmonic
- Rated Torque: 6.6~654 N.M
- Backlash: <10 Arc. Sec
- Weight: 0.51~9.0 Kg
- Allowable Average Input Speed: 3500 RPM
- Maximum Input Speed: 8000 RPM
- Reduction Ratio: 50/80/100/120/160
- Allowable Peak Torque at Start and Stop: 23~1458 N.M
- Allowable Average Torque: 8.6~1042N.M
- Allowable maximum Momentary Torque: 43~3025 N.M
- Designed Life: 10000/15000 Hours
Specifications

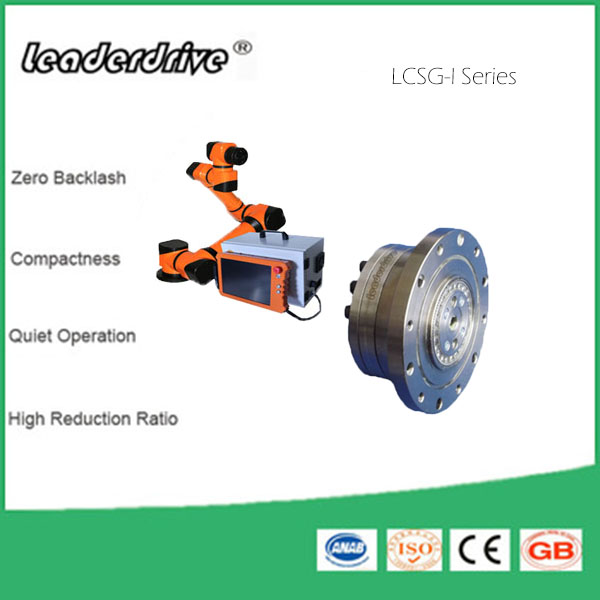

LeaderDrive LCSG-I Series Harmonic Speed Reducers for Industrial Robotics with high precision Light weight
Product Description
Structure
LeaderDrive Harmonic Drive Speed Reducer Utilize a unique operating principle, the gear consists of only 3 basic parts (Wave Generator, Flexspline, and Circular Spline). It provides excellent features not found in other speed reducers.
Wave Generator
The LeaderDrive harmonic drive speed reducer wave generator is a thin raced ball bearing fitted onto an elliptical hub. This serves as a high efficiency torques converter and is generally mounted onto the input or motor shaft.
Flexspline
The LeaderDrive harmonic drive speed reducer Flexspline is a non-rigid, thin cylindrical cup with external teeth on the open end of the cup. The Flexspline fits over the wave generator and takes on its elliptical shape. The Flexspline is generally used as the output of the gear.
Circular Spline
The LeaderDrive harmonic drive speed reducer circular spline is a rigid ring with internal teeth. It engages the teeth of the Flexspline across the major axis of the Wave Generator ellipse. The circular spline has two more teeth than the Flexspline and is generally mounted onto a housing.
Operating Principle
LeaderDrive Harmonic Drive Speed Reducer The flexspline is slightly smaller in diameter than the Circular Spline and usually has two fewer teeth than the wave generator. The elliptical shape of the wave generator causes the teeth of the Flexspline to engage the Circular Spline at two opposite regions across the major axis of the ellipse.
As the LeaderDrive harmonic drive speed reducer Wave Generator rotates the teeth of the Flexspline engage with the Circular Spline at the major axis. For every 180-degree clockwise movement of the Wave Generator the Flexspline rotates counter-clockwise by one tooth in relation to the Circular Spline.
Each complete clockwise rotation of the wave generator results in the LeaderDrive harmonic drive speed reducer Felxspline moving counter-clockwise by two teeth from its original position relative to the Circular Spline.
Feature &Application
Products Features
1. Easy Integration
2. High product quality
3. Zero-backlash
4. Compactness
5. High torque capacity
6. High positioning accuracy
7. Light weight
8. Quiet operation
9. High efficiency
10. High reduction ratio
Application
LeaderDrive Harmonic Drive Speed Reducer utilize high-precision, zero-backlash harmonic drive precision gears and play critical roles in robotics, semiconductor manufacturing equipment, factory automation equipment, medical diagnostics and surgical robotics. Additionally, our products are frequently used in mission-critical scientific research projects which capture the human spirit.
Parameters & Specification
LeaderDrive Harmonic Drive Speed Reducer is the top brand of harmonic reducers in China, specializes in this field for more than 10 years, our reducers are with high precision and zero backlash, high torque, light weight, small size and compactness.
LCSG-I Series is the compact type with high torque of LeaderDrive harmonic speed reducers. With seven different sizes for different market, 14, 17,20,25, 32, 40, 50. The reduction ratio is differ from 50, 80, 100, 120, 160. The Allowable peak torque is more than 3,025N.M, and the use life can be over 15,000 hours.
For further info about the pararmeters and specifications, please feel free to contact us.
Package:
Packaging
LeaderDrive Harmonic Drive Speed Reducer Utilize 4-layers packages, one carton inside and vacuum packaged, carton outside.
