Quick Details
- Usage: Vibration Testing Machine
- Power: Electronic
- Model Number: DVM-1600
- Brand Name: Phase II
Specifications

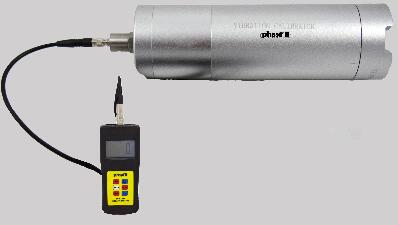

The DVM-1600 vibration calibrator is an integrated shaker type calibrator system that is designed to test accelerometers, vibration monitoring equipment and recording systems. The DVM-1600 vibration calibrator provides a known and controlled RMS vibration for verification of accelerometers weighing up to 150g.
Vibration Calibrator Specifications:| Operating Frequency | 159.2Hz +/-0.5% |
| Acceleration Output | 10M/s2 (RMS) +/-3% |
| Velocity Output | 10mm/s (RMS) +/-3% |
| Displacement Output | 10μm (RMS) +/-4% |
| Transverse Output | <5% |
| Distortion | <3% |
| Max Load | 150g |
| Operating Temp | 15°F - 105°F |
| Ramp up Time | <3 Seconds |
| Internal Battery | 1-9V 6F22 |
| Size | 56mm x 200mm |
| Weight | 2lbs |
