Auto Cable Tray Roll Forming Machine, Cable Tray Roll Making Machinery

FOB Price:	5,000.00 - 55,000.00 USD/Set
Supply Ability:	100 Set/Sets per Year
Shipping:	Container
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	Standard Exporting

Quick Details

Type: Steel Frame & Purlin Machine
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 12months
Certification: CE
Weight: 15Mt
Dimension(L*W*H): 20x4x2
Power(W): 60KW
Voltage: 380V
Model Number: 2
Brand Name: TY
Production Capacity: 100Set/year
Work Pressure: 1
Condition: New

Specifications

Specifications

. This production line may produce the cable tray, the different sizes through the replace punching moulds to complete.

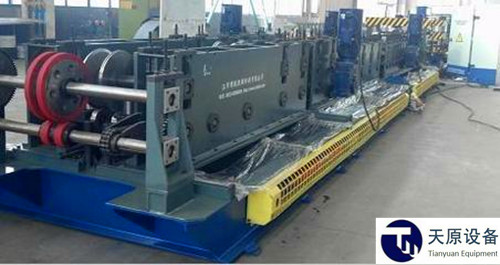

Automatic Cable Tray Roll Forming Machine

Decoiler---flatting---feeding & punchine---forming---cut-to-length---collection table.

Equipment struction introduction.

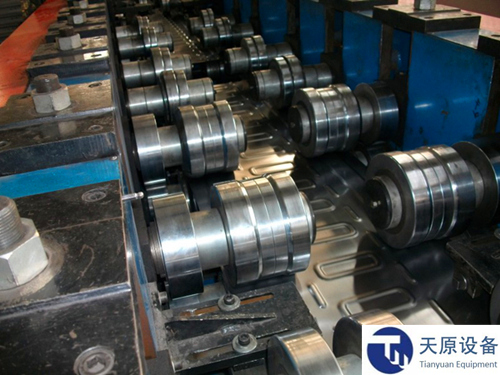

This production line may produce the cable tray, the different sizes  through the replace punching moulds to complete. Forming machine is combined and adjustable, one set of combined rollers complete all cable tray products, the change size through adjust distance of rollers to complete.

Equipment capacity

1, The production line can produce many sizes of cable tray according to producing requirement.(material steel width 100mm≤§≤860mm)

2, Line speed:2.5-5M/min

3, Continuous forming speed:10-15M/min

4,  Steel thickness:1-2.5mm

5 , Material : Mild steel ,galvanized steel coil

6, The production line divide into two operations: automatic &handle. It can work with  linkage and subsection.
