Marine Cable:

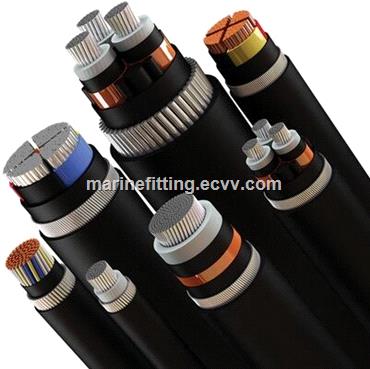

0.6/1KV-12/20KV EPR XLPE Marine Cable

This cable is used on ships,petrol platforms and offshore buildings for emergency power,light and control system.

EPR Fire resistant Marine Cable standards

IEC 60092-350
IEC 60092-353
IEC 60332-1-2
IEC 60332-3-22
IEC 67054-1-2
IEC 61034

EPR Fire resistant Marine Cable service condition

1.Rated Voltage:0.6/1(1.2)kV,1.8/3 kV

2.Long term allowable working temperature:90°C

3.Finished Cable can withstand AC 3.5kv/5 minutes without puncture.

4.Cable bending radius

EPR Fire resistant Marine Cable Model

Model	Combustion	Name
CEPF	SC/NC/NSC	EPR insulated LSZH SHF1 sheath flame retardant marine power cable
CEPF80	SC/NC/NSC	EPR insulated LSZH SHF1 inner sheath bare copper wire braid armored flame retardant marine power cable
CEPF85	SC/NC/NSC	EPR insulated LSZH SHF1 inner sheath bare copper wire braid armored SHF1 outer sheath flame retardant marine power cable
CEPF90	SC/NC/NSC	EPR insulated LSZH SHF1 inner sheath bare steel wire braid armored flame retardant marine power cable
CEPF95	SC/NC/NSC	EPR insulated LSZH SHF1 inner sheath bare steel wire braid armored SHF1 outer sheath flame retardant marine power cable
CEPFR	SC/NC/NSC	EPR insulated LSZH SHF1 sheath flame retardant marine power flexible cable
CEPJ	SC/NC/NSC	EPR insulated LSZH SHF2 sheath flame retardant marine power cable
CEPJ80	SC/NC/NSC	EPR insulated LSZH SHF2 inner sheath bare copper wire braid armored flame retardant marine power cable
CEPJ85	SC/NC/NSC	EPR insulated LSZH SHF2 inner sheath bare copper wire braid armored SHF1 outer sheath flame retardant marine power cable
CEPJ90	SC/NC/NSC	EPR insulated LSZH SHF2 inner sheath bare steel wire braid armored flame retardant marine power cable
CEPJ95	SC/NC/NSC	EPR insulated LSZH SHF2 inner sheath bare steel wire braid armored SHF1 outer sheath flame retardant marine power cable
CEPJR	SC/NC/NSC	EPR insulated LSZH SHF2 sheath flame retardant marine power flexible cable

EPR Fire resistant Marine Cable Specification

Model	Core	Nominal Cross-section Area mm2
CEPF/SC/NC/NSC,CEPF80/SC/NC/NSC,CEPF86/SC/NC/NSC CEPF90/SC/NC/NSC,CEPF96/SC/NC/NSC,CEPFR/SC/NC/NSC CEPJ/SC/NC/NSC,CEPJ80/SC/NC/NSC,CEPJ85/SC/NC/NSC CEPJ90/SC/NC/NSC,CEPJ95/SC/NC/NSC,CEPJR/SC/NC/NSC,	1	1~300
	2	1~120
	3	1~185
	4~37	1~2.5
Note:Unlisted cable model can be produced as customer request.

EPR Fire resistant Marine Cable Product Code

Code	Insulation	Code	Inner sheath	Code	Armor	Code	outer Sheath
E J V X	EPR XLPE(Low Pressure) PVC NR-SBR	V F H PF PJ	PVC CR CSP SHF1 SHF2	0 8 9	— Copper Wire Braid Steel Wire Braid	0 2 5 6	— PVC SHF2 SHF1

Code	Definition	Code	Definition
D S N	Single Burning Bundled Burning Fire resistant	A B C	Smoke,Acid,poisonous Low smoke,Low Acid,Low Poisonous Halogen Free,Low Smoke,Low Poisonous

Soft------R

Shield ------P

Waterproof------M
