Zhangzhou Xiaxin Machinery Co., Ltd.
China Manufacturer with main products: Wheel Loader, Loader, Payloader, Excavtor, Motor Grader, Road Roller, XCMG, CAT |
Related products from verified members
-
Price:70,000.00-80,000.00 USD/SetMin. Order:1 Set -
Price:30,000.00-40,000.00 USD/UnitMin. Order:1 Unit
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: 1 year or 1500 working hours
- Dimension(L*W*H): 9305*2595*3400
- Weight: 16.2ton
- Model Number: XG3200C
- Brand Name: XGMA
- Condition: New
Specifications

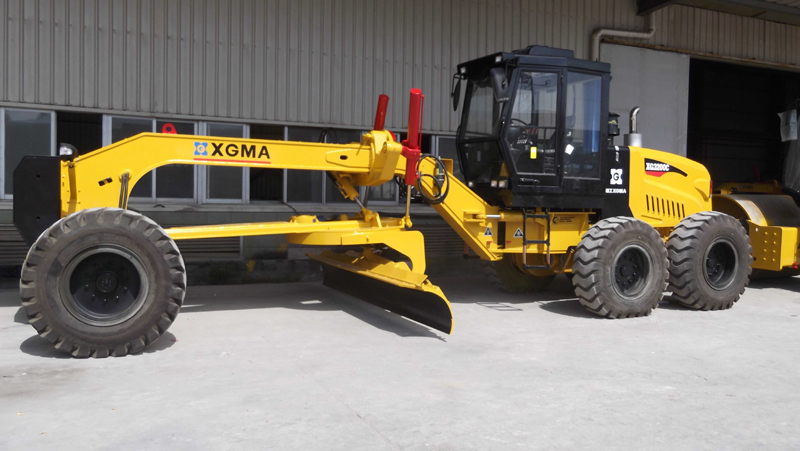

We have in the business of heavy equipments for many years, nowadays we can provide various kinds of heavy equipments that we are manufacturing such as hydraulic vibrating road roller, crawler excavator, crawler bulldozer, motor grader, wheel loaders. Here we simply introduce the motor grader we make below:
Motor Grader features
1. The motor grader has been equipped Cummins diesel engine which is turbocharged, inter-cooled, the engine has lower noisy and compact, it make the motor grader is powerful and working quit
2. The motor grader are adopted hydrodynamic torque converter, the gearbox of transmission system is used the gearbox maker of China.
3. The hydraulic system of motor grader has double-pump, dual-circuit for stability and reliability.
4. Breaking system of our motor grader is used the advanced technology to make operating safe, the hydraulic breaking system makes the motor grader easily controlled and operating.
5. The roof mounted air conditioner in the cap, the roomy driving operating room gives operator opening view; air tight can prevent the dirt and noise from outside
6. The motor has streamline hood of the engine which make the machine easily maintained and heat radiating.
7, The users can choose some parts which are equipped the motor grader like blade, scarifier, ripper, circle and automatic leveling device etc.
| Model \ Technical Parameter | XG3200C |
| Engine |
|
| Manufacturer | Dongfeng Cummins |
| Model | 6CTAA8.3-C215 |
| Rated Power (kw/hp) | 160 /215 |
| Rated Speed (rpm) | 2200 |
| Blade |
|
| Height× String Height (mm) | 3965×610 |
| Reversing Angle (°) | 360 |
| Max. Blade Angle (°) | 90 |
| Cutting Depth (mm) | 500 |
| Drive Type | Motor + worm case |
| Transmission |
|
| Type |
|
| Number of Gears | F6/R3 |
| Forward Speed (Km/h) | 5.1,8.7,11.4, 19.5,24.1,40.1 |
| Reverse Speed (Km/h) | 5.1,11.4,24.1 |
| Drive Type | Rear-axle drive |
| Max. Traction Force (KN) | ≤88 |
| Tyre SPEC | 17.5－25 |
| Front Axle |
|
| Wheel Lean Angle: (°) | ±17 |
| Steering Angle: (°) | ±45 |
| Oscillation Angle: (°) | ±15 |
| Ground Clearance: (mm) | 430 |
| Articulation Angle (°) | 25, right and left |
| Type of Service Brake | Hydraulic disc brake |
| Type of Parking Brake | Hand-operatedshoe-type brake |
| Total Weight (Kg) | 16200 |
| Basic Overall Dimensions (mm) (L×W×H) |
9305×2595×3400 |
| Full Overall Dimensions (mm) (L×W×H) | 10840×2750×3400 |
