Zhangzhou Xiaxin Machinery Co., Ltd.
China Manufacturer with main products: Wheel Loader, Loader, Payloader, Excavtor, Motor Grader, Road Roller, XCMG, CAT |
Related products from verified members
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: 1 year or 1500 working hours
- Weight: 12ton
- Dimension(L*W*H): 5688*2270*3200
- Power(W): 112kw

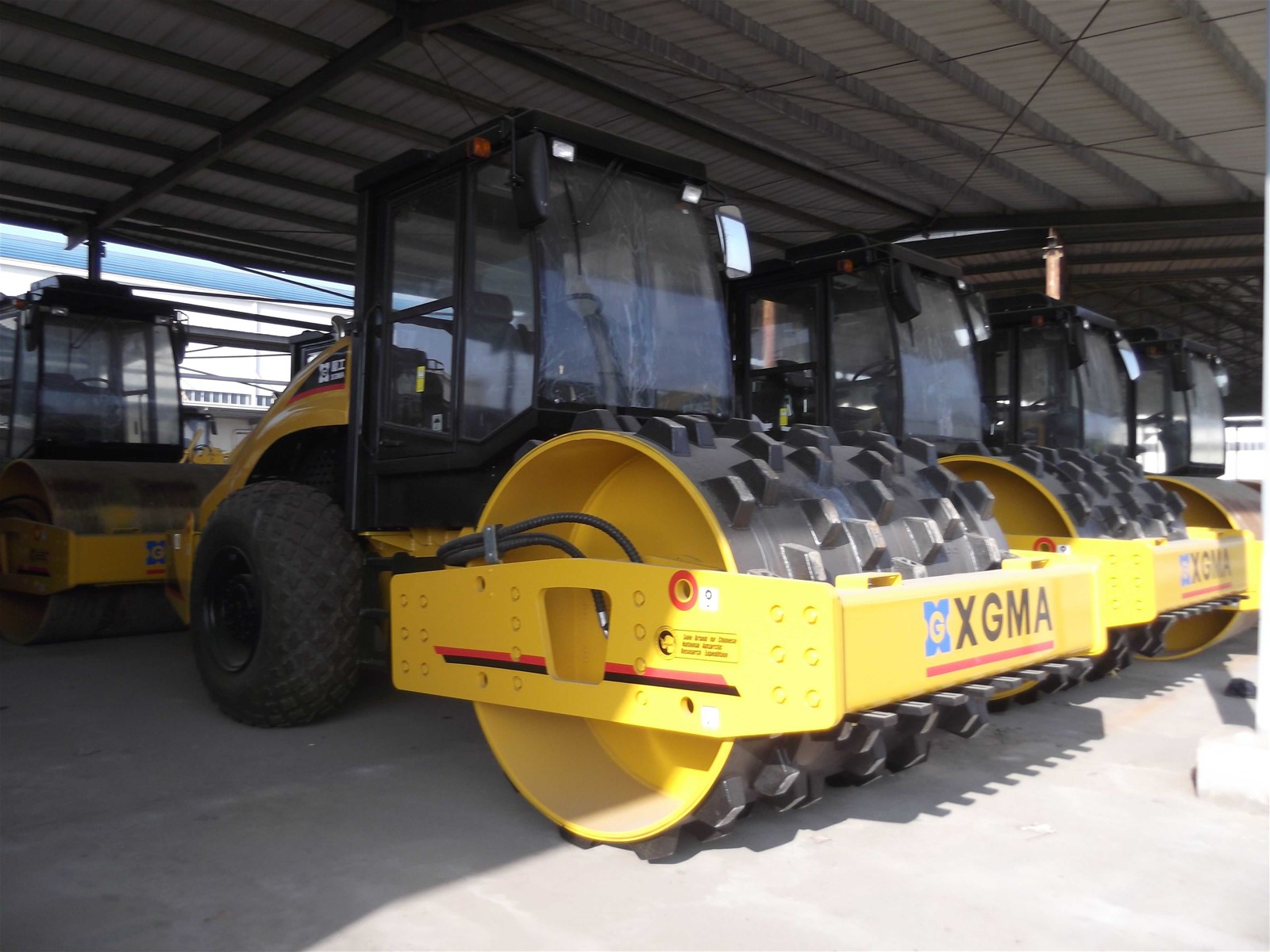

- Model Number: XG6121
- Brand Name: XGMA
- Type: Single Drum Roller
- Condition: New
Specifications
Main parts adopt products of world renowned companies.
Dual drive(front wheel and rear wheel).
Dual independent brake systems.
High vibratory force and good compacting performance, with high working efficiency.
Convenient inspection and repair.
High power reserve is suitable for working environment with high altitude.
Good vision of driving room, comfortable operations.
Equipped with the Dongfeng Cummins turbocharged diesel engine, featuring the reliable performance, environment friendly and energy-saving.
Reasonable power selection, predominant overall performance, and outstanding operation efficiency.
Hydraulic driving pump and motor are SAUER or REXROTH products, vibrating pump and motor are PERMCO or HERCULER products. Vibratory bearing imported from Sweden SKF or Germany FAG products.
Its two amplitudes accommodate to various working conditions, with the front/rear drive and the continuous travel speed control.
The cabin features the sound insulation, thermal insulation, vibration reduction, with comfort, large space, and wide vision.
Safe and reliable three-stage braking system.
Main characteristics:
|
Description |
Unit |
XG6121 |
|
|
Operating Weight |
kg |
12000 |
|
|
Front roll drum weight |
kg |
7100 |
|
|
Static Linear Load of Drum |
N/cm |
333 |
|
|
Vibration Frequency |
Hz |
30 |
|
|
Theoretical Amplitude |
mm |
1.7/0.85 |
|
|
Centrifugal Force |
Kn |
247/127 |
|
|
Min. Turning Radius |
mm |
6300 |
|
|
Max. Gradeability |
% |
50 |
|
|
Overall Dimensions(L*W*H) |
mm |
5688*2270*3200 |
|
|
Travel speed |
Gear Ⅰ |
km/h |
0-4.3 |
|
Gear Ⅱ |
km/h |
0-6.4 |
|
|
Gear Ⅲ |
km/h |
0-9.2 |
|
|
Engine |
Model(Dongfeng Cummins) |
|
6BTA5.9 |
|
Rated Power |
kw |
112 |
|
|
Rated Speed |
r/min |
2400 |
|
Option :
Air condition with cool and warm
