Automatic memo pad gluing machine AGST
| Shipping: | 30% advance payment be paid by TT , balance payment be paid before shipment |
|---|---|
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Standard export package. |
Quick Details
- Type: Gluing Machine
- Weight: 1500Kgs
- Dimension(L*W*H): 13800x1320x1500mm
- Model Number: AGST-680
- Power: 9.5KW
- Voltage: 380v/ 50hz / 3 phase
- Automatic Grade: Automatic
- Packaging Material: Metal,Wood
- Application: Machinery & Hardware
- Condition: New

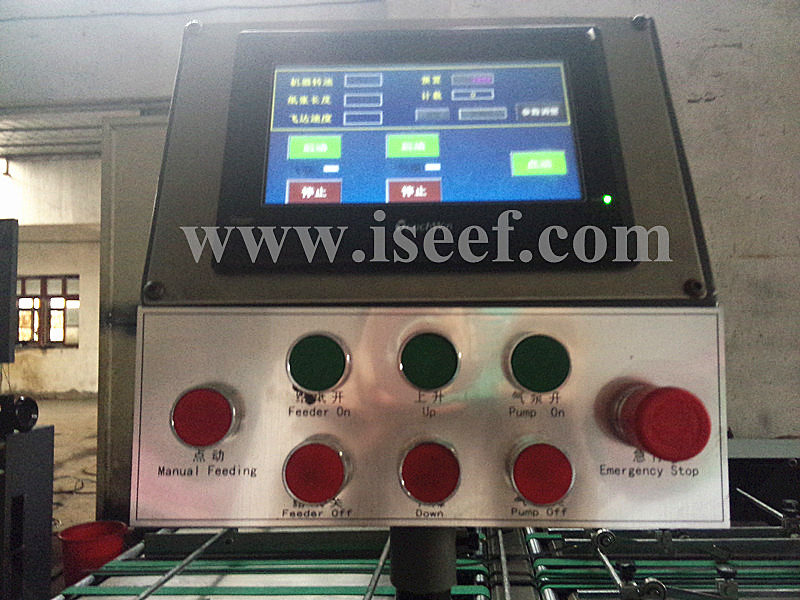

- PLC control (HMI): Automatic feeding paper system
- Rollers coating the glue: Simply for loading glue and cleaning the roller
- Rollers will be easily changed: Oven with high efficiency
Specifications
Features and usages:
Auto pad gluer is specialized in producing all kinds of notepad, business notepad, N times notepad, stickers and other adhesive to remain free to paste something essential products, it has nice outside looking, stable working, with the company of the LPM series label punching machine and YP Series book flatting machine can produce various shapes of N times notepad and any other notepads for many-time re-post purpose.
Main function:

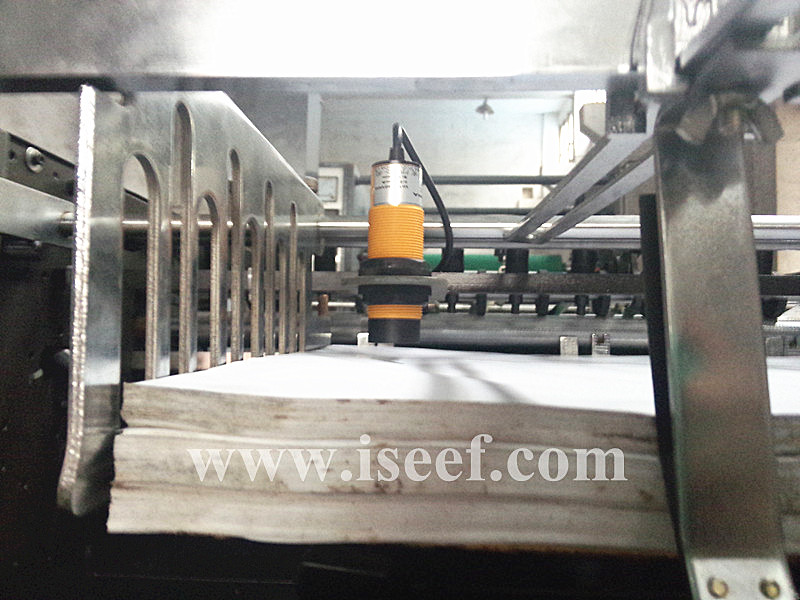

*Automatic feeding paper system.
*Rollers coating the glue.
*Simply for loading glue and cleaning the roller
*Rollers will be easily changed
*Oven with high efficiency fans, high drying efficiency, and the use of multiple temperature control system,
according to process requirements, accurate control of the temperature of the oven section.
Technical parameter:
|
Model |
|
|
Max.Paper size (W*L) |
620x680mm |
|
Min.Paper size |
paper length ＞400mm |
|
Max coating width |
600mm |
|
Speed of coating |
0-20m/min |
|
Oven temperature |
Max temperature 80℃ |
|
Heating mode |
Stainless steel heating tube |
|
Total power |
9.5KW |
|
Weight |
1500Kgs |
|
Machine dimensions |
13800x1320x1500mm |
