1fiber ftth optical fiber cable

Shipping:	FOB shenzhen
Payment Terms:	T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	1, 2000m/roll 2, wooden drum

Quick Details

Model Number: Linkindusftth
Brand Name: linkindus

Specifications

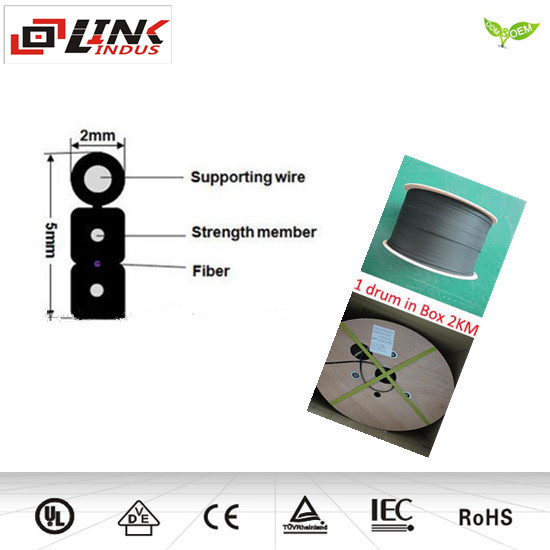

The optical fiber unit is positioned in the centre. Two steel wires are placed at the two sides.

Then the cable is completed with a black or color LSZH sheath.

·Characteristics

        · Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
          transmission property;
         · Two parallel steel wire strength members ensure good performance of crush resistance to protect the fiber;

        Single steel wire or massagers as the additional strength member ensures good performance of tensile strength
        · Simple structure, light weight and high practicability;
        · Novel flute design, easily strip and splice, simplify the installation and maintenance
        · Low smoke, zero halogen and flame retardant sheath.

·Optical Characteristics

		G.652D	G.657A	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.5 dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.45 dB/km	≤0.40 dB/km
	@1550nm	≤0.30 dB/km	≤0.30dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Technical Parameters

Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
1	(2.0±0.2)×(5.0±0.2)	22	60/120	300/1000	15/30
2	(2.0±0.2)×(5.0±0.2)	22	60/120	300/1000	15/30
4	(2.0±0.2)×(5.5±0.2)	23	60/120	300/1000	15/30
6	(2.0±0.2)×(6.0±0.2)	24	60/120	300/1000	15/30

Storage/Operating Temperature : -20℃ to + 60℃
